Power Seat Power Easy Access System Function does not Operate: Procedure

1. Use the Techstream to check if the CAN communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .

   OK

   CAN communication DTC is not output.

NG → See step   13

OK: Go to next step

1. Check that each function of the power seat operates normally by using the front power seat switch LH. Refer to OPERATION CHECK .
   RESULT



   Result	Proceed to
   Power seat function normally	A
   All power seat functions do not operate	B
   One or more power seat motors do not operate	C

B → See step   8

C → See step   9

A: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Driver Seat / Data List.
5. According to the display on the Techstream, read the Data List.
   DRIVER SEAT



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Driver Seat Buckle SW	Status of driver seat belt / ON or OFF	ON: Tongue plate engaged OFF: Tongue plate not engaged	-

NG → See step   6

OK: Go to next step

1. Replace the front power seat switch LH. Refer to DISASSEMBLY .

NEXT: Go to next step

1. Check that the power seat power easy access system operates normally when engaging and disengaging the tongue plate of the seat belt with the shift lever in P. Refer to OPERATION CHECK .

   OK

   Power seat power easy access system is normal.

NG → See step   10

OK → END (FRONT POWER SEAT SWITCH LH WAS DEFECTIVE)

1. Remove the front seat inner belt assembly LH. Refer to REMOVAL .

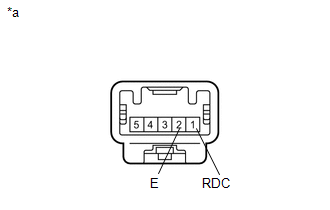

   Fig 1: Inspecting Front Seat Inner Belt Assembly LH Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (RDC) - 2 (E)	Tongue plate engaged	Below 1 Ω
   	Tongue plate not engaged	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Front Seat Inner Belt Assembly LH)

3. Reinstall the front seat inner belt assembly LH.

NG → See step   11

OK: Go to next step

1. Disconnect the Y9 front power seat switch LH connector.
2. Disconnect the Y13 front seat inner belt assembly LH connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Y9-10 (DBCL) - Y13-1 (RDC)	Always	Below 1 Ω
   Y13-2 (E) - Body ground	Always	Below 1 Ω
   Y9-10 (DBCL) - Body ground	Always	10 kΩ or higher

4. Reconnect the front seat inner belt assembly LH connector.
5. Reconnect the front power seat switch LH connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   12
