OEM System Circuits: Headlight: Notes

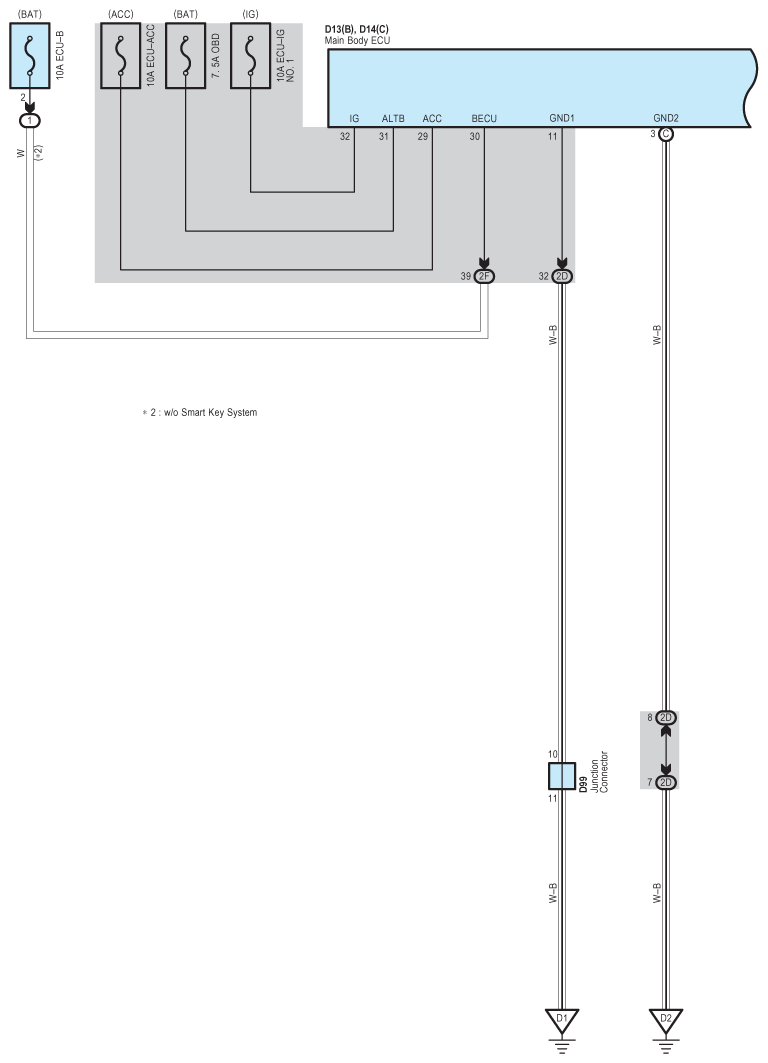

Fig 1: Headlight System Wiring Diagram (1 Of 8)

G09111481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Headlight System Wiring Diagram (2 Of 8)

G09111482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

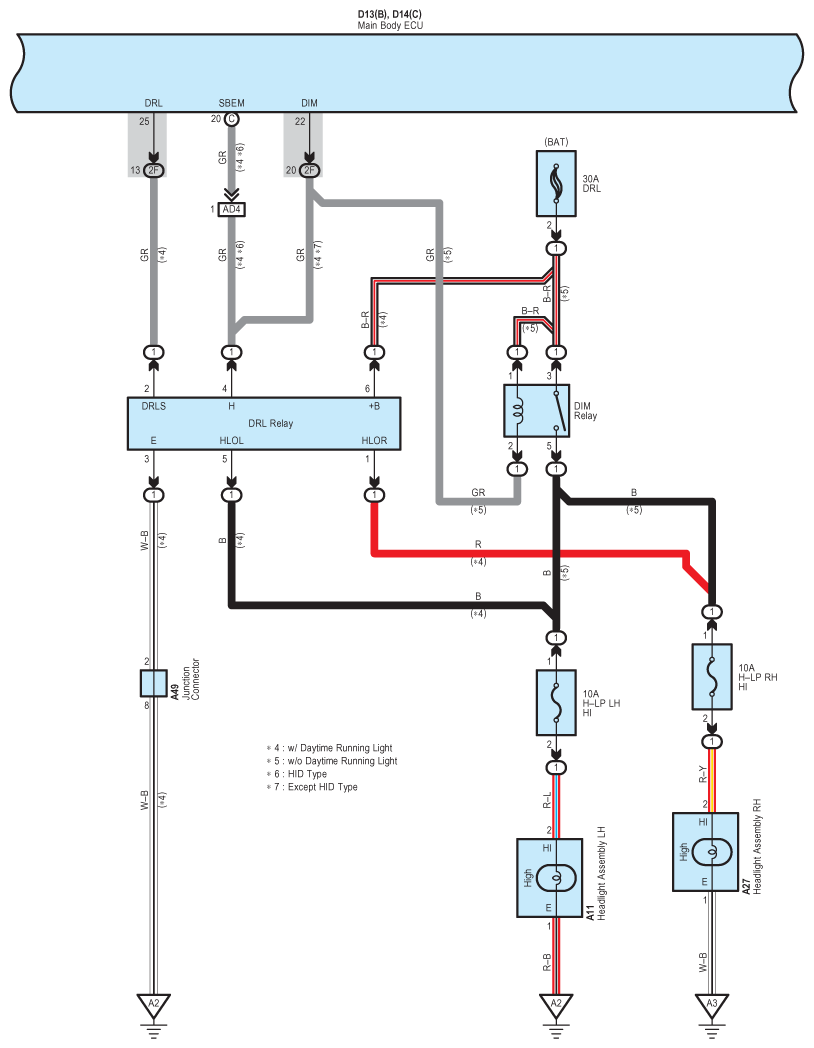

Fig 3: Headlight System Wiring Diagram (3 Of 8)

G09111483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

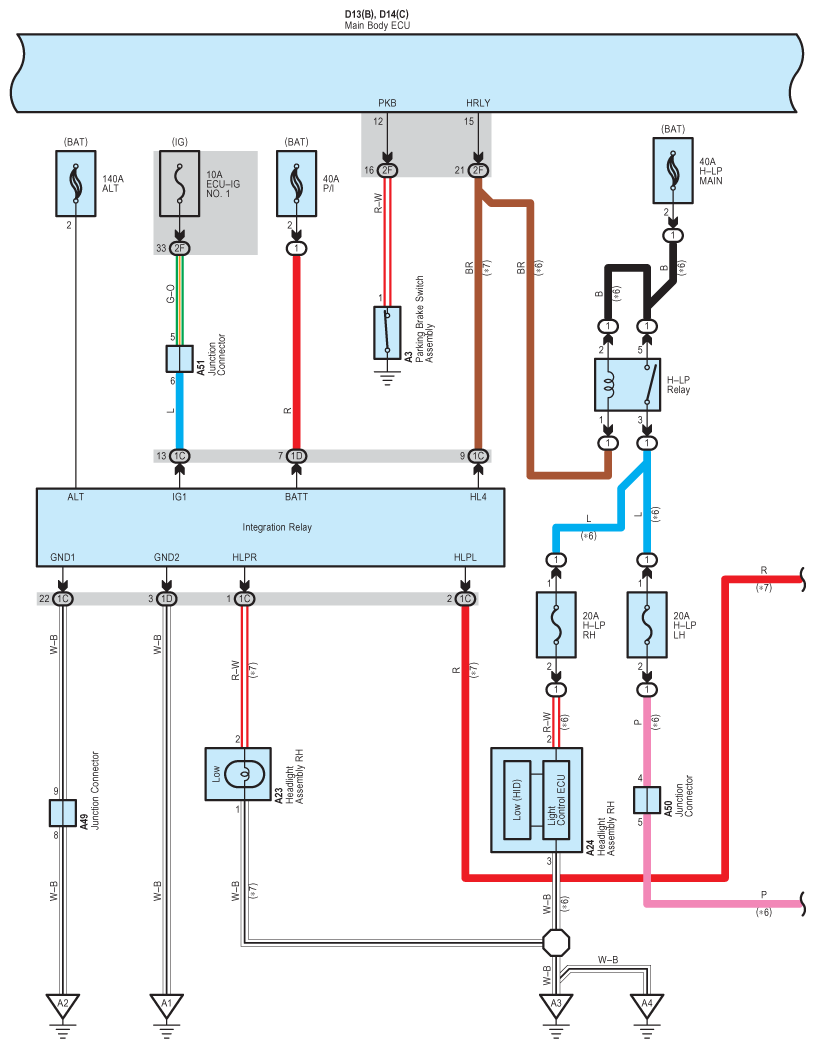

Fig 4: Headlight System Wiring Diagram (4 Of 8)

G09111484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

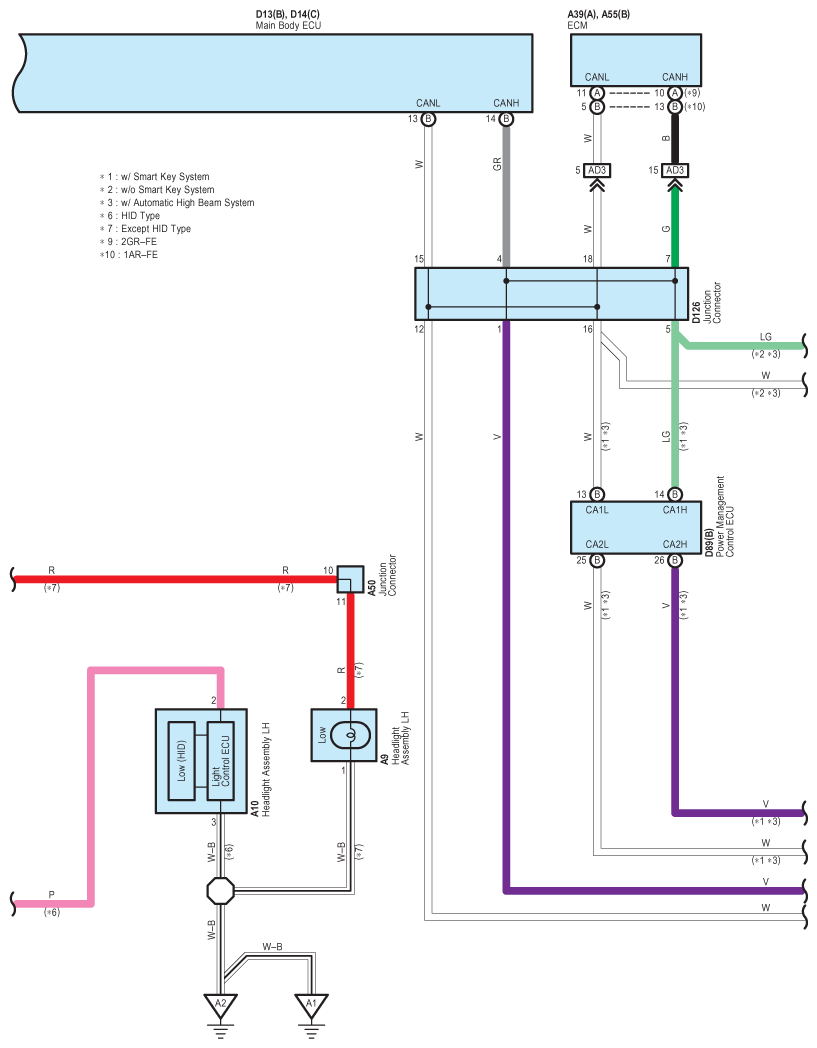

Fig 5: Headlight System Wiring Diagram (5 Of 8)

G09111485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

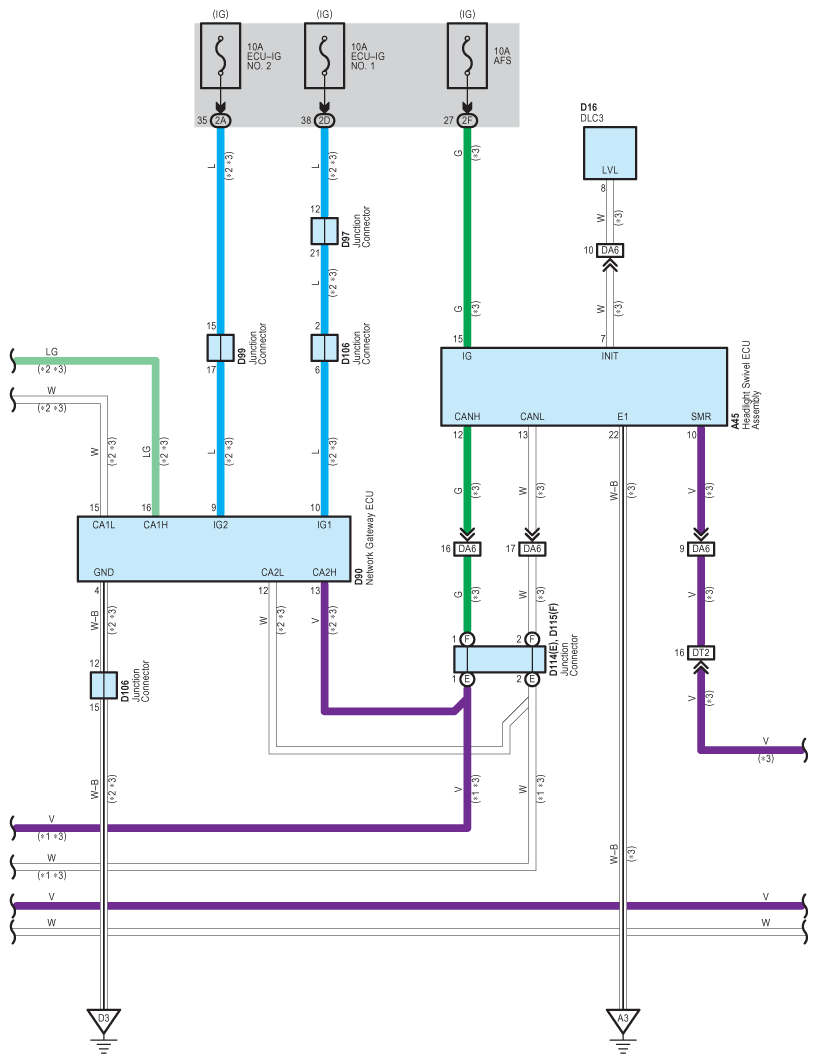

Fig 6: Headlight System Wiring Diagram (6 Of 8)

G09111486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

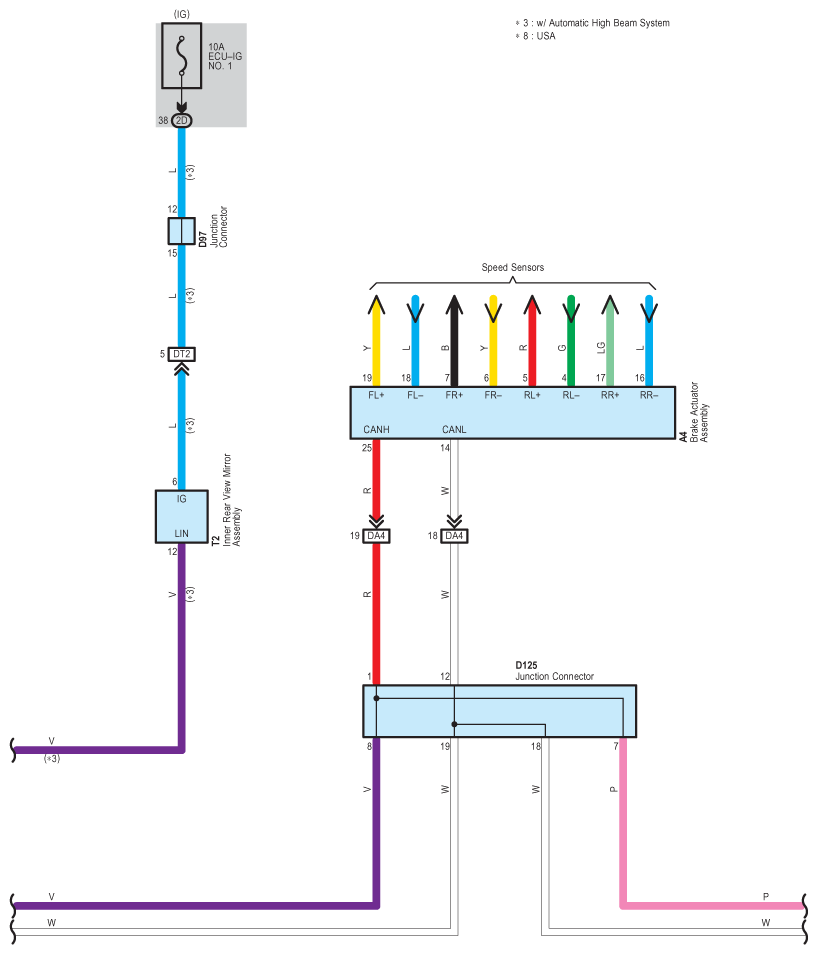

Fig 7: Headlight System Wiring Diagram (7 Of 8)

G09111487

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

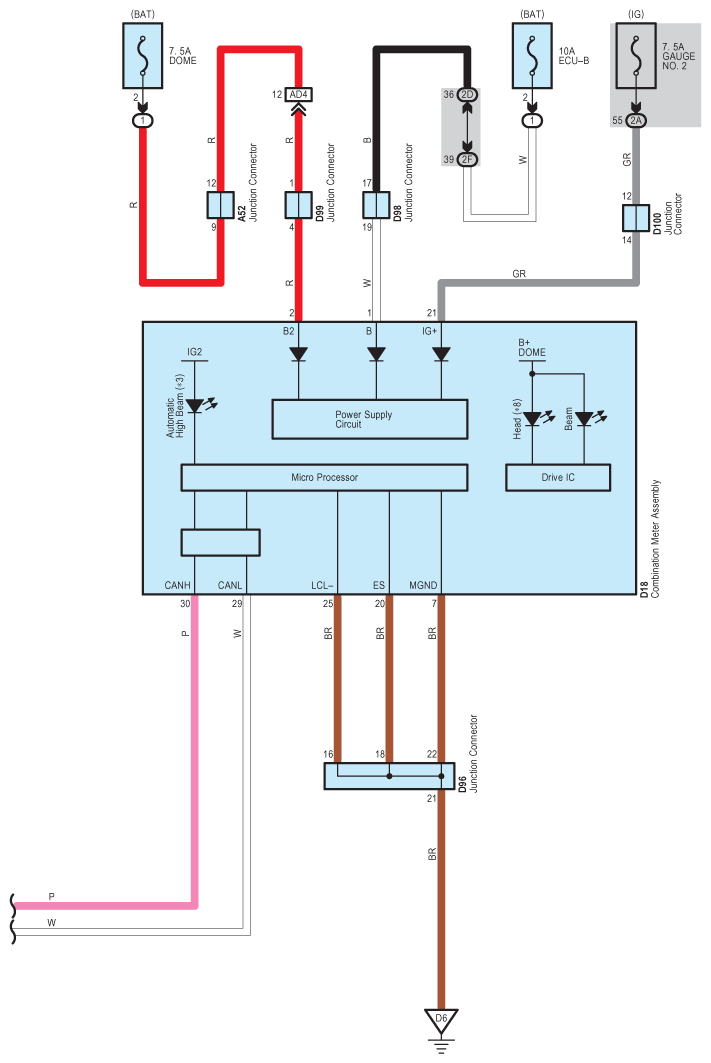

Fig 8: Headlight System Wiring Diagram (8 Of 8)

G09111488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
