Parking Assist (Back Guide Monitor): Notes

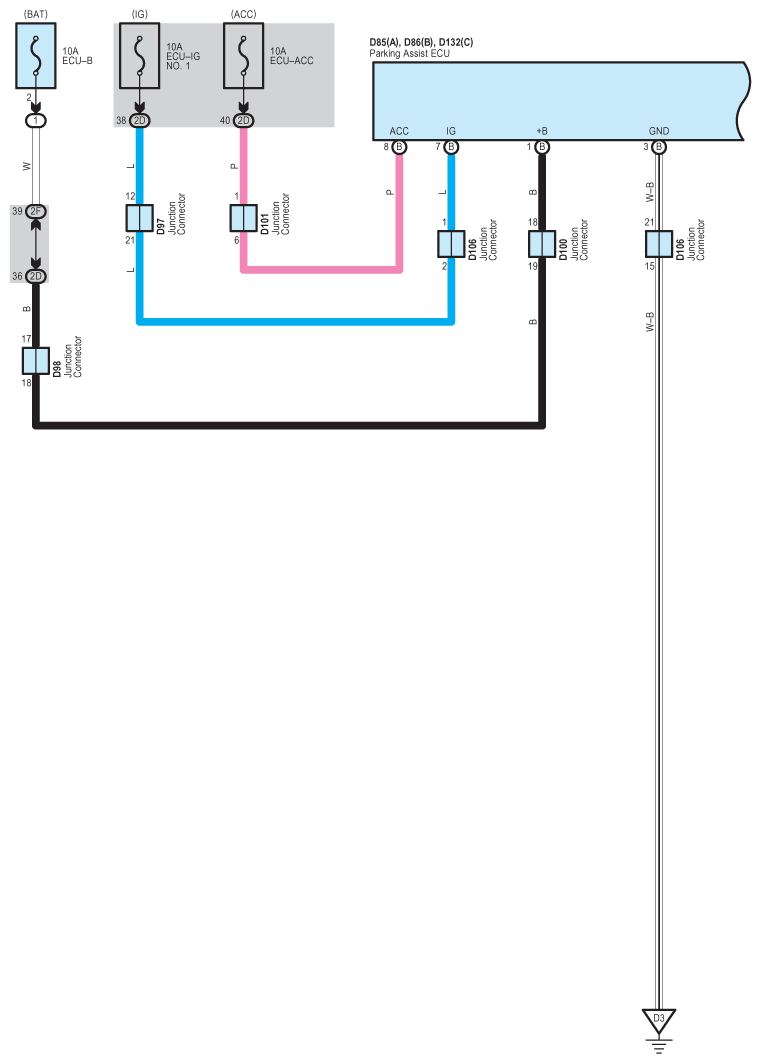

Fig 1: Parking Assist (Back Guide Monitor) System Wiring Diagram (1 Of 4)
G09111674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

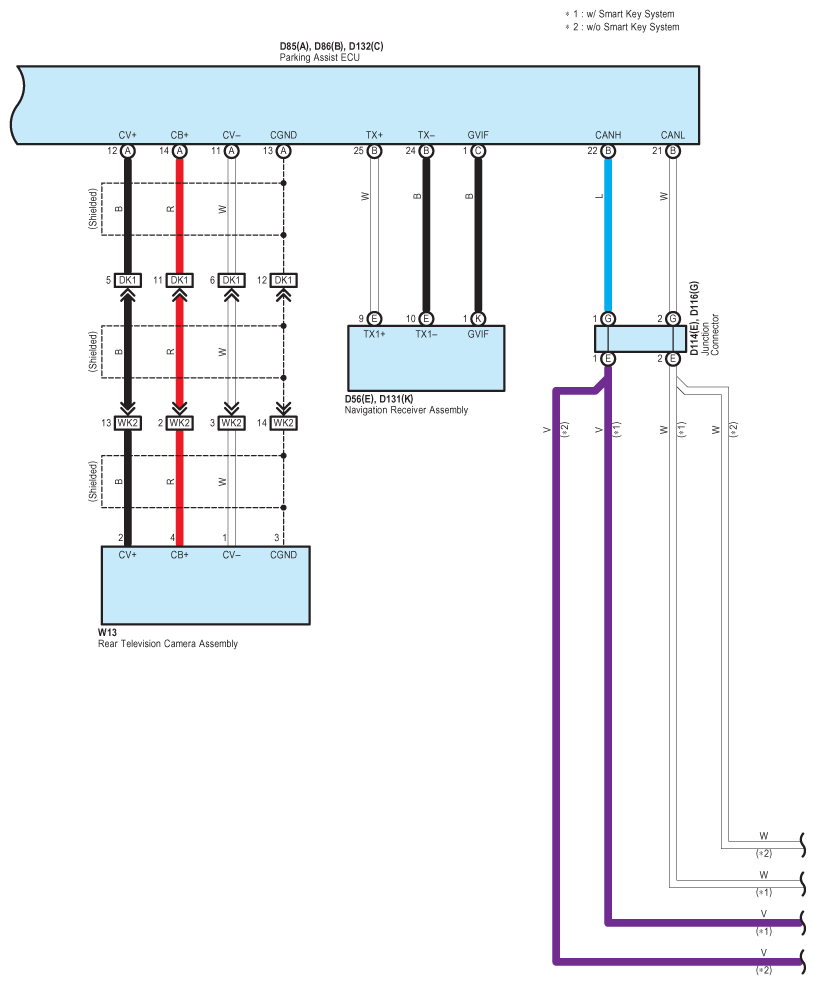

Fig 2: Parking Assist (Back Guide Monitor) System Wiring Diagram (2 Of 4)
G09111675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

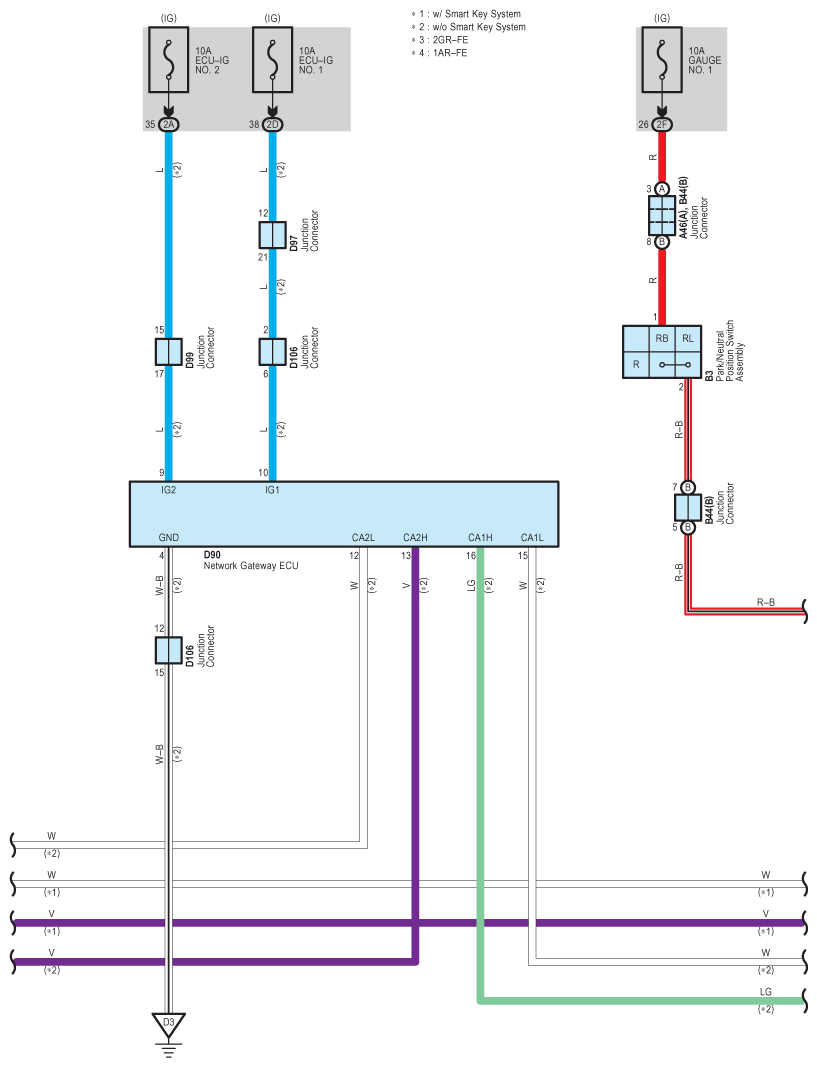

Fig 3: Parking Assist (Back Guide Monitor) System Wiring Diagram (3 Of 4)
G09111676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

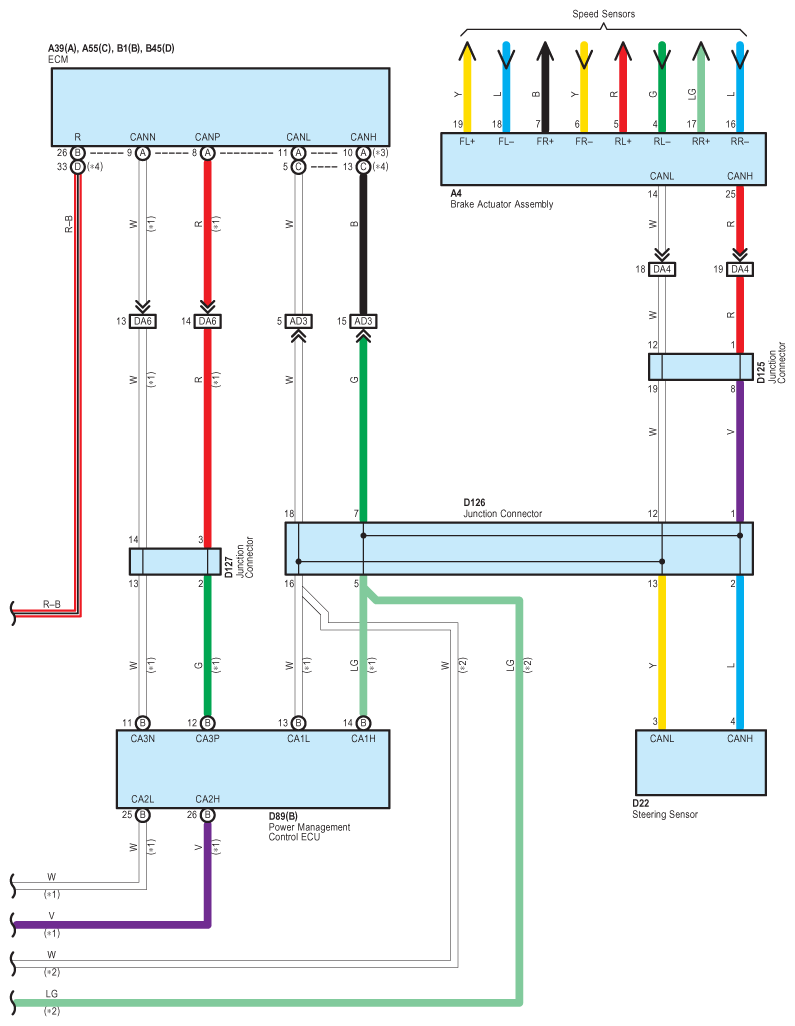

Fig 4: Parking Assist (Back Guide Monitor) System Wiring Diagram (4 Of 4)
G09111677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
