Power Back Door: Notes

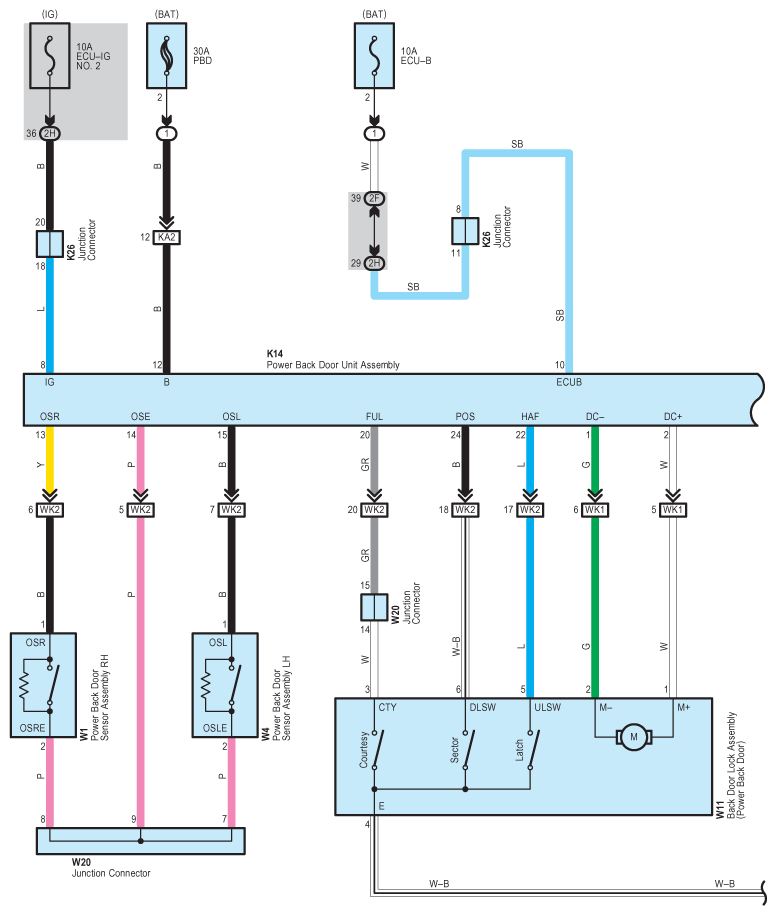

Fig 1: Power Back Door System Wiring Diagram (1 Of 5)
G09111586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

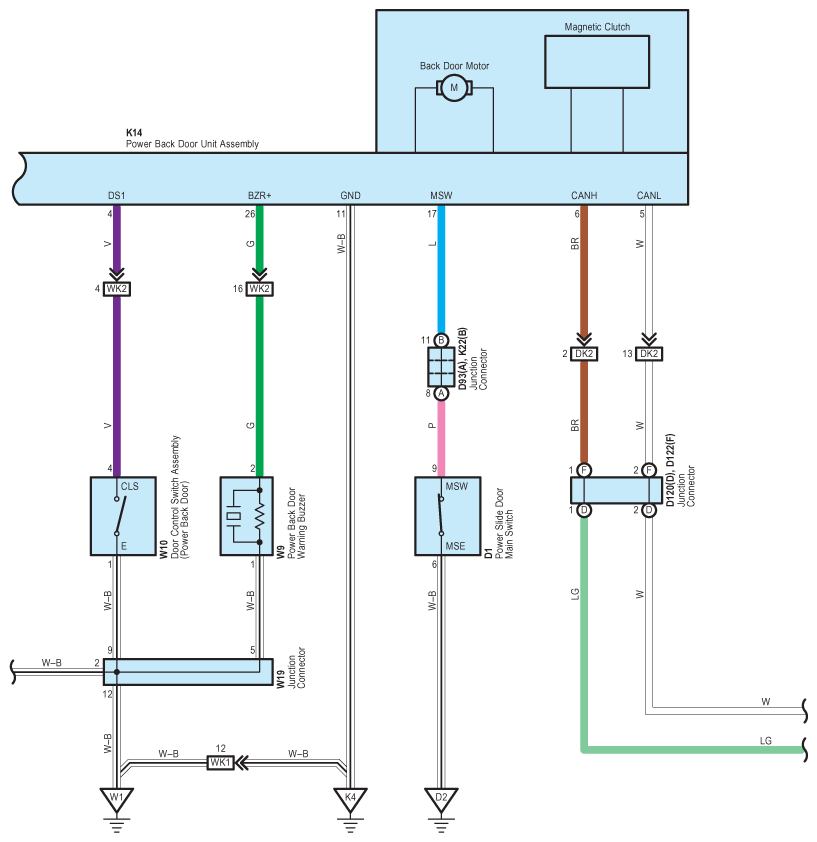

Fig 2: Power Back Door System Wiring Diagram (2 Of 5)
G09111587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

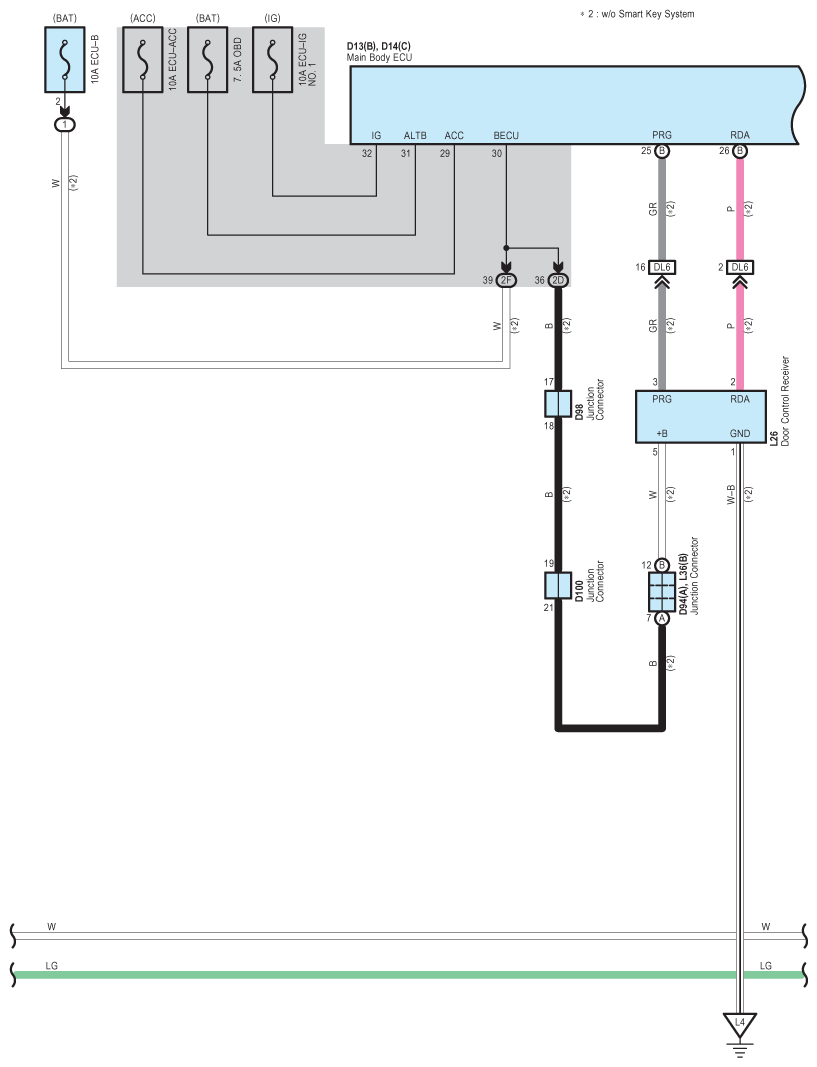

Fig 3: Power Back Door System Wiring Diagram (3 Of 5)
G09111588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

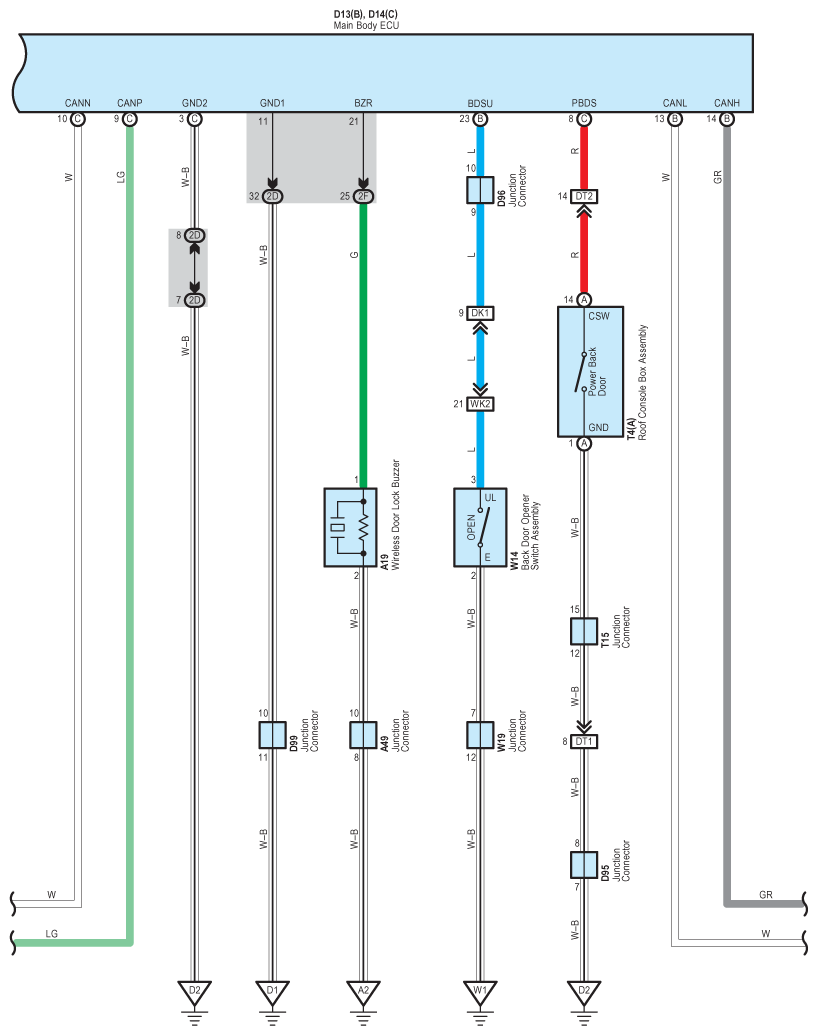

Fig 4: Power Back Door System Wiring Diagram (4 Of 5)
G09111589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

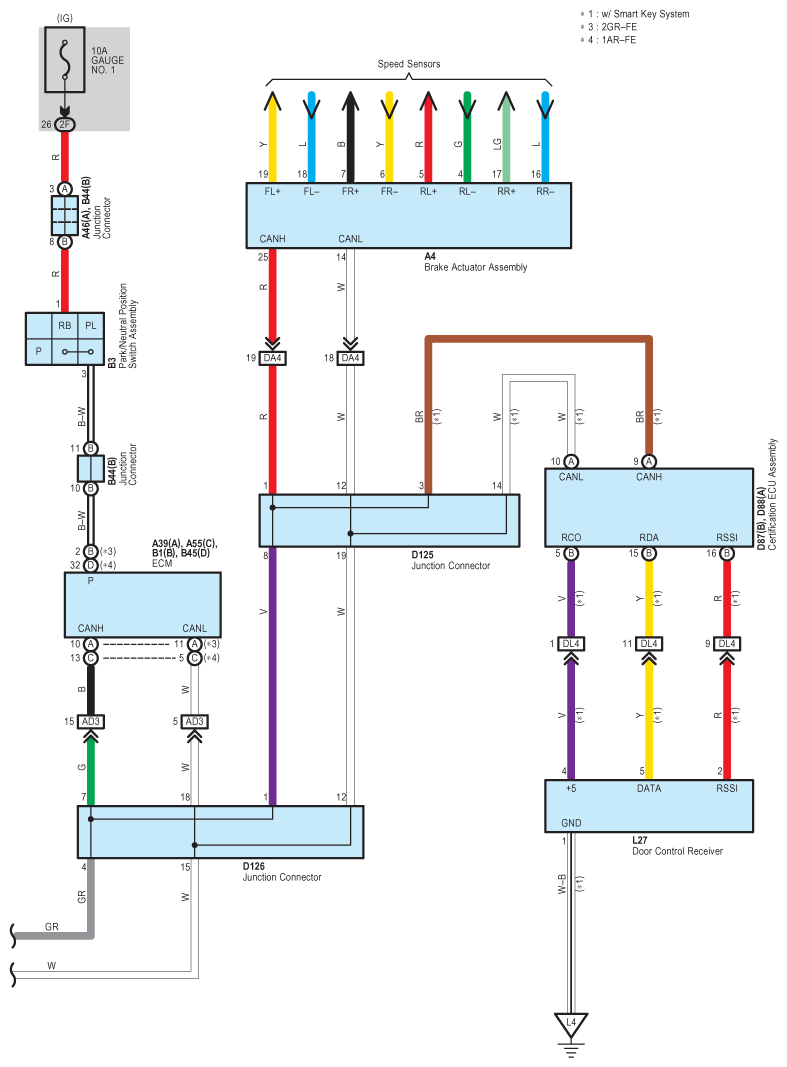

Fig 5: Power Back Door System Wiring Diagram (5 Of 5)
G09111590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
