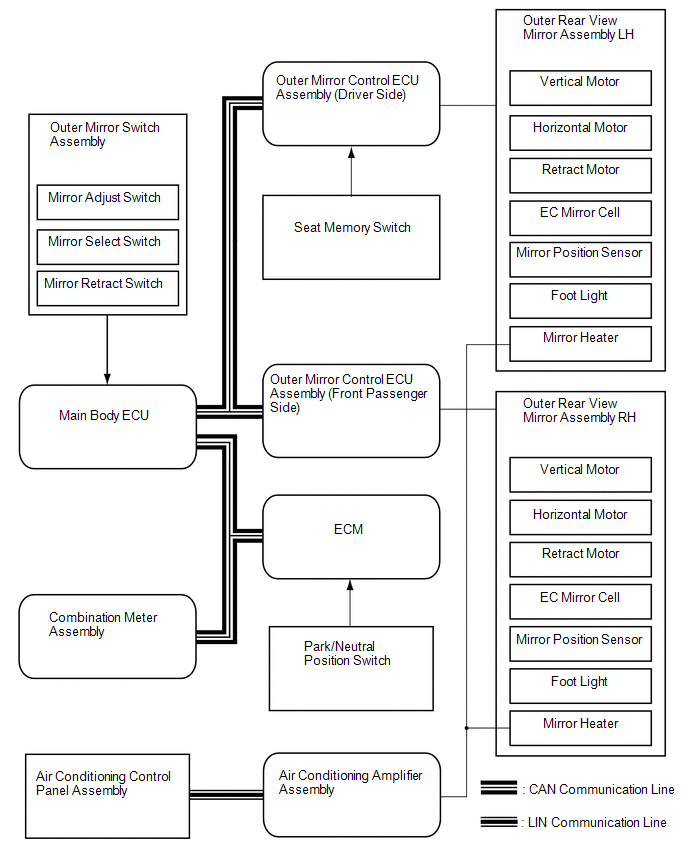

System Diagram
COMMUNICATION TABLE
| Sender | Receiver | Signal / Signal Condition | Line |
|---|---|---|---|
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Engine switch signal / on (IG) or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Engine switch signal / on (IG) or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Engine switch on (ACC) signal /on (ACC) or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Engine switch on (ACC) signal /on (ACC) or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Right outside mirror select switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Right outside mirror select switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Left outside mirror select switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Left outside mirror select switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Outside mirror rightward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Outside mirror rightward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Outside mirror leftward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Outside mirror leftward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Outside mirror upward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Outside mirror upward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Outside mirror downward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Outside mirror downward switch signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Steering wheel signal | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Steering wheel signal | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Mirror position request signal / memory request, reverse memory request, memory call request, reverse request or return request | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Mirror position request signal / memory request, reverse memory request, memory call request, reverse request or return request | CAN |
| ECM | Outer mirror control ECU assembly (driver side) | Starter signal / on or off | CAN |
| ECM | Outer mirror control ECU assembly (front passenger side) | Starter signal / on or off | CAN |
| Main Body ECU | Outer mirror control ECU assembly (driver side) | Mirror retract/return request signal / stop request, retract request or return request | CAN |
| Main Body ECU | Outer mirror control ECU assembly (front passenger side) | Mirror retract/return request signal / stop request, retract request or return request | CAN |
| Outer mirror control ECU assembly (driver side) | Main Body ECU | LH mirror state signal / Manual operation, memory operation, reverse operation or return operation | CAN |
| Outer mirror control ECU assembly (front passenger side) | Main Body ECU | RH mirror state signal / Manual operation, memory operation, reverse operation or return operation | CAN |
| Air Conditioning Control Panel Assembly | Air Conditioning Amplifier Assembly | Rear defogger Switch Signal | LIN |
| Seat memory switch (driver side) | Outer mirror control ECU assembly (driver side) | Driver side M1 switch signal | Local communication |
| Seat memory switch (driver side) | Outer mirror control ECU assembly (driver side) | Driver side M2 switch signal | Local communication |
| Seat memory switch (driver side) | Outer mirror control ECU assembly (driver side) | Driver side SET switch signal | Local communication |
