VSC Off Switch: Installation: Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC OFF switch.

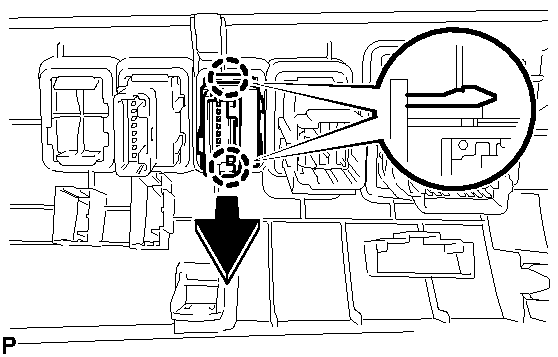

  Fig 1: Installing VSC OFF Switch Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL . Refer to INSTALLATION - Step 36
CHECK FOR WARNING LIGHT AND INDICATOR LIGHT
Refer to TEST MODE PROCEDURE
