Remote Control Mirror (w/o Seat Position Memory): Notes

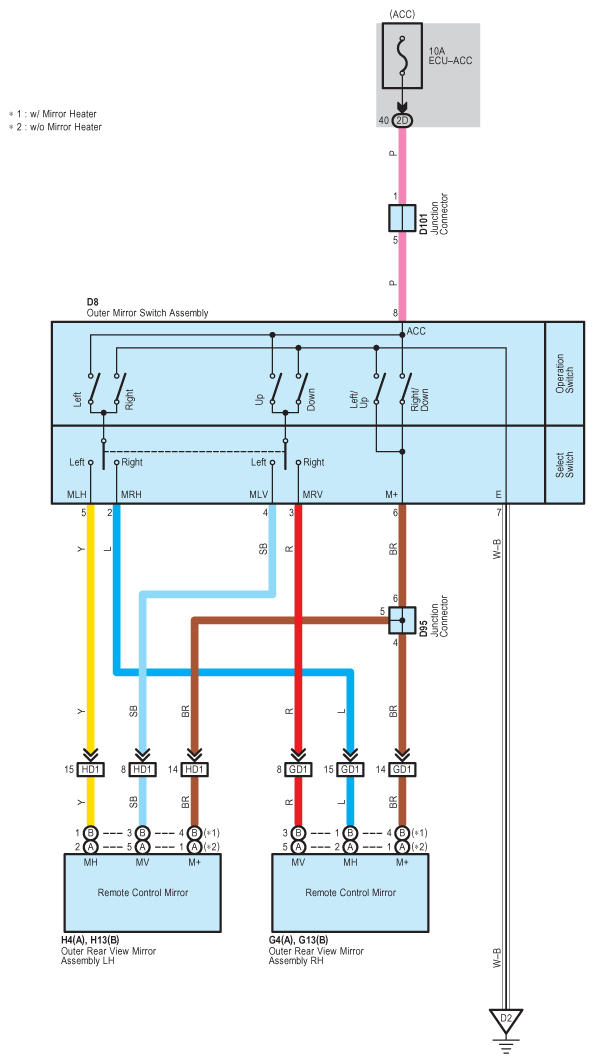

Fig 1: Remote Control Mirror (W/O Seat Position Memory) System Wiring Diagram
G09111545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
