Engine Control System (2GR-FE) (Service Information): ECM: Removal: Removal

NOTE:

Perform the Vehicle Identification Number (VIN) registration when replacing the ECM. Refer to REGISTRATION .

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL
REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 10
REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL See step 6
REMOVE AIR CLEANER AND HOSE See step 7
REMOVE ECM

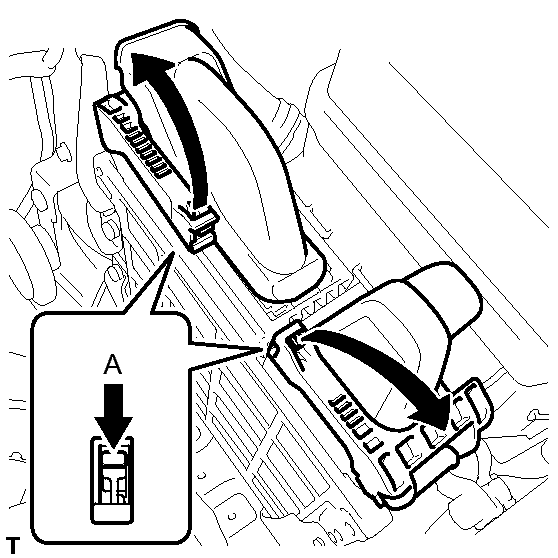

1. While slightly pushing portion A of the lever of the ECM connector, turn the lever until it makes a click sound.

  Fig 1: Removing ECM Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 ECM connectors.
  NOTE:
  After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting part of the connectors.

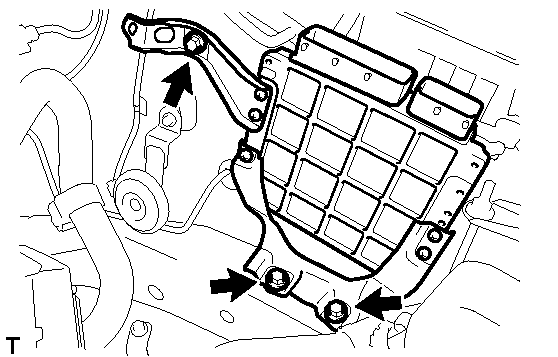

3. Remove the 3 bolts and the ECM with the brackets.

  Fig 2: Locating ECM, Brackets & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET

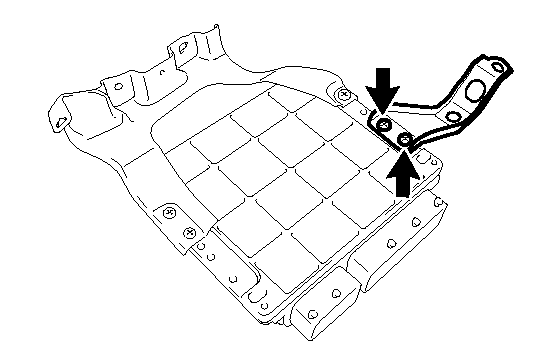

1. Remove the 2 screws and the ECM bracket.

  Fig 3: Locating ECM Bracket & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 ECM BRACKET

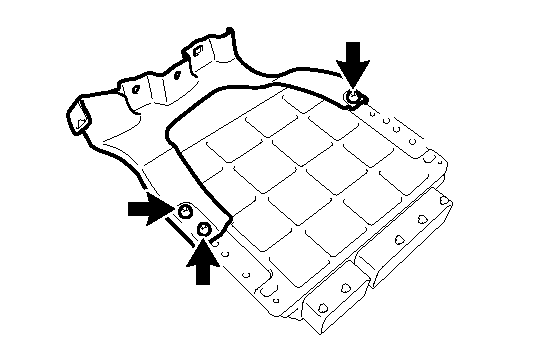

1. Remove the 3 screws and the No. 2 ECM bracket.

  Fig 4: Locating No. 2 ECM Bracket & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
