Terminals Of Ecu

  1. POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Disconnect the I6 power window regulator master switch assembly connector.

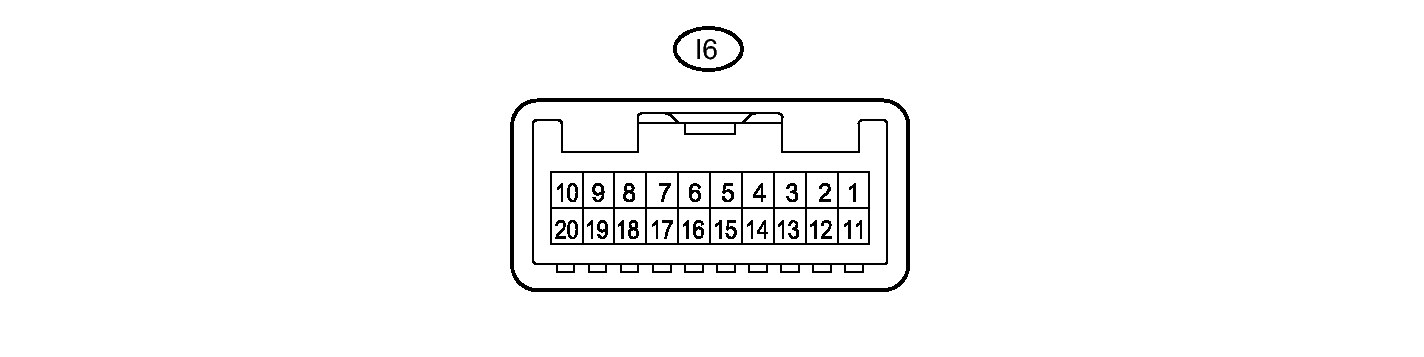

      Fig 1: I6 Power Window Regulator Master Switch Assembly Connector Terminal Identification
      GTY251553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      I6-11 (B) - I6-12 (E) GR - W-B Power supply Ignition switch ON 11 to 14 V
      I6-12 (E) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the I6 power window regulator master switch assembly connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      I6-15 (DOWN) - I6-12 (E) G - W-B Power window motor DOWN output Ignition switch ON, driver side power window regulator switch OFF 11 to 14 V
      I6-15 (DOWN) - I6-12 (E) G - W-B Power window motor DOWN output Ignition switch ON, driver door power window switch DOWN (Manual operation) Below 1 V
      I6-18 (LED) - I6-12 (E) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      I6-18 (LED) - I6-12 (E) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      I6-20 (UP) - I6-12 (E) BR - W-B Power window motor UP output Ignition switch ON, driver door power window switch OFF 11 to 14 V
      I6-20 (UP) - I6-12 (E) BR - W-B Power window motor UP output Ignition switch ON, driver door power window switch UP (Manual operation) Below 1 V

      If the result is not as specified, the power window regulator master switch assembly may have a malfunction.

  2. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)
    1. Disconnect the H8 power window regulator switch assembly (for front passenger side) connector.

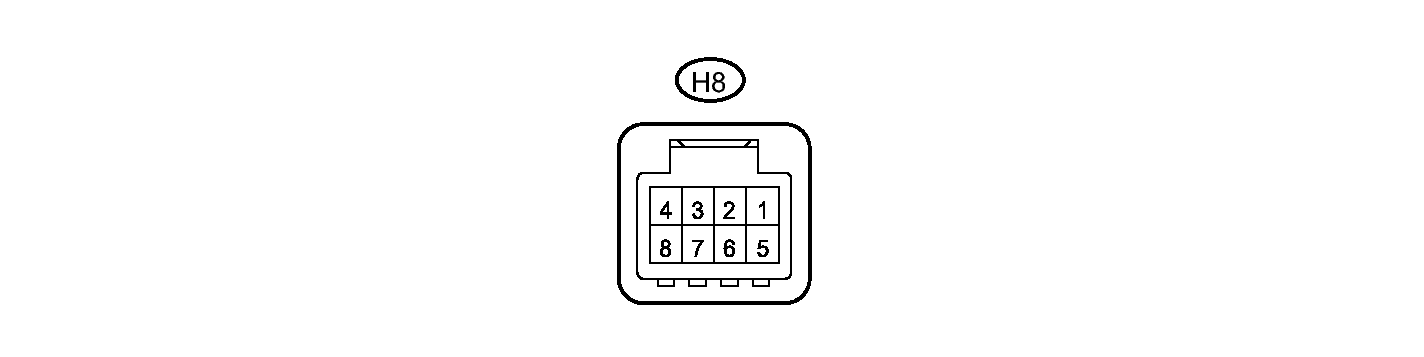

      Fig 2: H8 Power Window Regulator Switch Assembly (For Front Passenger Side) Connector Terminal Identification
      GTY251576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      H8-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the H8 power window regulator switch assembly (for front passenger side) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      H8-4 (LED) - H8-1 (GND) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      H8-4 (LED) - H8-1 (GND) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      H8-8 (AUTO) - H8-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, front passenger side power window fully open 11 to 14 V
      H8-8 (AUTO) - H8-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, front passenger side power window fully UP (AUTO UP position) Below 1 V
      H8-8 (AUTO) - H8-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, front passenger side power window fully stopped (UP) 11 to 14 V
      H8-8 (AUTO) - H8-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, front passenger side power window fully closed 11 to 14 V
      H8-8 (AUTO) - H8-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, front passenger side power window fully DOWN (AUTO DOWN position) Below 1 V
      H8-8 (AUTO) - H8-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, front passenger side power window fully stopped (DOWN) 11 to 14 V
      H8-7 (DOWN) - H8-1 (GND) G - W-B Power window motor DOWN output Ignition switch ON, power window regulator switch assembly (for front passenger side) OFF 11 to 14 V
      H8-7 (DOWN) - H8-1 (GND) G - W-B Power window motor DOWN output Ignition switch ON, power window regulator switch assembly (for front passenger side) DOWN (Manual operation) Below 1 V
      H8-6 (UP) - H8-1 (GND) Y - W-B Power window motor UP output Ignition switch ON, power window regulator switch assembly (for front passenger side) OFF 11 to 14 V
      H8-6 (UP) - H8-1 (GND) Y - W-B Power window motor UP output Ignition switch ON, power window regulator switch assembly (for front passenger side) UP (Manual operation) Below 1 V

      If the result is not as specified, the power window regulator switch assembly (for front passenger side) may have a malfunction.

  3. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear LH Side)
    1. Disconnect the K1 power window regulator switch assembly (for rear LH side) connector.

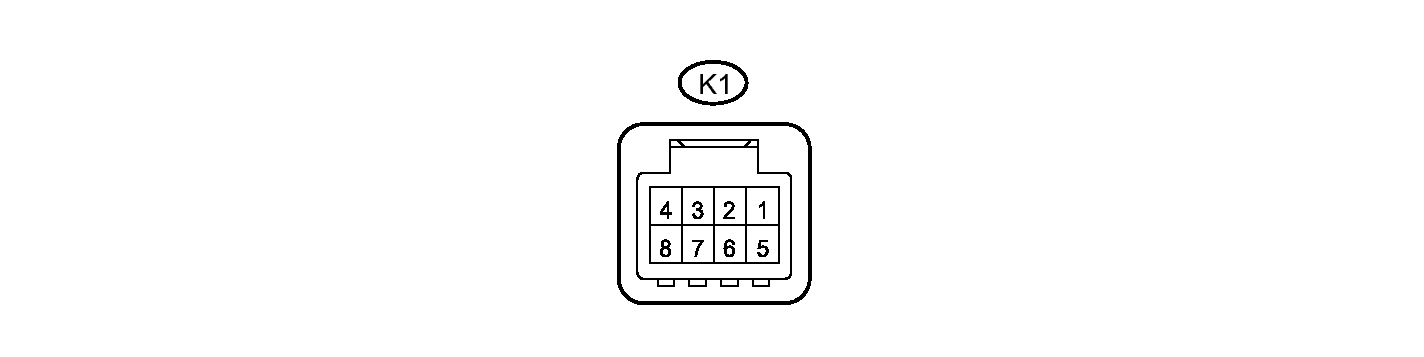

      Fig 3: K1 Power Window Regulator Switch Assembly (For Rear LH Side) Connector Terminal Identification
      GTY251577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      K1-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the K1 power window regulator switch assembly (for rear LH side) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      K1-4 (LED) - K1-1 (GND) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      K1-4 (LED) - K1-1 (GND) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      K1-8 (AUTO) - K1-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, rear LH side power window fully open 11 to 14 V
      K1-8 (AUTO) - K1-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, rear LH side power window fully UP (AUTO UP position) Below 1 V
      K1-8 (AUTO) - K1-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, rear LH side power window fully stopped (UP) 11 to 14 V
      K1-8 (AUTO) - K1-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, rear LH side power window fully closed 11 to 14 V
      K1-8 (AUTO) - K1-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, rear LH side power window fully DOWN (AUTO DOWN position) Below 1 V
      K1-8 (AUTO) - K1-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, rear LH side power window fully stopped (DOWN) 11 to 14 V
      K1-7 (DOWN) - K1-1 (GND) G - W-B Power window motor DOWN output Ignition switch ON, power window regulator switch assembly (for rear LH side) OFF 11 to 14 V
      K1-7 (DOWN) - K1-1 (GND) G - W-B Power window motor DOWN output Ignition switch ON, power window regulator switch assembly (for rear LH side) DOWN (Manual operation) Below 1 V
      K1-6 (UP) - K1-1 (GND) Y - W-B Power window motor UP output Ignition switch ON, power window regulator switch assembly (for rear LH side) OFF 11 to 14 V
      K1-6 (UP) - K1-1 (GND) Y - W-B Power window motor UP output Ignition switch ON, power window regulator switch assembly (for rear LH side) UP (Manual operation) Below 1 V

      If the result is not as specified, the power window regulator switch assembly (for rear LH side) may have a malfunction.

  4. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH Side)
    1. Disconnect the J1 power window regulator switch assembly (for rear RH side) connector.

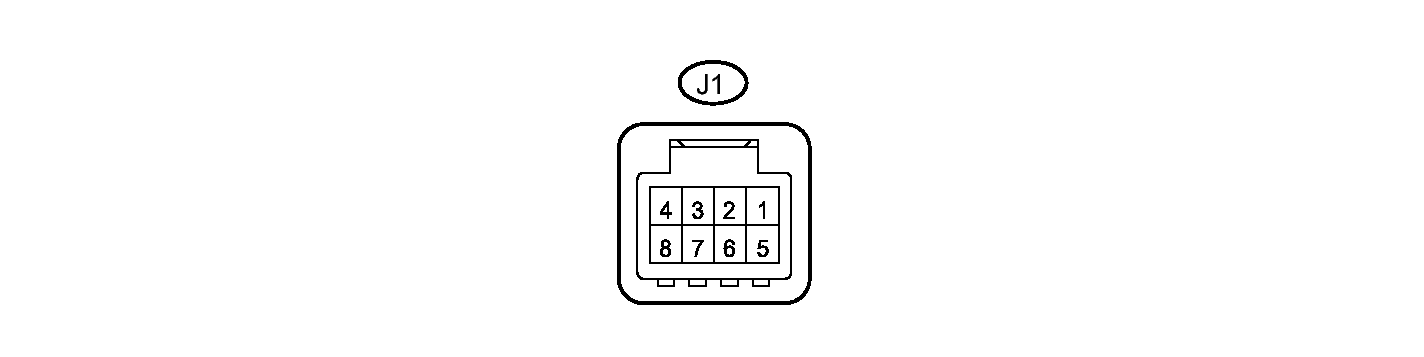

      Fig 4: J1 Power Window Regulator Switch Assembly (For Rear RH Side) Connector Terminal Identification
      GTY249111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      J1-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the J1 power window regulator switch assembly (for rear RH side) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      J1-4 (LED) - J1-1 (GND) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      J1-4 (LED) - J1-1 (GND) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      J1-8 (AUTO) - J1-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, rear RH side power window fully open 11 to 14 V
      J1-8 (AUTO) - J1-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, rear RH side power window fully open (AUTO UP position) Below 1 V
      J1-8 (AUTO) - J1-1 (GND) L - W-B Power window motor AUTO UP output Ignition switch ON, rear RH side power window fully stopped (UP) 11 to 14 V
      J1-8 (AUTO) - J1-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, rear RH side power window fully closed 11 to 14 V
      J1-8 (AUTO) - J1-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, rear RH side power window fully DOWN (AUTO DOWN position) Below 1 V
      J1-8 (AUTO) - J1-1 (GND) L - W-B Power window motor AUTO DOWN output Ignition switch ON, rear RH side power window fully stopped (DOWN) 11 to 14 V
      J1-7 (DOWN) - J1-1 (GND) G - W-B Power window motor DOWN output Ignition switch ON, power window regulator switch assembly (for rear RH side) OFF 11 to 14 V
      J1-7 (DOWN) - J1-1 (GND) G - W-B Power window motor DOWN output Ignition switch ON, power window regulator switch assembly (for rear RH side) DOWN (Manual operation) Below 1 V
      J1-6 (UP) - J1-1 (GND) Y - W-B Power window motor UP output Ignition switch ON, power window regulator switch assembly (for rear RH side) OFF 11 to 14 V
      J1-6 (UP) - J1-1 (GND) Y - W-B Power window motor UP output Ignition switch ON, power window regulator switch assembly (for rear RH side) UP (Manual operation) Below 1 V

      If the result is not as specified, the power window regulator switch assembly (for rear RH side) may have a malfunction.

  5. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side)
    1. Disconnect the I4 power window regulator motor assembly (for driver side) connector.

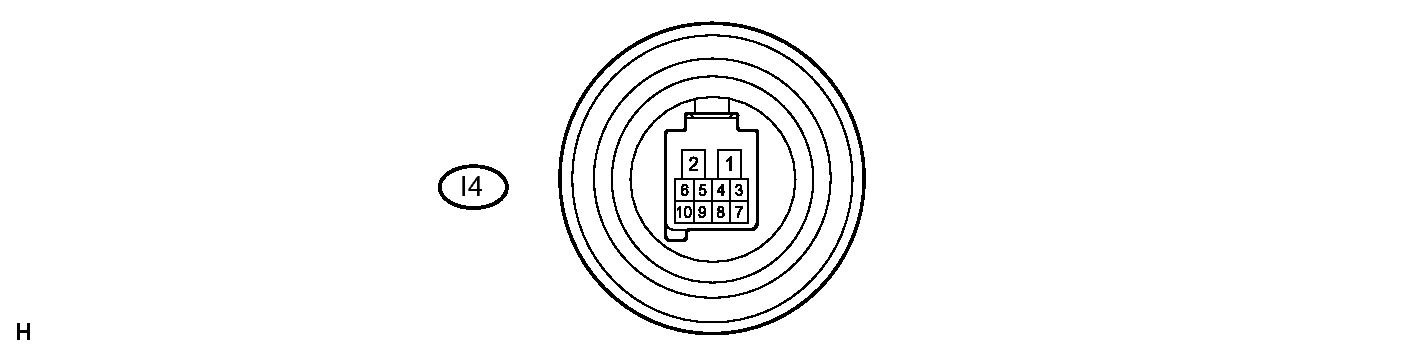

      Fig 5: I4 Power Window Regulator Motor Assembly (For Driver Side) Connector Terminal Identification
      GTY251683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      I4-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
      I4-2 (B) - Body ground P - Body ground Power supply Always 11 to 14 V

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the I4 power window regulator motor assembly (for driver side) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      I4-5 (LED) - I4-1 (GND) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      I4-5 (LED) - I4-1 (GND) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      I4-7 (DOWN) - I4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, driver side power window regulator switch OFF 11 to 14 V
      I4-7 (DOWN) - I4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, driver door power window switch DOWN (Manual operation) Below 1 V
      I4-7 (DOWN) - I4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, driver side power window fully closed 11 to 14 V
      I4-7 (DOWN) - I4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, driver side power window fully DOWN (AUTO DOWN position) Below 1 V
      I4-7 (DOWN) - I4-1 (GND) G - W-B Power window motor AUTO DOWN input Ignition switch ON, driver side power window fully stopped (DOWN) 11 to 14 V
      I4-10 (UP) - I4-1 (GND) BR - W-B Power window motor UP input Ignition switch ON, driver door power window switch OFF 11 to 14 V
      I4-10 (UP) - I4-1 (GND) BR - W-B Power window motor UP input Ignition switch ON, driver door power window switch UP (Manual operation) Below 1 V
      I4-10 (UP) - I4-1 (GND) BR - W-B Power window motor UP input Ignition switch ON, driver side power window fully open 11 to 14 V
      I4-10 (UP) - I4-1 (GND) BR - W-B Power window motor UP input Ignition switch ON, driver side power window fully UP (AUTO UP position) Below 1 V
      I4-10 (UP) - I4-1 (GND) BR - W-B Power window motor UP input Ignition switch ON, driver side power window fully stopped (UP) 11 to 14 V

      If the result is not as specified, the power window regulator motor assembly (for driver side) may have a malfunction.

  6. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side)
    1. Disconnect the H4 power window regulator motor assembly (for front passenger side) connector.

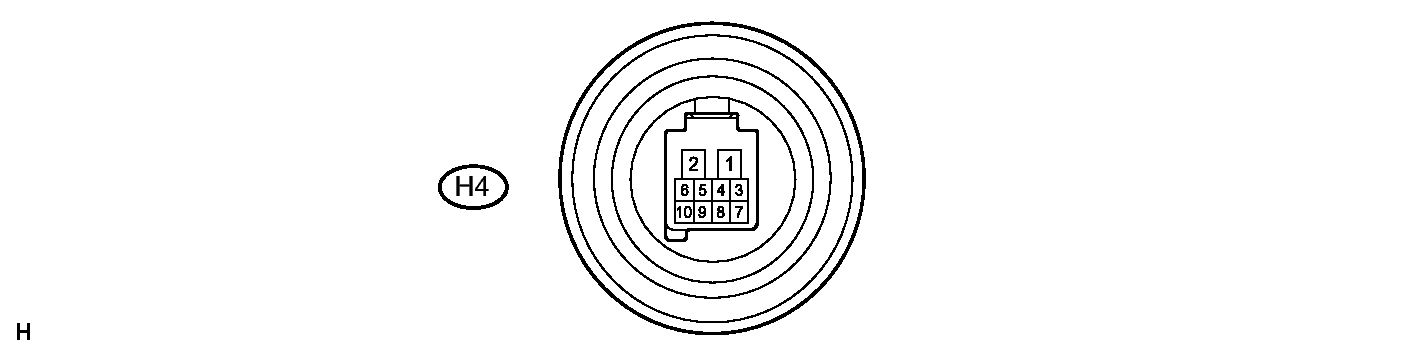

      Fig 6: H4 Power Window Regulator Motor Assembly (For Front Passenger Side) Connector Terminal Identification
      GTY251684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      H4-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
      H4-2 (B) - Body ground GR - Body ground Power supply Always 11 to 14 V

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the H4 power window regulator motor assembly (for front passenger side) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      H4-4 (AUTO) - H4-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, front passenger side power window fully open 11 to 14 V
      H4-4 (AUTO) - H4-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, front passenger side power window fully UP (AUTO UP position) Below 1 V
      H4-4 (AUTO) - H4-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, front passenger side power window fully stopped (UP) 11 to 14 V
      H4-4 (AUTO) - H4-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, front passenger side power window fully closed 11 to 14 V
      H4-4 (AUTO) - H4-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, front passenger side power window fully DOWN (AUTO DOWN position) Below 1 V
      H4-4 (AUTO) - H4-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, front passenger side power window fully stopped (DOWN) 11 to 14 V
      H4-5 (LED) - H4-1 (GND) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      H4-5 (LED) - H4-1 (GND) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      H4-7 (DOWN) - H4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, power window regulator switch assembly (for front passenger side) OFF 11 to 14 V
      H4-7 (DOWN) - H4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, power window regulator switch assembly (for front passenger side) DOWN (Manual operation) Below 1 V
      H4-7 (DOWN) - H4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, front passenger side power window fully closed 11 to 14 V
      H4-7 (DOWN) - H4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, front passenger side power window fully DOWN (AUTO DOWN position) Below 1 V
      H4-7 (DOWN) - H4-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, front passenger side power window fully stopped (DOWN) 11 to 14 V
      H4-10 (UP) - H4-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, power window regulator switch assembly (for front passenger side) OFF 11 to 14 V
      H4-10 (UP) - H4-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, power window regulator switch assembly (for front passenger side) UP (Manual operation) Below 1 V
      H4-10 (UP) - H4-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, front passenger side power window fully open 11 to 14 V
      H4-10 (UP) - H4-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, front passenger side power window fully UP (AUTO UP position) Below 1 V
      H4-10 (UP) - H4-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, front passenger side power window fully stopped (UP) 11 to 14 V

      If the result is not as specified, the power window regulator motor assembly (for front passenger side) may have a malfunction.

  7. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Side)
    1. Disconnect the K2 power window regulator motor assembly (for rear LH side) connector.
      Fig 7: K2 Power Window Regulator Motor Assembly (For Rear LH Side) Connector Terminal Identification
      GTY251685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      K2-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
      K2-2 (B) - Body ground GR - Body ground Power supply Always 11 to 14 V

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the K2 power window regulator motor assembly (for rear LH side) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      K2-4 (AUTO) - K2-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, rear LH side power window fully open 11 to 14 V
      K2-4 (AUTO) - K2-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, rear LH side power window fully UP (AUTO UP position) Below 1 V
      K2-4 (AUTO) - K2-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, rear LH side power window fully stopped (UP) 11 to 14 V
      K2-4 (AUTO) - K2-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, rear LH side power window fully closed 11 to 14 V
      K2-4 (AUTO) - K2-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, rear LH side power window fully DOWN (AUTO DOWN position) Below 1 V
      K2-4 (AUTO) - K2-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, rear LH side power window fully stopped (DOWN) 11 to 14 V
      K2-5 (LED) - K2-1 (GND) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      K2-5 (LED) - K2-1 (GND) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      K2-7 (DOWN) - K2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, power window regulator switch assembly (for rear LH side) OFF 11 to 14 V
      K2-7 (DOWN) - K2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, power window regulator switch assembly (for rear LH side) DOWN (Manual operation) Below 1 V
      K2-7 (DOWN) - K2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, rear LH side power window fully closed 11 to 14 V
      K2-7 (DOWN) - K2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, rear LH side power window fully DOWN (AUTO DOWN position) Below 1 V
      K2-7 (DOWN) - K2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, rear LH side power window fully stopped (DOWN) 11 to 14 V
      K2-10 (UP) - K2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, power window regulator switch assembly (for rear LH side) OFF 11 to 14 V
      K2-10 (UP) - K2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, power window regulator switch assembly (for rear LH side) UP (Manual operation) Below 1 V
      K2-10 (UP) - K2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, rear LH side power window fully open 11 to 14 V
      K2-10 (UP) - K2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, rear LH side power window fully UP (AUTO UP position) Below 1 V
      K2-10 (UP) - K2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, rear LH side power window fully stopped (UP) 11 to 14 V

      If the result is not as specified, the power window regulator motor assembly (for rear LH side) may have a malfunction.

  8. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Side)
    1. Disconnect the J2 power window regulator motor assembly (for rear RH side) connector.
      Fig 8: J2 Power Window Regulator Motor Assembly (For Rear RH Side) Connector Terminal Identification
      GTY249175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      J2-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
      J2-2 (B) - Body ground Y - Body ground Power supply Always 11 to 14 V

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the K2 power window regulator motor assembly (for rear RH side) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      J2-4 (AUTO) - J2-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, rear RH side power window fully open 11 to 14 V
      J2-4 (AUTO) - J2-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, rear RH side power window fully open (AUTO UP position) Below 1 V
      J2-4 (AUTO) - J2-1 (GND) L - W-B Power window motor AUTO UP input Ignition switch ON, rear RH side power window fully stopped (UP) 11 to 14 V
      J2-4 (AUTO) - J2-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, rear RH side power window fully closed 11 to 14 V
      J2-4 (AUTO) - J2-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, rear RH side power window fully DOWN (AUTO DOWN position) Below 1 V
      J2-4 (AUTO) - J2-1 (GND) L - W-B Power window motor AUTO DOWN input Ignition switch ON, rear RH side power window fully stopped (DOWN) 11 to 14 V
      J2-5 (LED) - J2-1 (GND) R - W-B LED illumination signal Ignition switch ON 11 to 14 V
      J2-5 (LED) - J2-1 (GND) R - W-B LED illumination signal Approximately 45 seconds after ignition switch turned off Below 1 V
      J2-7 (DOWN) - J2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, power window regulator switch assembly (for rear RH side) OFF 11 to 14 V
      J2-7 (DOWN) - J2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, power window regulator switch assembly (for rear RH side) DOWN (Manual operation) Below 1 V
      J2-7 (DOWN) - J2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, rear RH side power window fully closed 11 to 14 V
      J2-7 (DOWN) - J2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, rear RH side power window fully DOWN (AUTO DOWN position) Below 1 V
      J2-7 (DOWN) - J2-1 (GND) G - W-B Power window motor DOWN input Ignition switch ON, rear RH side power window fully stopped (DOWN) 11 to 14 V
      J2-10 (UP) - J2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, power window regulator switch assembly (for rear RH side) OFF 11 to 14 V
      J2-10 (UP) - J2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, power window regulator switch assembly (for rear RH side) UP (Manual operation) Below 1 V
      J2-10 (UP) - J2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, rear RH side power window fully open 11 to 14 V
      J2-10 (UP) - J2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, rear RH side power window fully UP (AUTO UP position) Below 1 V
      J2-10 (UP) - J2-1 (GND) Y - W-B Power window motor UP input Ignition switch ON, rear RH side power window fully stopped (UP) 11 to 14 V

      If the result is not as specified, the power window regulator motor assembly (for rear RH side) may have a malfunction.

  9. CHECK MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
    1. Disconnect the 2C and 2F main body ECU (driver side junction block assembly) connectors.

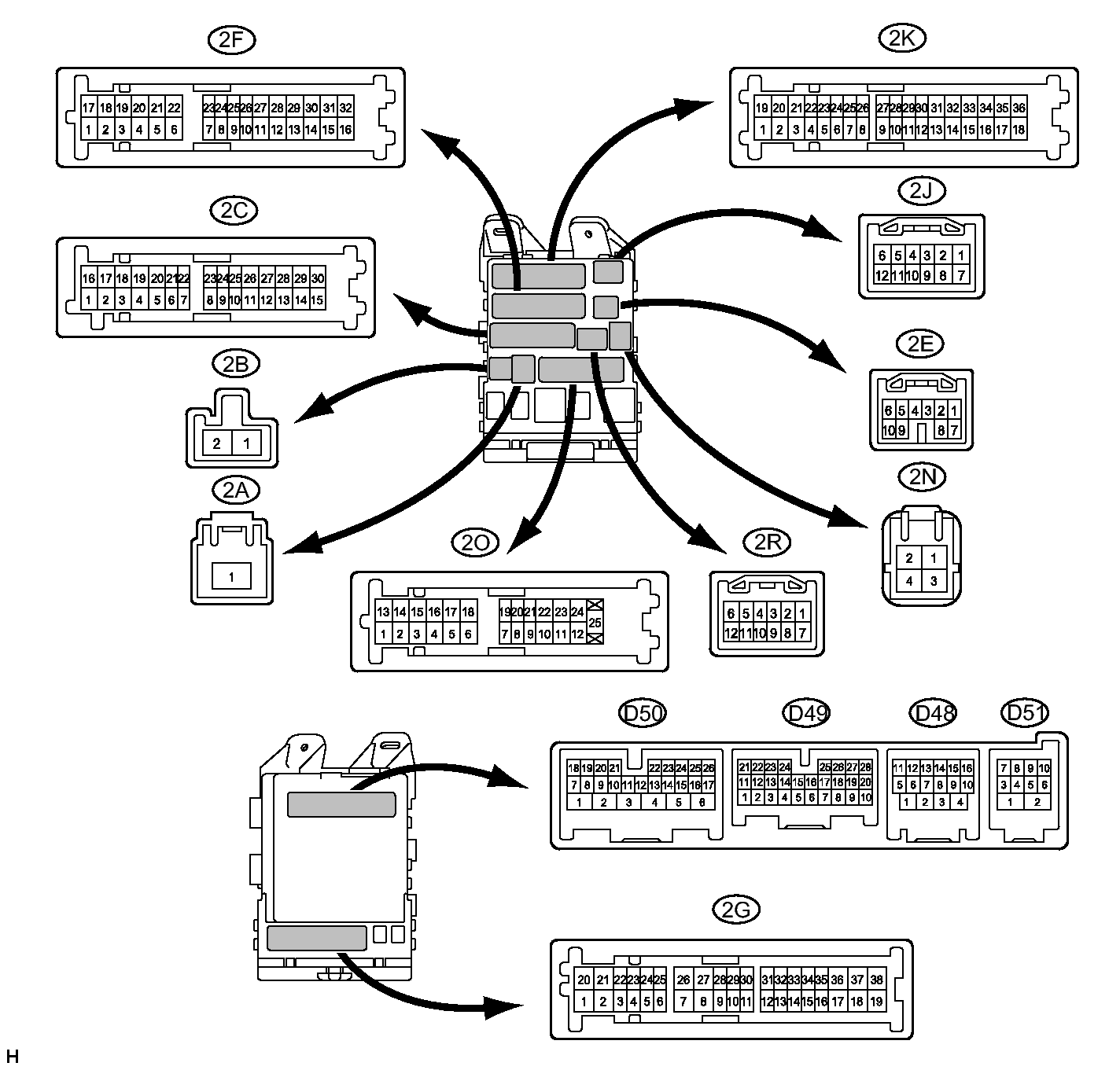

      Fig 9: Main Body ECU (Driver Side Junction Block Assembly) Connector Terminal Identification
      GTY251688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connectors disconnected.

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      2C-24 (BECU) - Body ground L - Body ground Battery power supply Always 11 to 14 V
      2C-30 (ALTB) - Body ground BR - Body ground Battery power supply Always 11 to 14 V
      2F-16 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction in the wire harness.

    3. Reconnect the 2C and 2F main body ECU (driver side junction block assembly) connectors.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      D50-24 (DCTY) - Body ground V - Body ground Driver side door courtesy switch input Driver side door open Below 1 V
      D50-24 (DCTY) - Body ground V - Body ground Driver side door courtesy switch input Driver side door closed Pulse generation
      D49-21 (PCTY) - Body ground V - Body ground Front passenger side door courtesy switch input Front passenger side door open Below 1 V
      D49-21 (PCTY) - Body ground V - Body ground Front passenger side door courtesy switch input Front passenger side door close Pulse generation

      If the result is not as specified, the main body ECU (driver side junction block assembly) may have a malfunction.

scientia non olet · About LEMON Manuals
