Active Control Engine Mount: Installation: Installation

  1. INSTALL FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
    1. Install the front engine mounting insulator assembly with the 3 nuts.

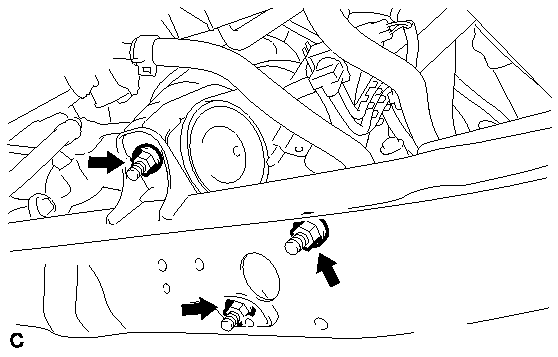

      Fig 1: Locating Front Engine Mounting Insulator Assembly Fasteners
      GTY251337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

    2. Connect the duty vacuum switching valve connector and clamp.

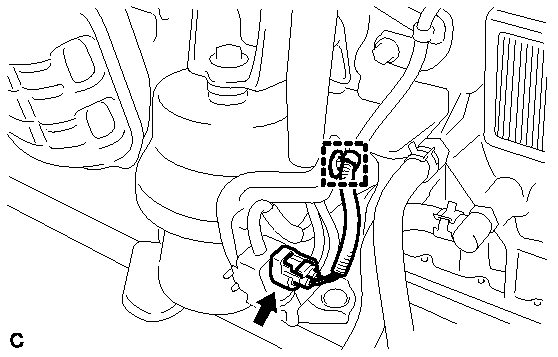

      Fig 2: Locating Duty Vacuum Switching Valve Connector
      GTY250642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSVERSE ENGINE MOUNTING BRACKET
    1. Install the transverse engine mounting bracket with the 4 bolts.

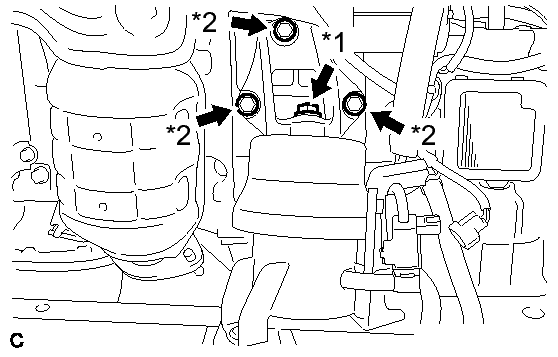

      Fig 3: Locating Transverse Engine Mounting Bracket With Bolts
      GTY251336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Bolt A
      *2 Bolt B

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

      for Bolt A

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

      for Bolt B

  3. INSTALL RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
    1. Install the radiator assembly and fan assembly with motor. Refer to INSTALLATION .
