Camshaft Oil Control Valve: Installation: Installation

  1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
    1. Apply a light coat of engine oil to 4 new O-rings and install them to the 4 camshaft timing oil control valve assemblies.

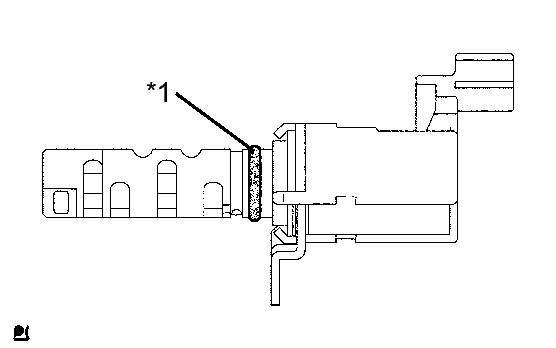

      Fig 1: Identifying Oil Control Valve O-Ring
      GTY251056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 New O-ring
    2. Install the 4 oil control valves with the 4 bolts.

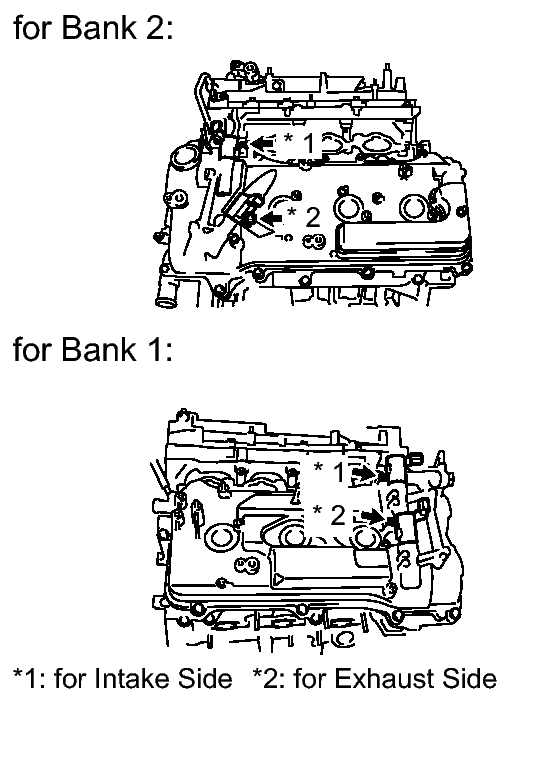

      Fig 2: Locating Oil Control Valves Bolts
      GTY251191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Make sure that each O-ring is not cracked or does not jump out of position during installation.

    3. Connect the 4 oil control valve connectors.
    4. Install the bolt and connect the wire harness clamp to install the engine wire.

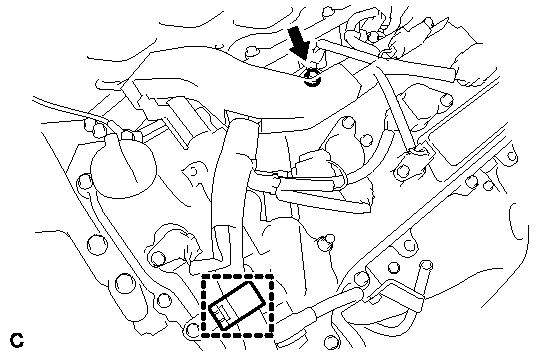

      Fig 3: Locating Wire Harness Clamp Bolt
      GTY248692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 14 N*m (138 kgf*cm, 10 ft.*lbf)

  2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY  . Refer to INSTALLATION - Step 5
  3. INSTALL AIR CLEANER CAP WITH HOSE  See step  2
  4. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 5
  5. INSPECT FOR ENGINE COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  6. INSPECT FOR OIL LEAK
    1. Start the engine, and check that there are no oil leaks.
  7. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 101
  8. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 102
  9. INSTALL COWL TOP PANEL OUTER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 12
  10. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Install the windshield wiper motor and link assembly. Refer to INSTALLATION .
  11. INSTALL NO. 2 ENGINE UNDER COVER
  12. INSTALL NO. 1 ENGINE UNDER COVER
