Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE NO. 1 ENGINE UNDER COVER
  2. REMOVE NO. 2 ENGINE UNDER COVER
  3. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 4
  4. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 18
  5. REMOVE AIR CLEANER CAP WITH HOSE  See step  5
  6. REMOVE AIR CLEANER CASE  . Refer to REMOVAL - Step 21
  7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

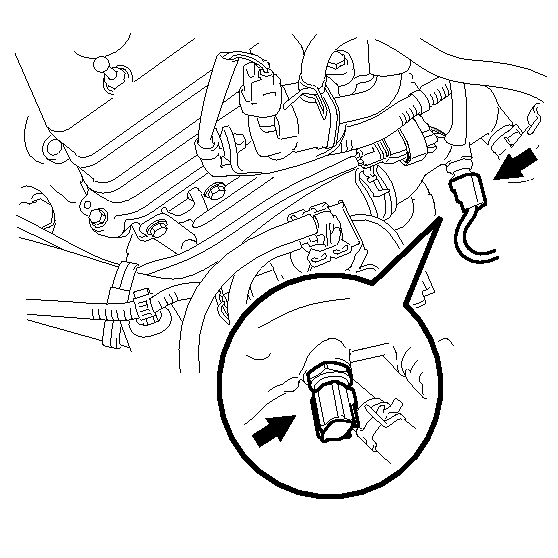

      Fig 1: Locating Engine Coolant Temperature Sensor
      GTY250942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor and gasket.
