ECM (for Hatchback): Removal: Removal

REMOVE WINDSHIELD WIPER MOTOR AND LINK
Refer to REMOVAL
REMOVE FRONT NO. 1 VENTILATOR SEAL . Refer to REMOVAL - Step 9
REMOVE FRONT AIR SHUTTER SEAL RH . Refer to REMOVAL - Step 10
REMOVE INNER COWL TOP TO COWL BRACE . Refer to REMOVAL - Step 11
REMOVE OUTER COWL TOP PANEL . Refer to REMOVAL - Step 12
REMOVE ECM
1. Pull up the lever to loosen the lock and disconnect the 2 connectors from the ECM.

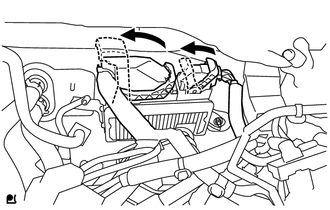

  Fig 1: Identifying ECM Connector Levers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  If there are is any foreign matter such as mud or water on a connector, clean the connector.
2. Remove the bolt, nut and the ECM.

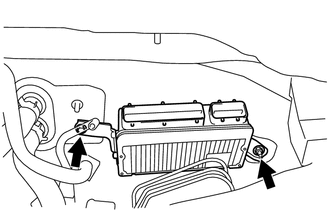

  Fig 2: Identifying ECM Mounting Bolt & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 ECM BRACKET
1. Remove the 2 screws and No. 1 ECM bracket.

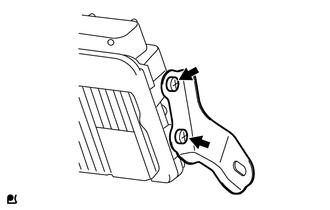

  Fig 3: Identifying No. 1 ECM Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 ECM BRACKET
1. Remove the 2 screws and No. 2 ECM bracket.

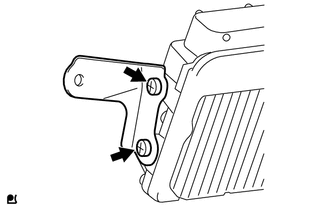

  Fig 4: Identifying No. 2 ECM Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
