OEM Power Source (Current Flow Chart)
>>
POWER SOURCE (Current Flow Chart)
>>
S/D
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
POWER SOURCE (Current Flow Chart): S/D

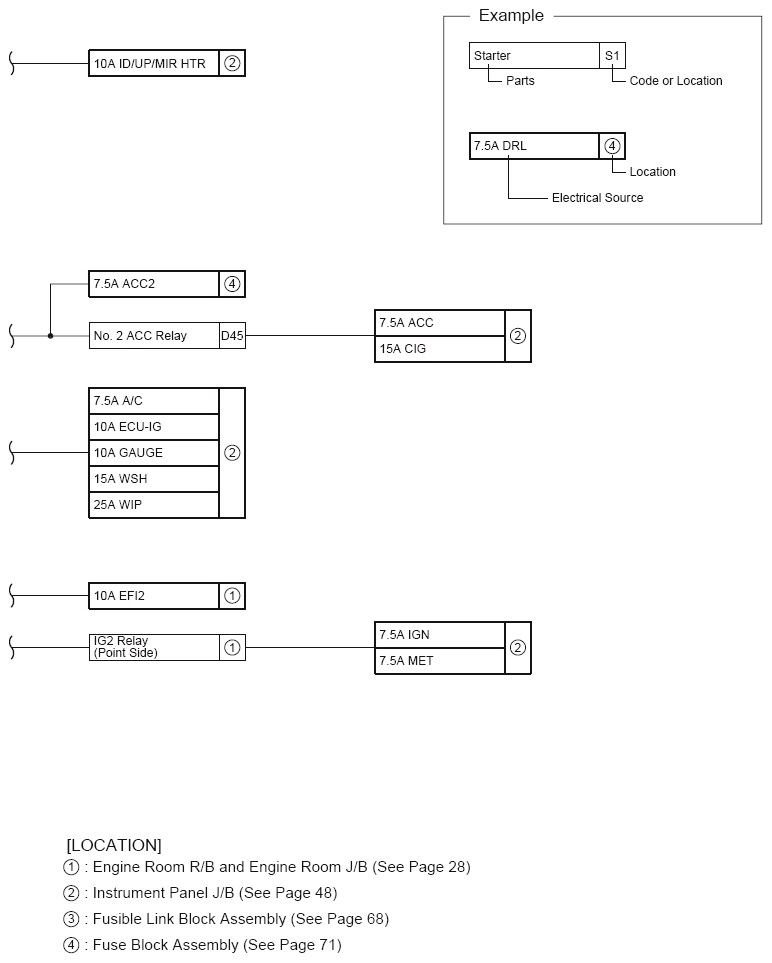

Fig 1: Current Flow Chart (S/D, 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

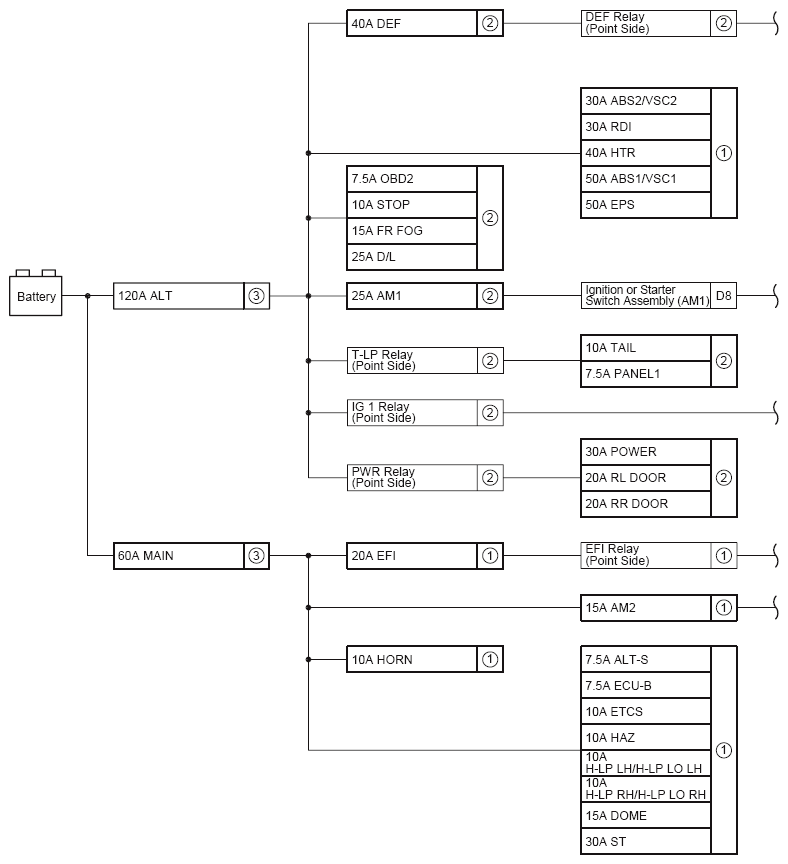

Fig 2: Current Flow Chart (S/D, 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
