Front Fog Light (H/B): Notes

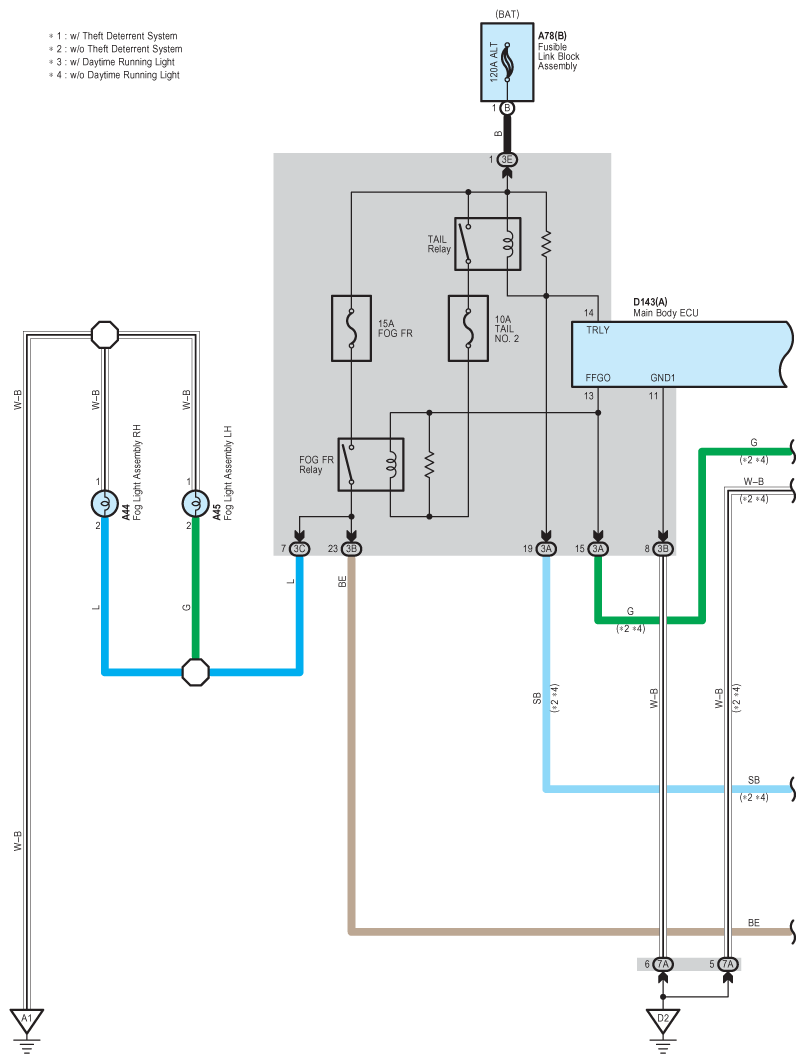

Fig 1: Front Fog Light System Wiring Diagram (H/B) (1 Of 3)
G09112582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

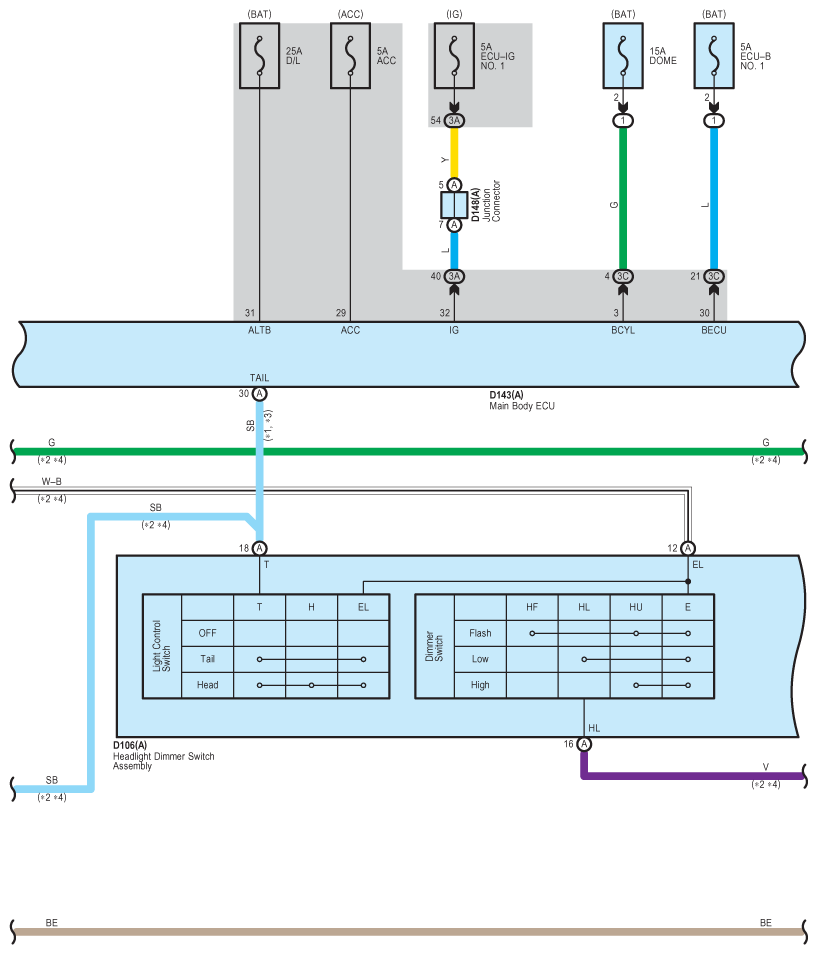

Fig 2: Front Fog Light System Wiring Diagram (H/B) (2 Of 3)
G09112583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

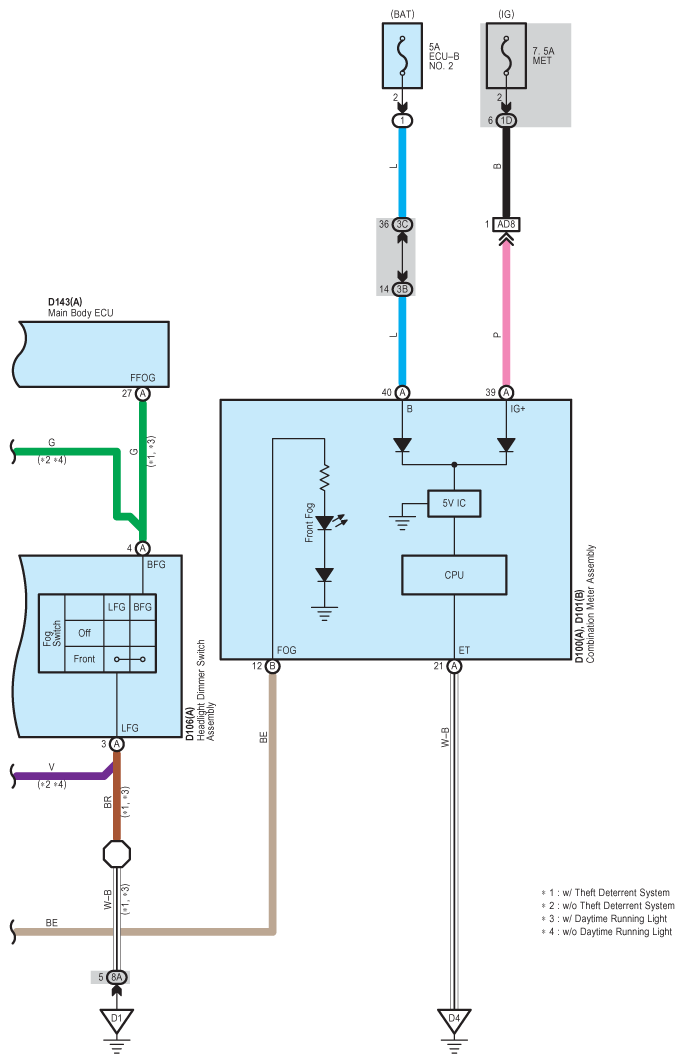

Fig 3: Front Fog Light System Wiring Diagram (H/B) (3 Of 3)
G09112584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
