Headlight (H/B): Notes — 2013 Toyota Yaris SE, Automatic Trans Service Manual ~ LEMON Manuals

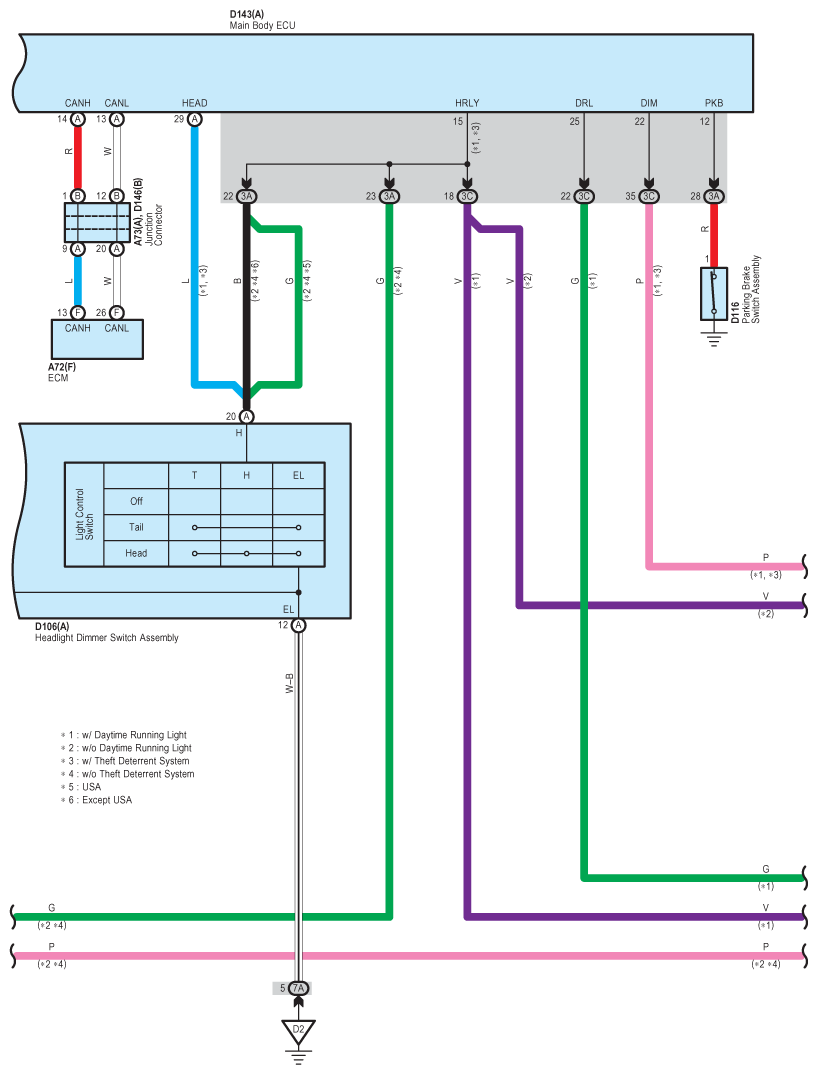

Fig 1: Headlight System Wiring Diagram (H/B) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

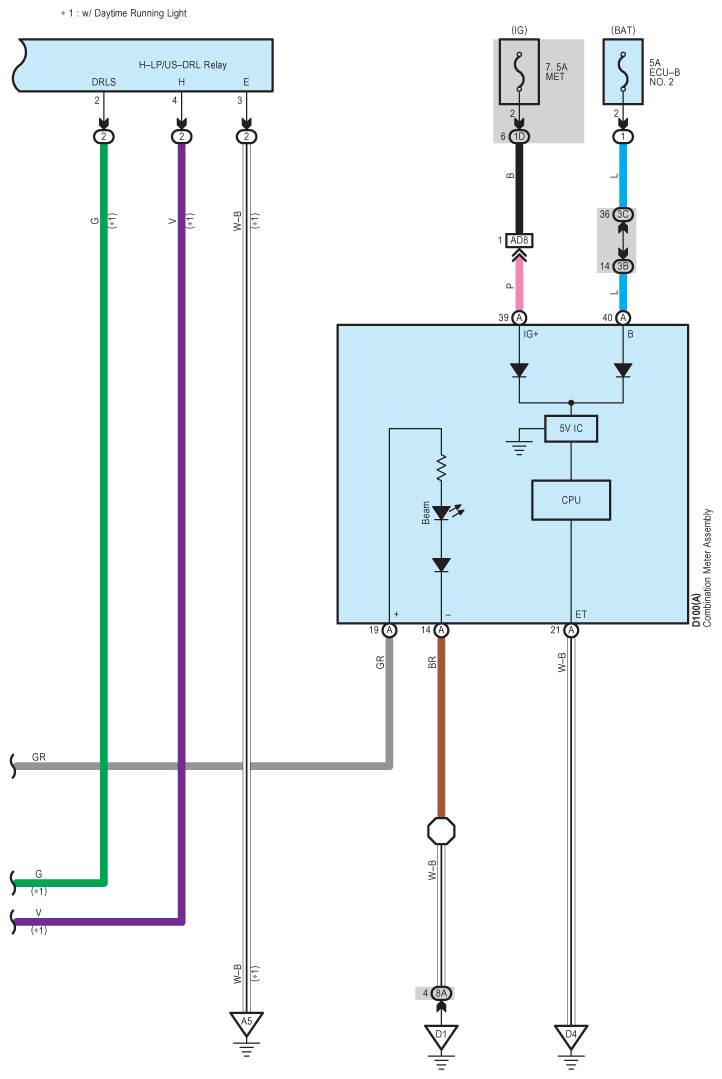

Fig 2: Headlight System Wiring Diagram (H/B) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

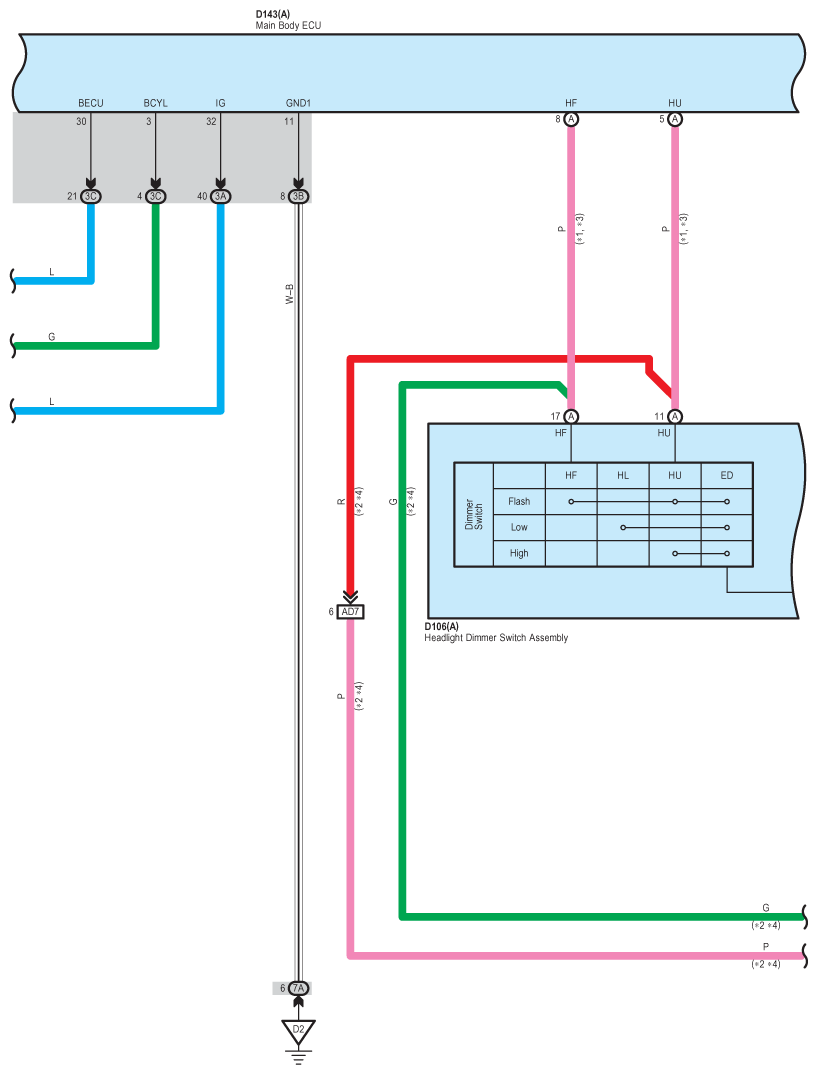

Fig 3: Headlight System Wiring Diagram (H/B) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

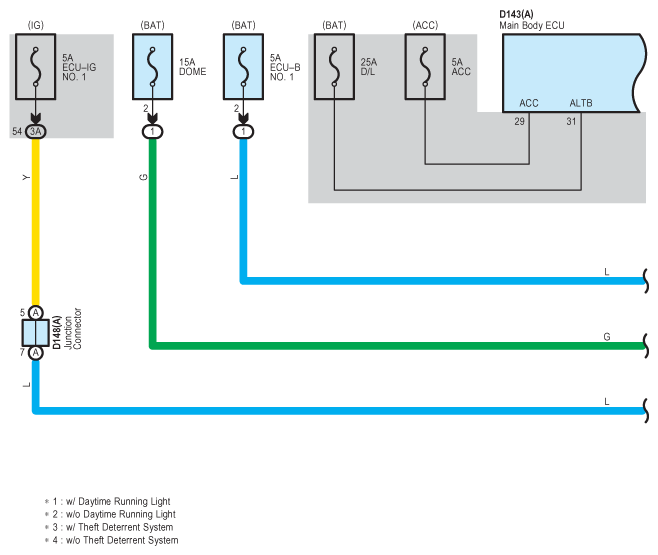

Fig 4: Headlight System Wiring Diagram (H/B) (4 Of 5)

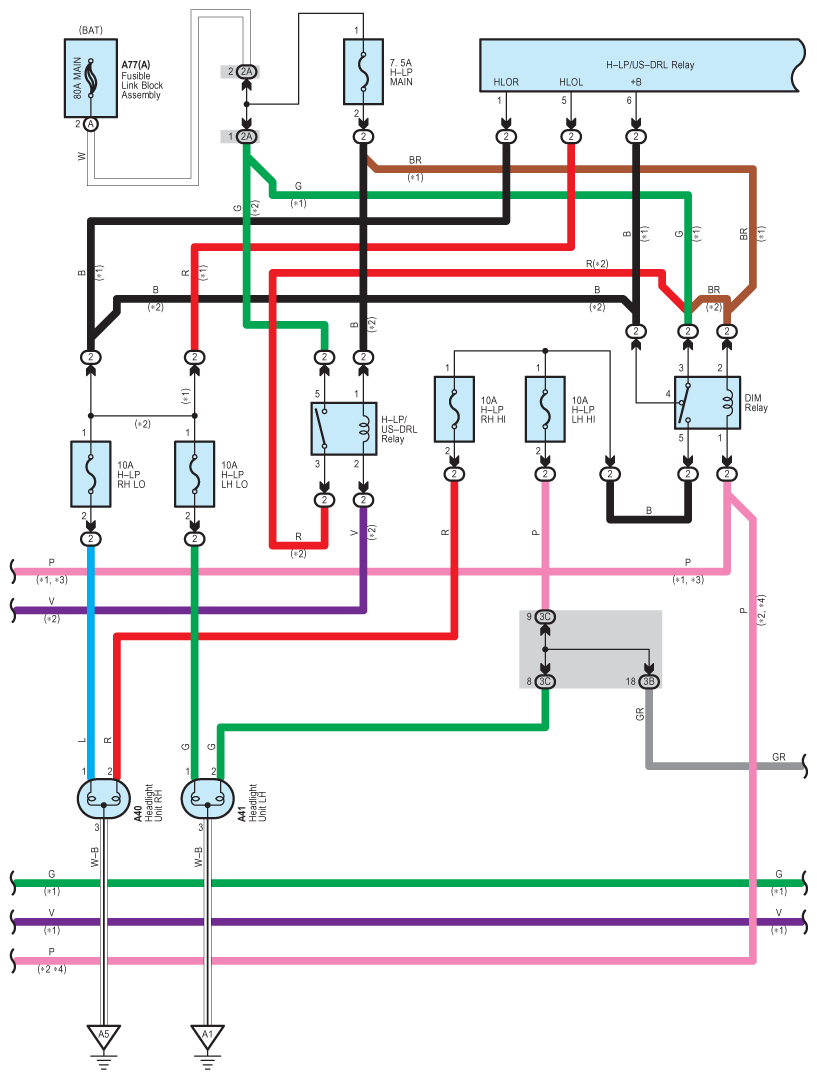

Fig 5: Headlight System Wiring Diagram (H/B) (5 Of 5)
