ECM (for Sedan): Components: Illustration

Fig 1: Identifying ECM Replacement Components With Torque Specifications (For Sedan) (1 Of 2)
GTY375098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

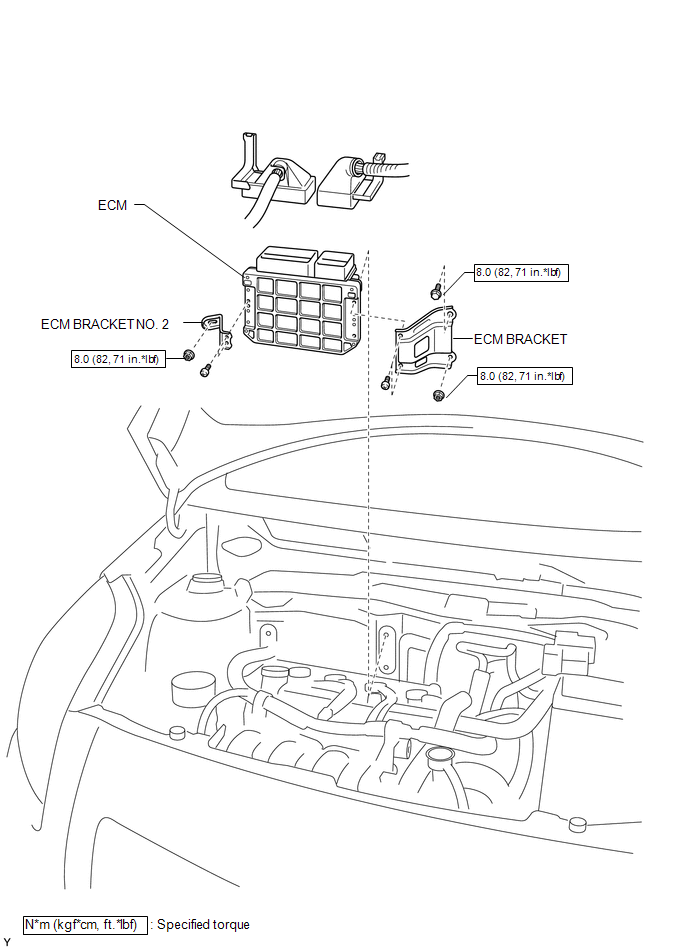

Fig 1: Identifying ECM Replacement Components With Torque Specifications (For Sedan) (2 Of 2)
GTY328396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
