System Diagram [08/2013 - 08/2016]

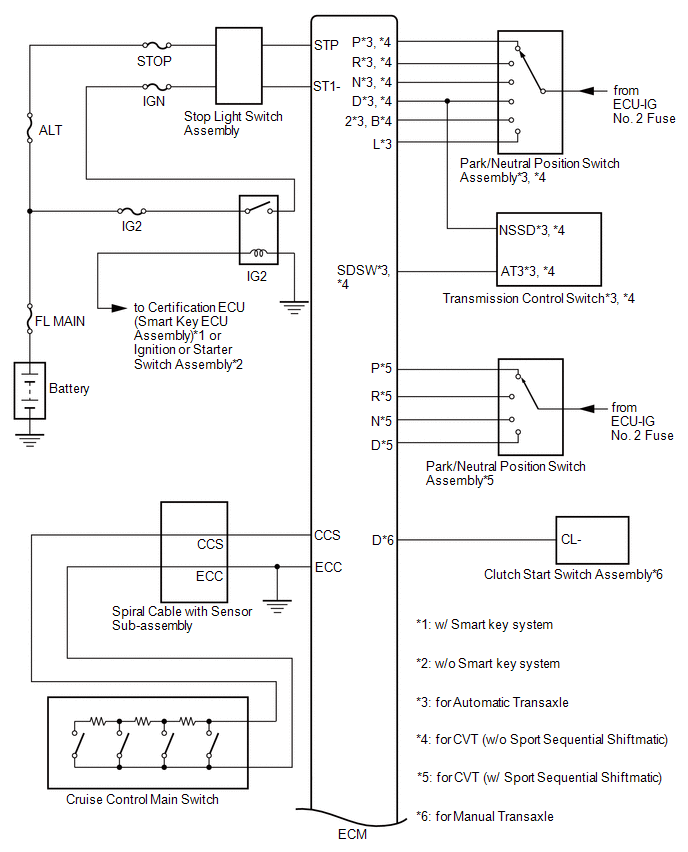

Fig 1: Cruise Control System Circuit Diagram (1 Of 2)
GTY440764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

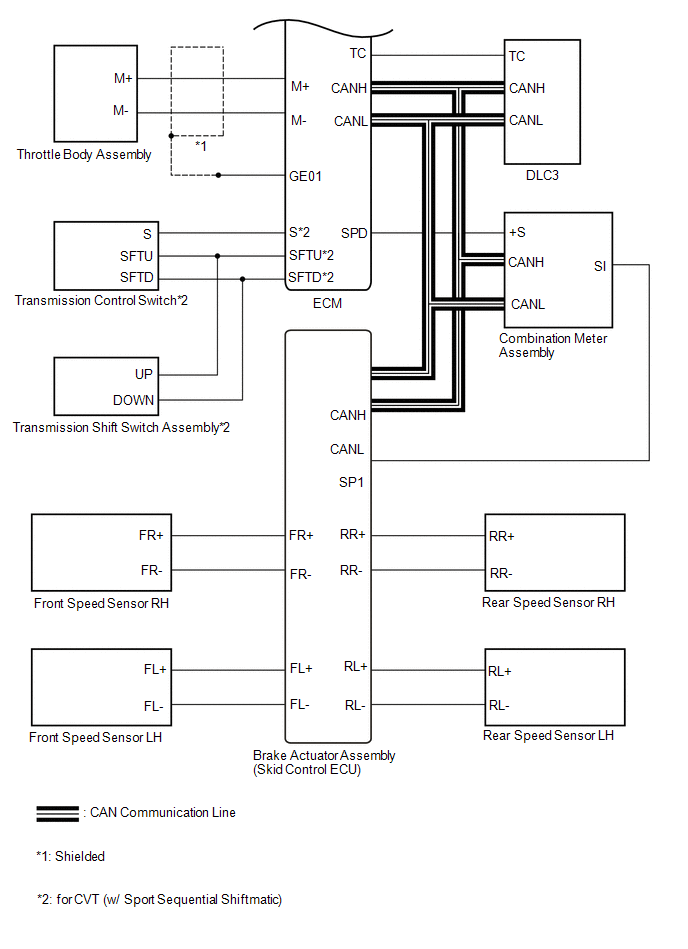

Fig 2: Cruise Control System Circuit Diagram (2 Of 2)
GTY453428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter Assembly
(Cruise Control Indicator)
(Cruise Control SET Indicator)		 Cruise control indicator and cruise control SET indicator operation signal CAN
Skid Control ECU Combination Meter Assembly
  • Vehicle speed pulse signal integrated value
  • Vehicle speed (SP1)
 CAN
