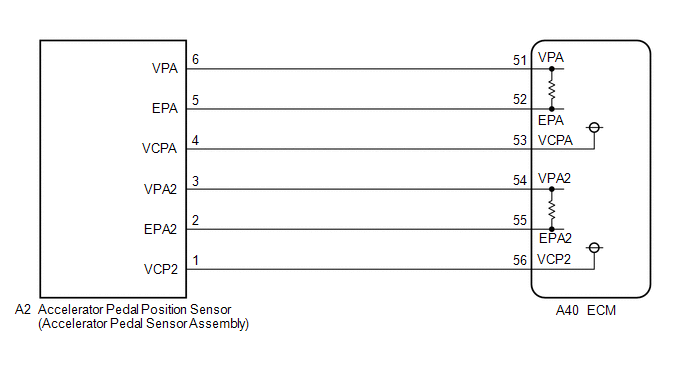

DTC P2120, P2122, P2123, P2125, P2127, P2128, P2138; Throttle / Pedal Position Sensor / Switch "D" Circuit [08/2016 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY443651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
