System Diagram [08/2016 - 08/2017]

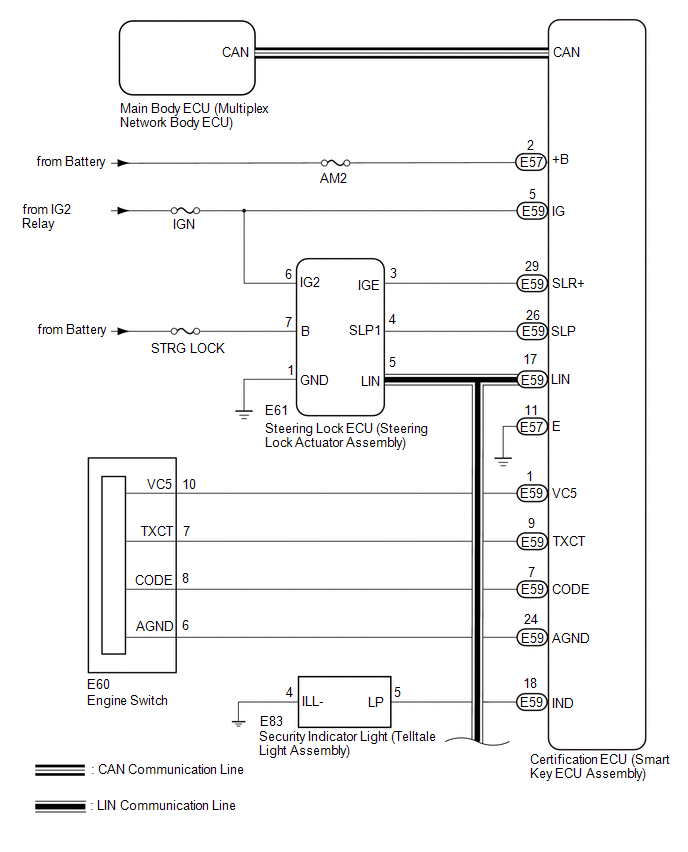

Fig 1: Immobilizer System (w/ Smart Key System) Circuit Diagram (1 Of 2)
GTY729435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Immobilizer System (w/ Smart Key System) Circuit Diagram (2 Of 2)
GTY438670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
