System Diagram [08/2013 - ]

  1. DOOR BUS LINES

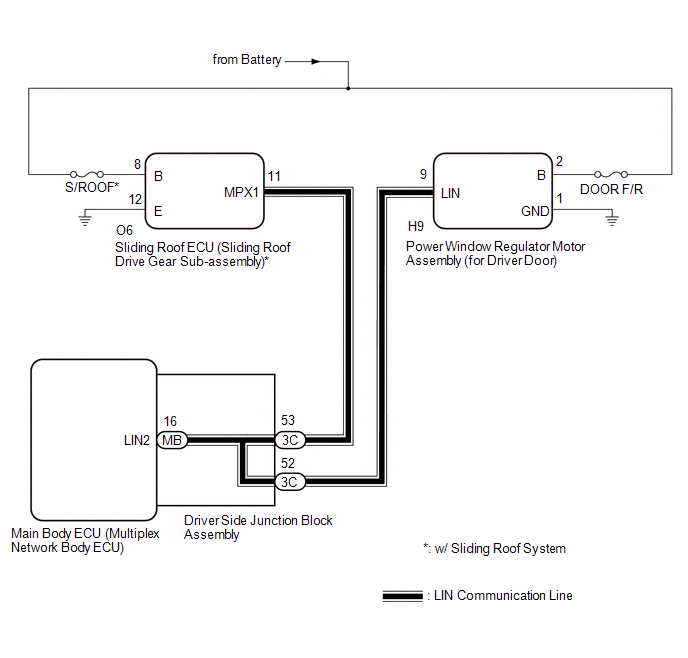

    Fig 1: LIN Communication System Diagram (1 Of 2)
    GTY440025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

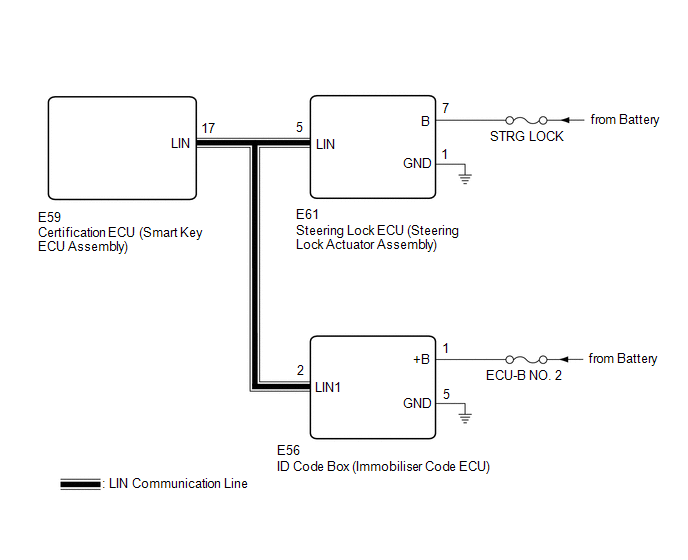

    Fig 2: LIN Communication System Diagram (2 Of 2)
    GTY434008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
