Installation [08/2013 - ]

  1. INSTALL POWER STEERING OIL PRESSURE SWITCH
    1. Install a new O-ring to the power steering oil pressure switch.
    2. Apply a light coat of engine oil to the O-ring of the power steering oil pressure switch.

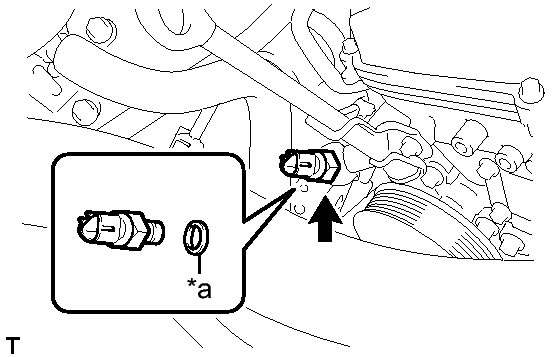

      Fig 1: View Of Power Steering Oil Pressure Switch And O-Ring
      GTY189173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a New O-Ring
    3. Using a 24 mm deep socket wrench, install the power steering oil pressure switch.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the power steering oil pressure switch (connecting surface with pressure feed tube).
      • Be careful not to damage the O-ring when installing the power steering oil pressure switch
    4. Connect the power steering oil pressure switch connector.
  2. ADD POWER STEERING FLUID
  3. INSPECT FOR POWER STEERING FLUID LEAK
  4. BLEED POWER STEERING FLUID  . Refer to ON-VEHICLE INSPECTION [08/2013 - ] - Step 2
