DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input [08/2013 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
5. Read DTCs.
   RESULT



   Result	Proceed to
   P0102 is output	A
   P0103 is output	B

B → See step   6

A: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the Mass Air Flow (MAF) meter connector.
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   B51-3 (+B) - Body ground	Ignition switch ON	11 to 14 V

   TEXT IN ILLUSTRATION

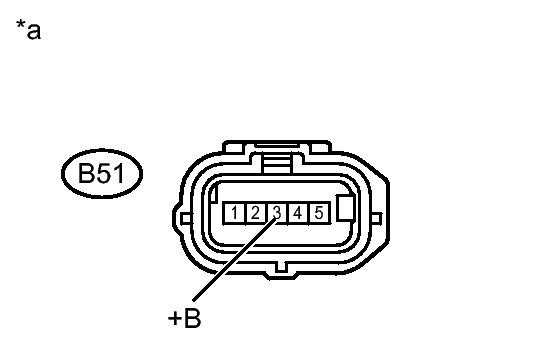

   *a	Front view of wire harness connector (to Mass Air Flow Meter)

NG → See step   5

OK: Go to next step

1. Disconnect the B51 MAF meter connector.
2. Disconnect the B48 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B51-5 (VG) - B48-14 (VG)	Always	Below 1 Ω
   B51-4 (E2G) - B48-13 (E2G)	Always	Below 1 Ω
   B51-5 (VG) or B48-14 (VG) - Body ground	Always	10 kΩ or higher
   B51-4 (E2G) or B48-13 (E2G) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Start the engine.
2. Measure the voltage between the terminals of the ECM connector.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   B48-14 (VG) - B48-13 (E2G)	Engine idling	0.5 to 3.0 V

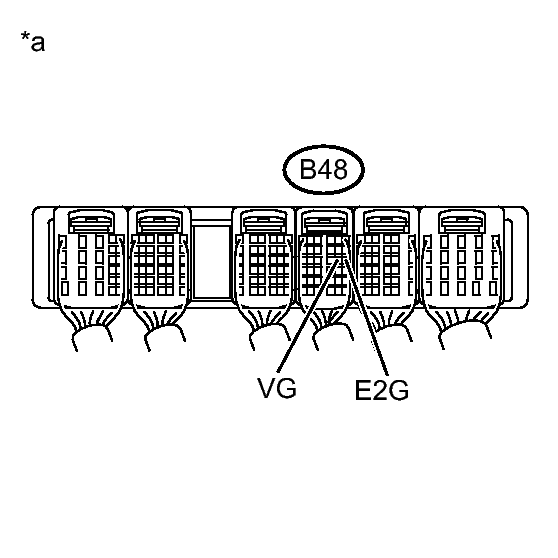

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (ECM)

   HINT:

   Perform "Inspection After Repair" after replacing the mass air flow meter. Refer to INITIALIZATION [08/2013 - ] .

NG → See step   10

OK → See step   11

1. Disconnect the B51 MAF meter connector.
2. Remove the EFI relay from the engine room relay block.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B51-3 (+B) - 3 (EFI relay)	Always	Below 1 Ω
   B51-3 (+B) or 3 (EFI relay) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   12

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B48-13 (E2G) - Body ground	Always	Below 1 Ω

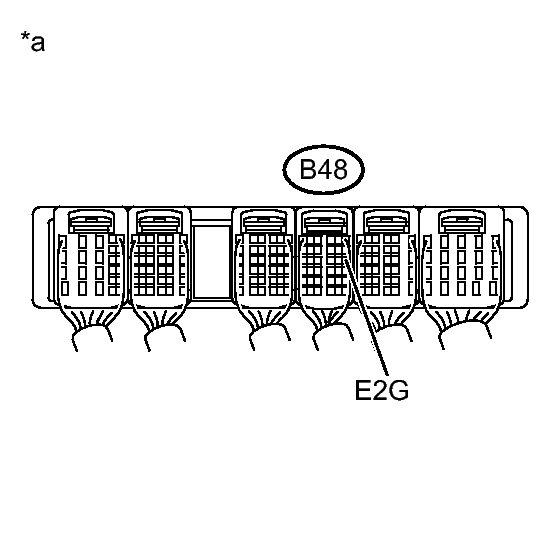

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (ECM)

NG → See step   8

OK: Go to next step

1. Disconnect the B51 MAF meter connector.
2. Disconnect the B48 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B51-4 (E2G) - B48-13 (E2G)	Always	Below 1 Ω
   B51-4 (E2G) or B48-13 (E2G) - Body ground	Always	10 kΩ or higher

   HINT:

   Perform "Inspection After Repair" after replacing the mass air flow meter. Refer to INITIALIZATION [08/2013 - ] .

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   9
