System Diagram [08/2013 - ]

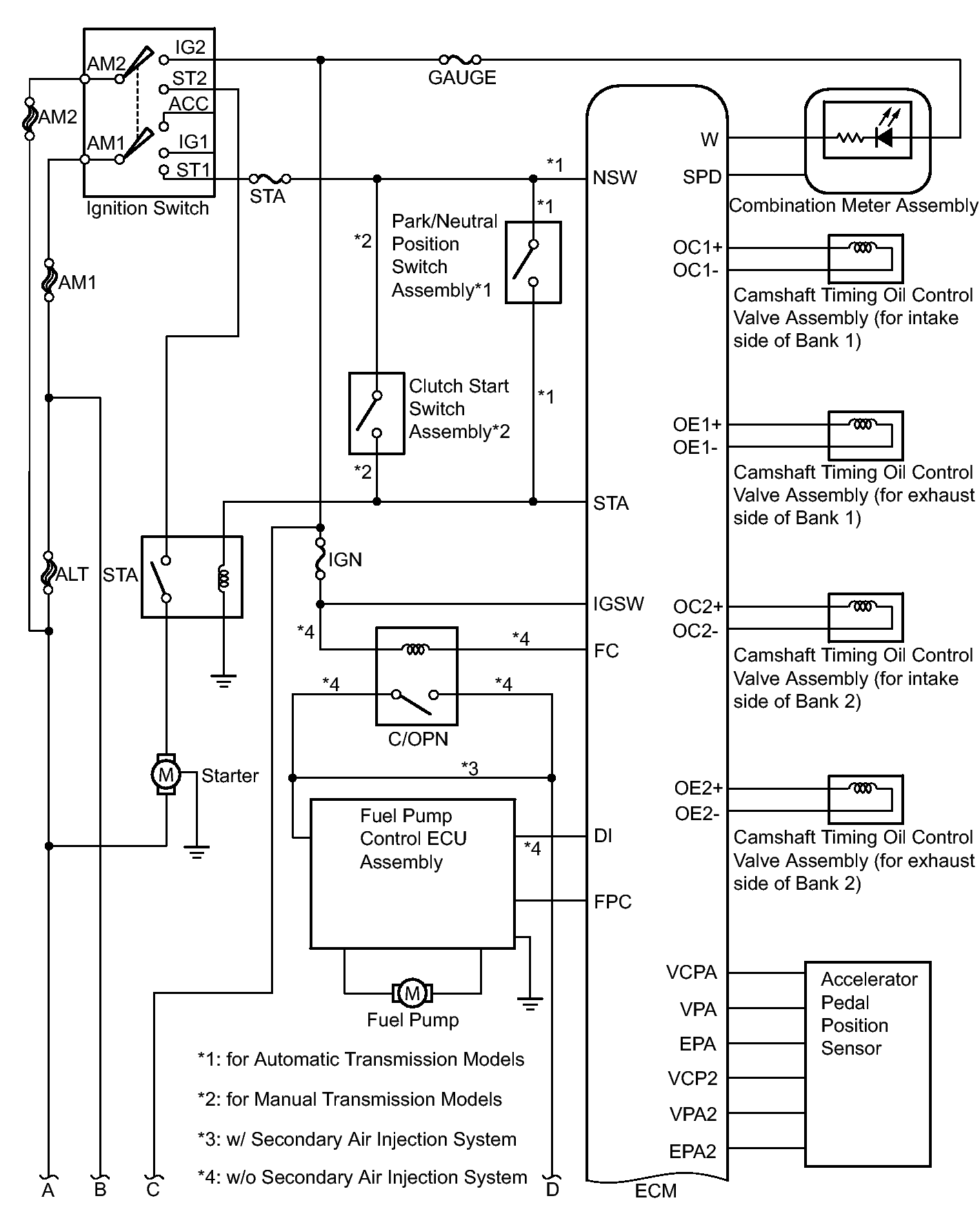

Fig 1: Engine Control System (SFI) - Wiring Diagram (1 Of 6)
GTY384213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

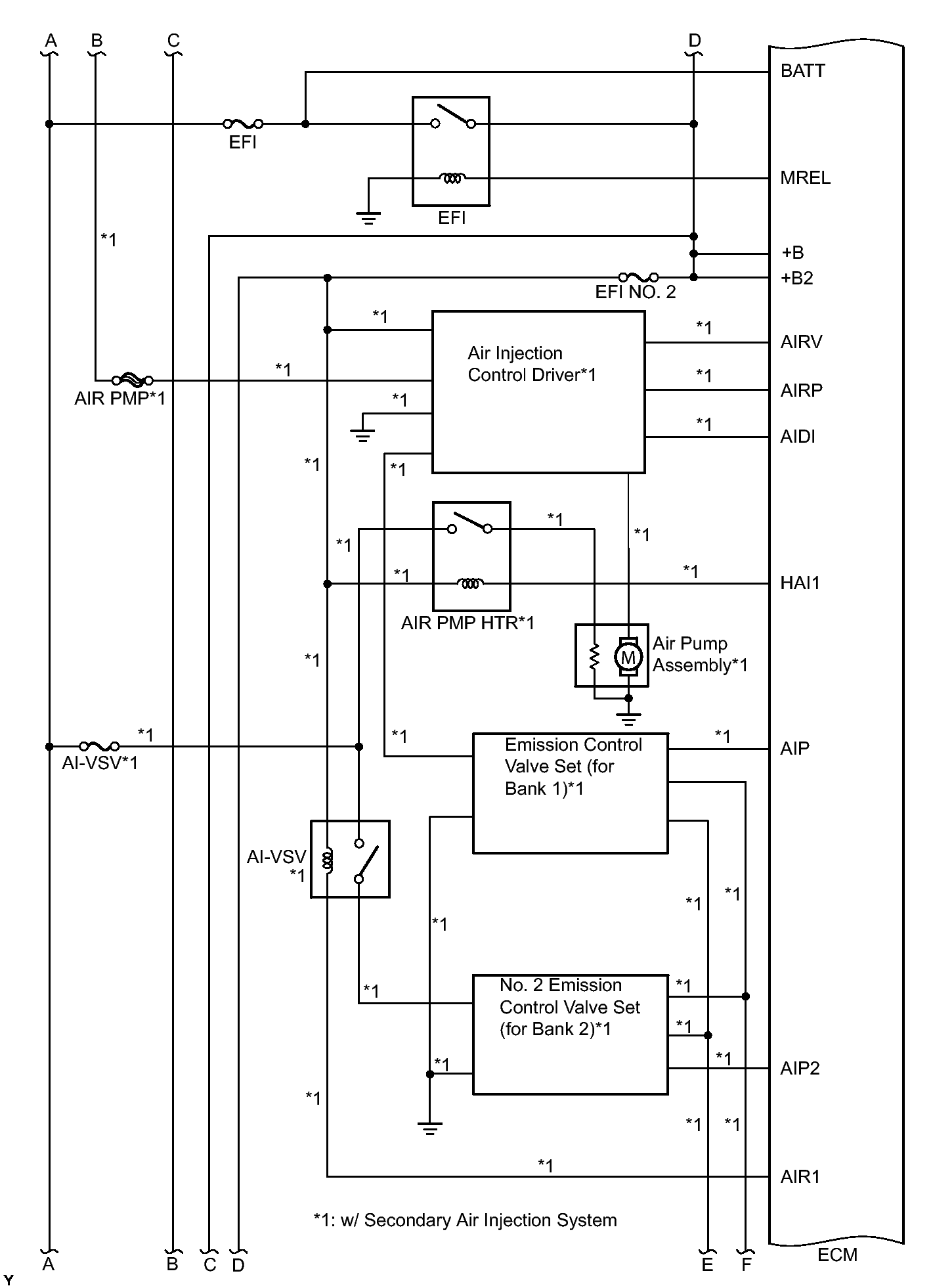

Fig 2: Engine Control System (SFI) - Wiring Diagram (2 Of 6)
GTY365279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

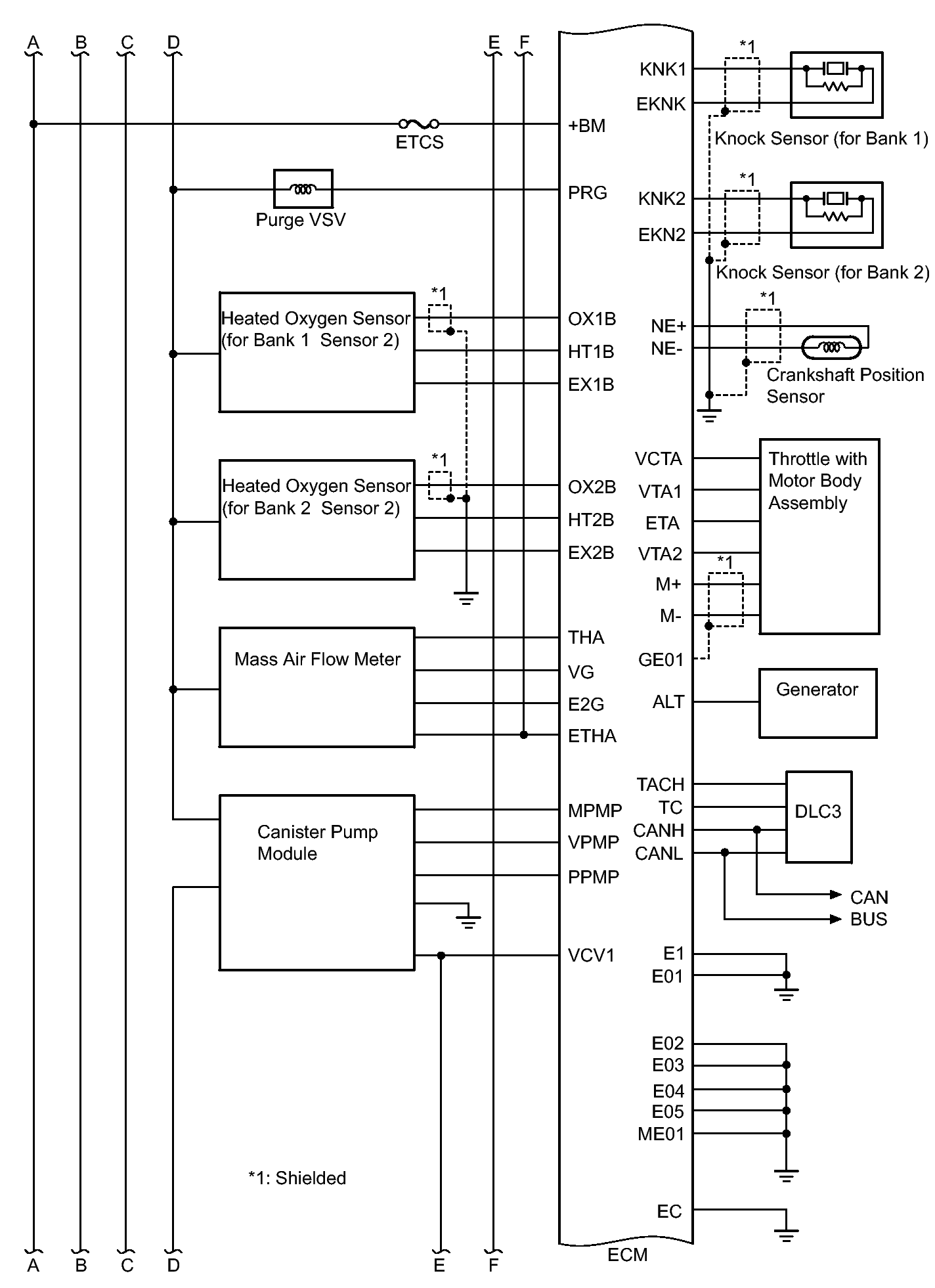

Fig 3: Engine Control System (SFI) - Wiring Diagram (3 Of 6)
GTY361599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

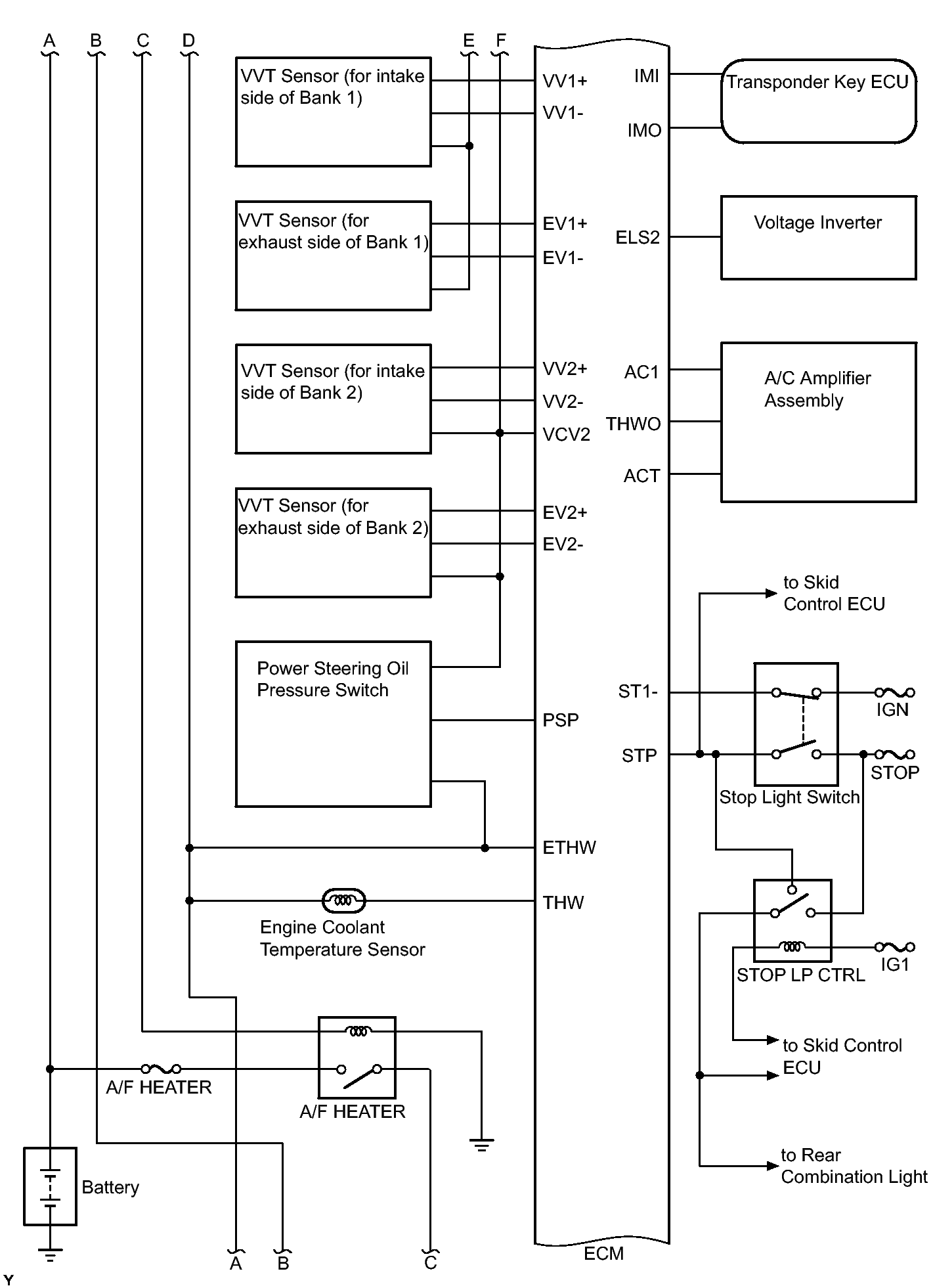

Fig 4: Engine Control System (SFI) - Wiring Diagram (4 Of 6)
GTY376060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

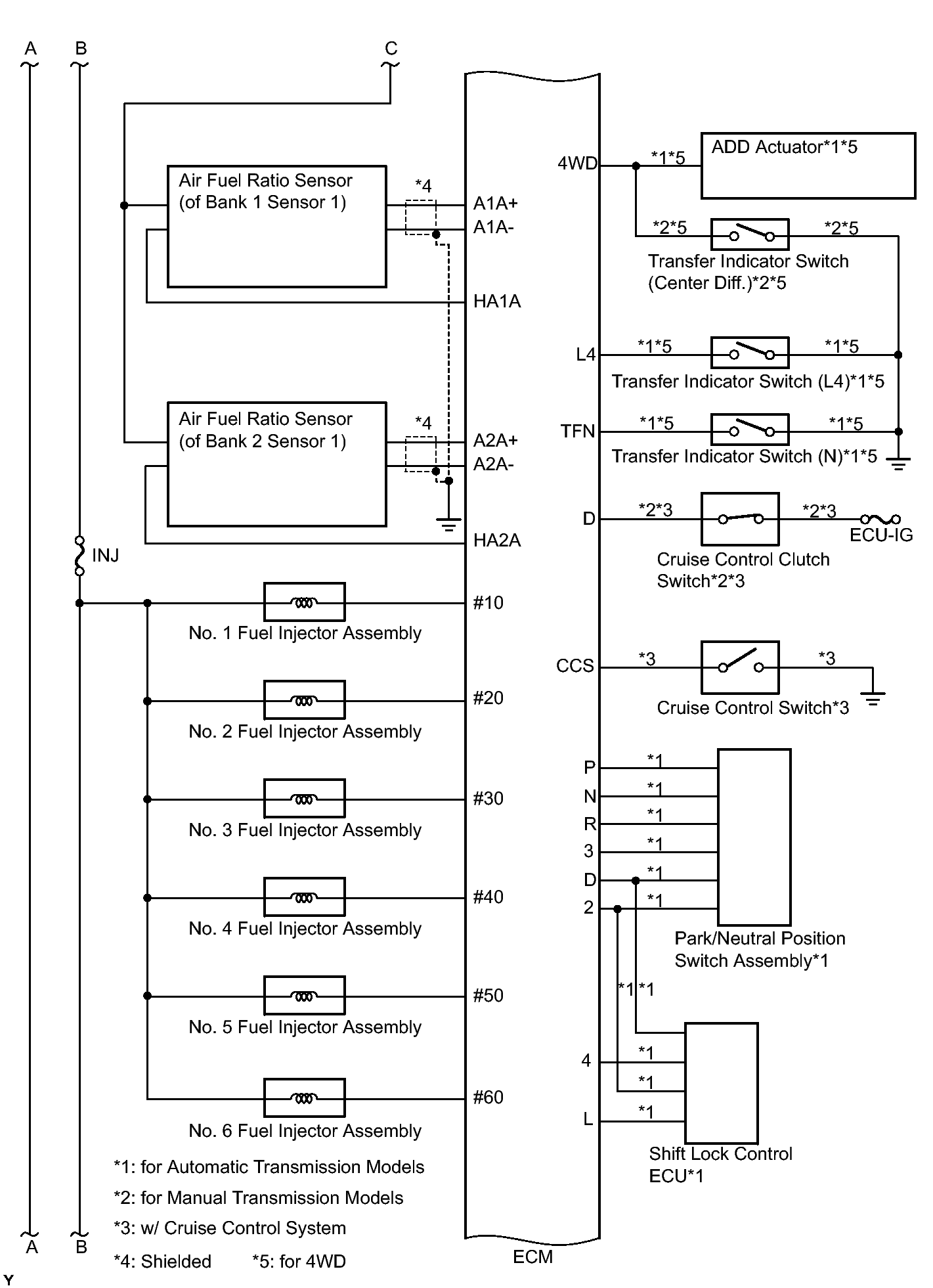

Fig 5: Engine Control System (SFI) - Wiring Diagram (5 Of 6)
GTY366323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

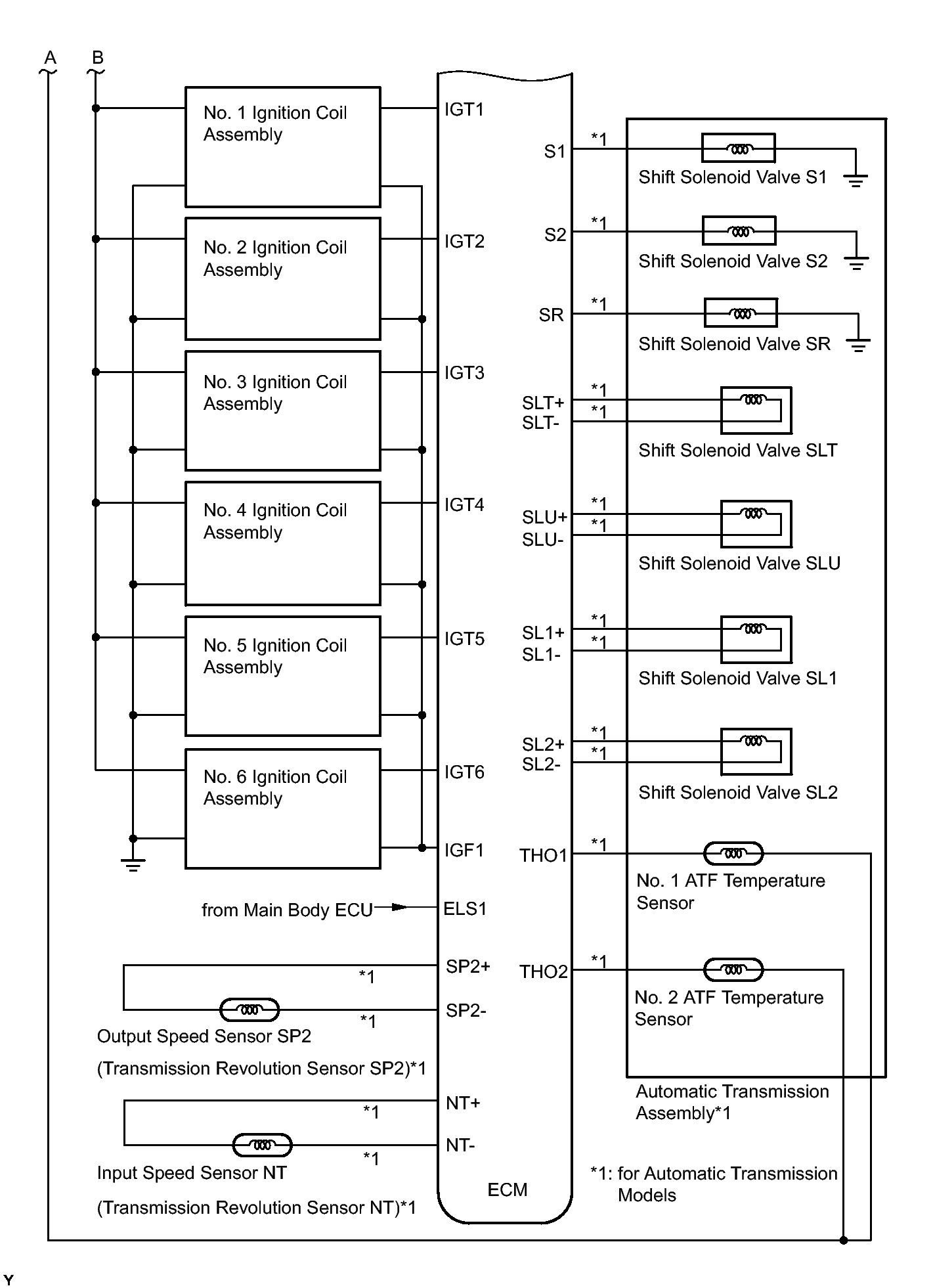

Fig 6: Engine Control System (SFI) - Wiring Diagram (6 Of 6)
GTY379189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
