Operation Check [02/2014 - ]

1. When the electrical key transmitter sub-assembly is in a detection area inside the vehicle and the brake pedal is depressed, the hybrid control system is started by pressing the power switch.
2. When the electrical key transmitter sub-assembly is in a detection area inside the vehicle and the brake pedal is not depressed, the power source mode is changed by pressing the power switch. The power source mode changes in the following order every time the power switch is pressed: off → on (ACC) → on (IG) → off.
3. After getting into the vehicle while carrying the electrical key transmitter sub-assembly when the power switch is off, if the power switch is pressed while not depressing the brake pedal, the power source mode changes to on (ACC) and "ACCESSORY" is displayed on the multi-information display.
   Fig 1: "ACCESSORY" Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	"ACCESSORY" Display

4. After getting into the vehicle while carrying the electrical key transmitter sub-assembly when the power switch is off, if the power switch is pressed 2 times without depressing the brake pedal, the power source mode changes to on (IG) and "IGNITION ON" is displayed on the multi-information display.
   Fig 2: "IGNITION ON" Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	"IGNITION ON" Display

5. After getting into the vehicle while carrying the electrical key transmitter sub-assembly when the power switch is off, if the brake pedal is depressed while the shift lever is in P, the key indicator will be displayed on the multi-information display.

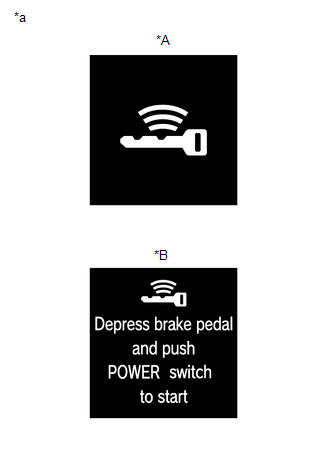

   Fig 3: Multi-Information Display (Both Types)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Multi-information Display (Monochrome Type)
   *B	w/ Multi-information Display (Color Type)
   *a	Key Indicator Display

6. The hybrid control system will start if the power switch is pressed when the key indicator is displayed.

1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter sub-assembly.
2. While depressing the brake pedal and facing the logo side of the electrical key transmitter sub-assembly towards the power switch, hold the electrical key transmitter sub-assembly near the power switch.
3. A buzzer in the combination meter assembly will sound, the power source mode will change to on (IG) and "IGNITION ON" will be displayed on the multi-information display.
   Fig 4: "IGNITION ON" Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	"IGNITION ON" Display

4. Pressing the power switch without depressing the brake pedal turns the power source mode from on (IG) to off.

1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter sub-assembly.
2. While depressing the brake pedal with the shift lever in P and facing the logo side of the electrical key transmitter sub-assembly towards the power switch, hold the electrical key transmitter sub-assembly near the power switch.
3. A buzzer in the combination meter assembly will sound, the power source mode will change to on (IG) and the key indicator will be displayed on the multi-information display.
   Fig 5: Multi-Information Display (Both Types)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Multi-information Display (Monochrome Type)
   *B	w/ Multi-information Display (Color Type)
   *a	Key Indicator Display

4. Press the power switch with the brake pedal depressed to start the hybrid control system.

1. Get into the vehicle while carrying the electrical key transmitter sub-assembly with the power switch off. With the shift lever in P, check that the key indicator is displayed when the brake pedal is depressed. Check that the hybrid control system starts when the power switch is pressed after the key indicator is displayed on the multi-information display.
   Fig 6: Multi-Information Display (Both Types)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Multi-information Display (Monochrome Type)
   *B	w/ Multi-information Display (Color Type)
   *a	Key Indicator Display

2. While the brake pedal is released and the electrical key transmitter sub-assembly is being carried, check that the power source mode changes in the following order when the power switch is pressed: off → on (ACC) → on (IG) → off.

   HINT:

   When the power switch is pressed with the power switch on (IG) and the shift lever not in P, the power source mode does not change to off, but changes to on (ACC).

3. With the shift lever in P, check that the steering lock operates when a door is opened.

   HINT:

   When the power switch is pressed after the vehicle is stopped, the hybrid control system stops and all the power turns off. However, if the shift lever is not in P when the power switch is pressed with the vehicle stopped, the power source mode does not change to off, but changes to on (ACC).

4. Check the push-button start function operation range for the front side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the hybrid control system can be started.
   NOTE:

   Even if the electrical key transmitter sub-assembly is in a vehicle interior key detection area, the electrical key transmitter sub-assembly may not be properly detected if the electrical key transmitter sub-assembly is on the instrument panel, in the glove box or on the floor.

   HINT:

   • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the shift lever.
   • Perform this inspection for both inspection points.
   Fig 7: Inspection Points (1 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Inspection Point

5. Check the push-button start function operation range for the rear side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the hybrid control system can be started.
   NOTE:

   Even if the electrical key transmitter sub-assembly is in a vehicle interior key detection area, the electrical key transmitter sub-assembly may not be properly detected if the electrical key transmitter sub-assembly is on the instrument panel, in the glove box or on the floor.

   HINT:

   • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the rear seat.
   • Perform this inspection for both inspection points.
   Fig 8: Inspection Points (2 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Inspection Point

6. Check the push-button start function operation range for the back door side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the hybrid control system can be started.

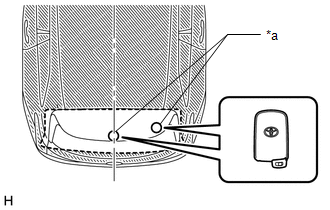

   Fig 9: Inspection Points (3 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Inspection Point

   NOTE:

   Even if the electrical key transmitter sub-assembly is in a vehicle interior key detection area, the electrical key transmitter sub-assembly may not be properly detected if the electrical key transmitter sub-assembly is on the instrument panel, in the glove box or on the floor.

   HINT:

   • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the edge of the back door.
   • Perform the inspection for both inspection points.

1. Press the unlock switch of the electrical key transmitter sub-assembly twice while pressing the lock switch and check that the electrical key transmitter sub-assembly LED blinks 4 times and enters transmitter battery saving mode.
2. Check that the smart key system (for Start Function) does not operate while in transmitter battery saving mode.

   HINT:

   To cancel transmitter battery saving mode, press a switch of the electrical key transmitter sub-assembly.

1. Check that the power source mode changes according to the chart below.

   Shift Position	Brake Pedal	Power Source Mode when Power Switch Pressed
   P	Released	Off → on (ACC) → on (IG) → off
   P	Released	On (READY) → off
   P	Released	On (ACC)* → on (IG)
   P	Depressed	Off → on (READY)
   P	Depressed	On (ACC) → on (READY)
   P	Depressed	On (IG) → on (READY)
   P	Depressed	On (READY) → off
   P	Depressed	On (ACC)* → on (READY)
   Not P	Released	Off → on (ACC) → on (IG) (after power source mode changes to on (IG), power source mode changes between on (IG) and on (ACC) every time power switch is pressed)
   Not P	Released	On (READY) → on (ACC)
   Not P	Depressed	Off → on (IG)
   Not P	Depressed	On (ACC) → on (IG)
   Not P	Depressed	On (READY) → on (ACC)

   HINT:

   *: This situation is only applicable when the power source mode has changed from on (IG) to on (ACC). (Excluding an emergency stop by pressing the power switch 3 times quickly or pressing and holding the power switch for 2 seconds or more.)

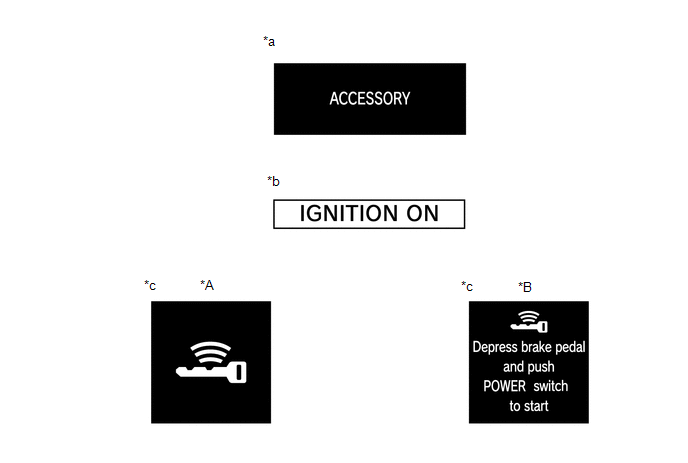

Fig 10: Multi-information Display (Both Types)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*1: Indicates the conditions in which the hybrid control system can be started by pressing the power switch while the following condition is met:

• Condition

  All of the following conditions are met:

  • The power source mode was changed from on (IG) to off.
  • Key verification is OK*2 or immobiliser is unset (power switch is on (ACC) or on (IG)).
  • The power switch is not on (READY).
  • The stop light switch is on.
  • The shift lever is in P.

*2: When the electrical key transmitter sub-assembly is in the cabin, the ID code sent as a result of communication between the electrical key transmitter sub-assembly and certification ECU (smart key ECU assembly) and the ID code calculated by the certification ECU (smart key ECU assembly) are compared. If the ID codes match each other, the vehicle recognizes that the electrical key transmitter sub-assembly is in the cabin.
