Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2013 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

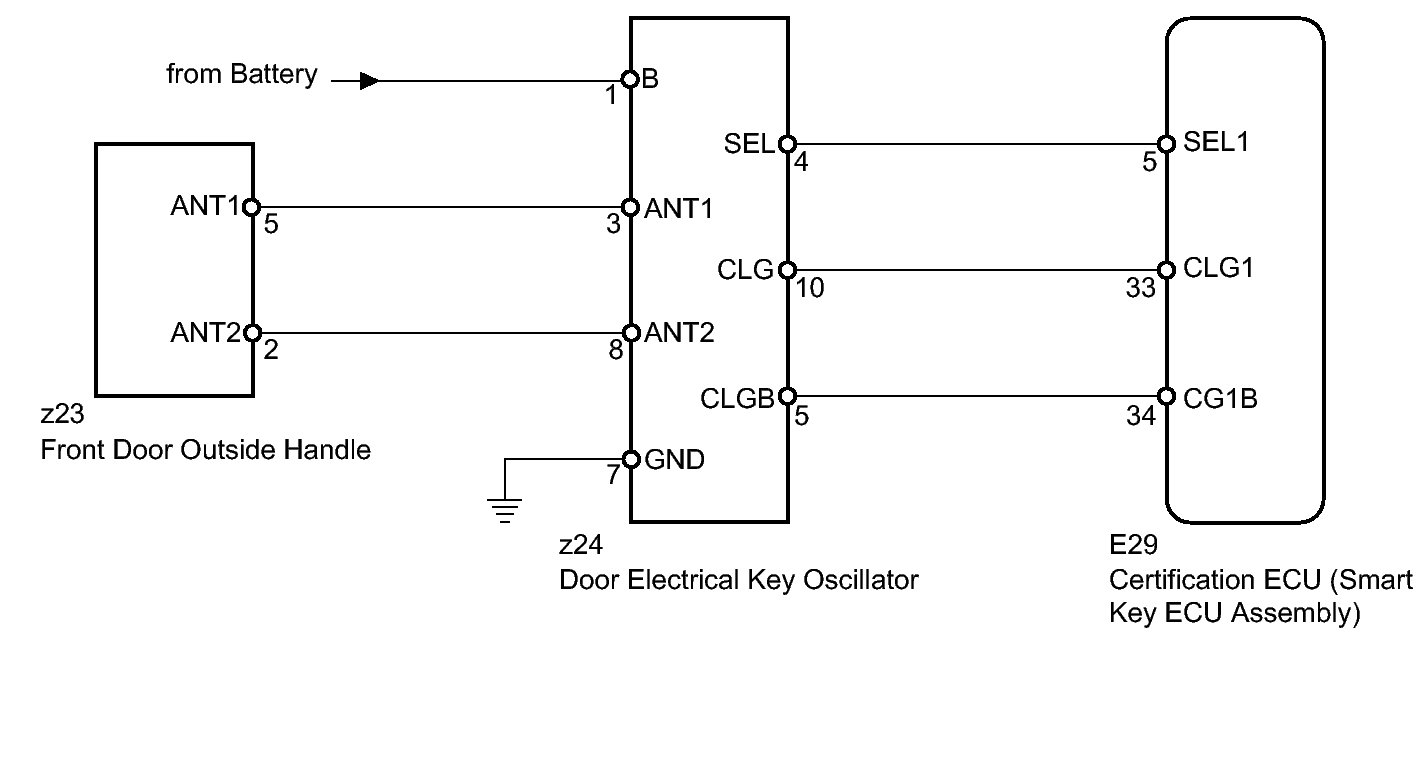

Fig 1: Driver Side Door Entry Lock Wiring Diagram
GTY367044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
