DTC B2285: Steering Lock Position Signal Circuit Malfunction [12/2013 - ]: Wiring Diagram

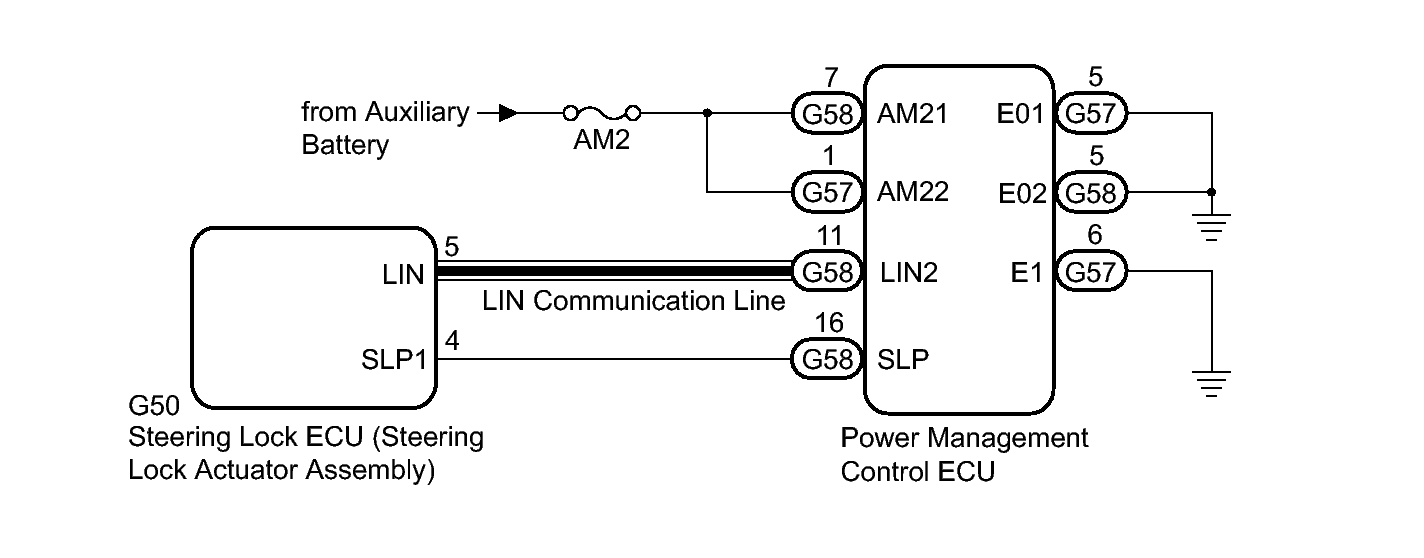

Fig 1: Identifying Steering Lock Position Signal Circuit Wiring Diagram
GTY340728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
