Operation Check [12/2013 - ]

1. Check the entry unlock function (driver door, front passenger door).
   1. Perform a wireless lock operation to lock the door, touch the unlock sensor built into the backside of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door unlocks.

      HINT:

      To perform a wireless lock operation, press the lock button of the electrical key transmitter sub-assembly while standing near the front door outside handle assembly.

   2. Inspect the entry unlock detection area. Hold the electrical key transmitter sub-assembly at the same height as the front door outside handle assembly and approximately 0.7 m (2.30 ft.) from the vehicle as shown in the illustration and check that the LED (red) of the electrical key transmitter sub-assembly blinks.

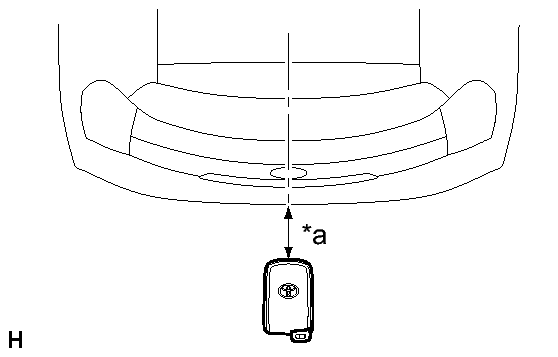

      Fig 1: Hold The Electrical Key Transmitter Sub-Assembly At The Same Height

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	0.7 to 1 m (2.30 to 3.28 ft.)

   3. With the system in unlock standby mode, grasp the front door outside handle assembly and check that the door unlocks.

      HINT:

      • The system is in unlock standby mode when the electrical key transmitter sub-assembly is in the detection area and the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly).
      • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the front door outside handle assembly.
      • Inspect the front passenger door using the same procedure.
   4. Check the unlock response sensitivity. With the system in unlock standby mode, touch the area shown in the illustration and check that the door unlocks.
      NOTE:

      If the sensor is touched too quickly or released too slowly, the sensor may not react and the door will not unlock.

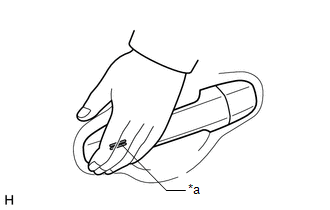

      Fig 2: Unlock Sensor (Backside)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Unlock Sensor (Backside)

2. Check the entry lock function (driver door, front passenger door).
   NOTE:

   If the electrical key transmitter sub-assembly is in the vehicle but outside the detection area (on the instrument panel, in the glove box, on the floor) and a door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter sub-assembly will be locked inside the vehicle.

   1. With the door closed and unlocked, touch the lock sensor of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door locks.

      HINT:

      If the door does not lock even when touching the lock sensor, touch it with your palm.

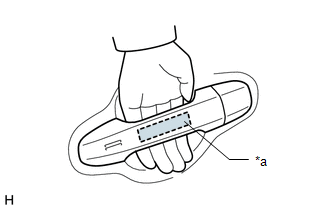

      Fig 3: Lock Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Lock Sensor

   2. Inspect the entry lock operating range. Hold the electrical key transmitter sub-assembly approximately 0.1 m (0.328 ft.) below the bottom edge of the door glass and approximately 0.3 m (0.984 ft.) from the vehicle as shown in the illustration, touch the lock sensor and check that the door locks.
      Fig 4: Hold The Electrical Key Transmitter Sub-Assembly At The Same Height

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Approximately 0.3 m (0.984 ft.)

      HINT:

      • If the door does not lock even when touching the lock sensor, touch it with your palm.
      • As communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the front door outside handle assembly, the door may not lock if the lock sensor is touched with the same hand that is carrying the electrical key transmitter sub-assembly, etc.
      • If the key lock-in prevention function buzzer sounds, electric waves from the indoor electrical key antenna may be leaking from the vehicle.
      • Inspect the front passenger door using the same procedure.
      • The door lock operation cannot be performed more than 3 times consecutively.
3. Check the entry back door unlock function.
   1. Perform a wireless lock operation to lock the door, operate the unlock switch of the back door opener switch assembly while carrying the electrical key transmitter sub-assembly and check that the door unlock.

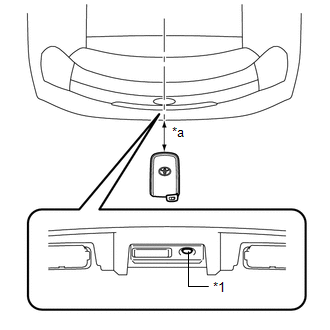

      Fig 5: Wireless Lock Operation

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Unlock Switch
      *a	Approximately 0.7 m (2.30 ft.)

   2. Inspect the entry back door unlock operating range. While standing at the rear of the vehicle, hold the electrical key transmitter sub-assembly so that it is facing the direction shown in the illustration at the same height as the back door opener switch assembly and approximately 0.7 m (2.30 ft.) from the vehicle, press the unlock switch of the back door opener switch assembly and check that the door unlock.
4. Check the entry back door lock function.
   NOTE:

   If the electrical key transmitter sub-assembly is inside the vehicle and a door lock operation is performed, it is possible that the electrical key transmitter sub-assembly may be locked inside the vehicle.

   1. With the door closed and unlocked, press the lock switch of the back door opener switch assembly while carrying the electrical key transmitter sub-assembly outside of the vehicle and check that the door lock.
   2. Inspect the entry back door lock operating range. Hold the electrical key transmitter sub-assembly so that it is facing the direction shown in the illustration at the same height as the top edge of the rear bumper and approximately 0.3 m (0.98 ft.) from the vehicle, press the lock of the back door opener switch assembly and check that the door lock.

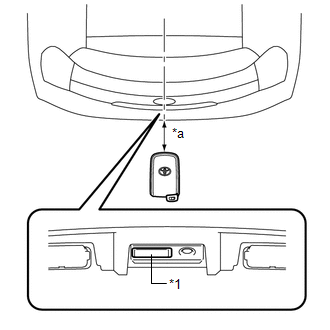

      Fig 6: Lock Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Lock Switch
      *a	Approximately 0.3 m (.0.98 ft.)

      HINT:

      • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.66 ft.) of the rear bumper.
      • If the key lock-in prevention function buzzer sounds, electric waves from the indoor electrical key antenna assembly may be leaking from the vehicle.
5. Check the push start function.
   1. With the power switch off, move the shift lever to P, depress the brake pedal while carrying the electrical key transmitter sub-assembly. Then, press the power switch and check that the hybrid system starts.
   2. With the brake pedal released and the power switch off, press the power switch while carrying the electrical key transmitter sub-assembly and check that the power source mode changes as follows: off → on (ACC) → on (IG) → off.
   3. Stop the vehicle, press the power switch and check that the power source mode changes to off (the hybrid system stops and all electrical systems are off).
   4. Inspect the push start operating range (front floor). Place the electrical key transmitter sub-assembly on the front seat at either inspection point so that it is facing in the direction shown in the illustration and check that the hybrid system can be started.

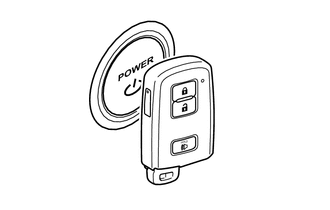

      Fig 7: Inspection Point

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection Point

      NOTE:

      • Even if the electrical key transmitter sub-assembly is within the vehicle interior detection area, the electrical key transmitter sub-assembly may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
      • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the shift lever.

      HINT:

      Perform the inspection for both inspection points.

   5. Inspect the push start operating range (steering column). Place the electrical key transmitter sub-assembly on the steering column at inspection point so that it is facing in the direction shown in the illustration and check that the hybrid system can be started.
      Fig 8: Inspection Point

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection Point

      NOTE:

      • Even if the electrical key transmitter sub-assembly is within the vehicle interior detection area, the electrical key transmitter sub-assembly may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
      • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the shift lever.
   6. Inspect the push start operating range (rear floor). Place the electrical key transmitter sub-assembly on the rear seat at either inspection point so that it is facing in the direction shown in the illustration and check that the hybrid system can be started.

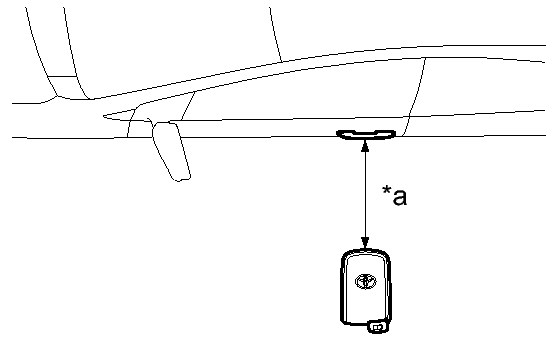

      Fig 9: Inspection Point

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection Point

      NOTE:

      • Even if the electrical key transmitter sub-assembly is within the vehicle interior detection area, the electrical key transmitter sub-assembly may not be properly detected if it is on the instrument panel, in the glove box or on the floor.
      • Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the rear seat cushion.

      HINT:

      Perform the inspection for both inspection points.

6. Check the key lock-in prevention function (vehicle interior).
   NOTE:

   In order to prevent the electrical key transmitter sub-assembly from being locked inside the vehicle, perform this inspection with the window of a door open.

   1. Turn the power switch off.
   2. Place the electrical key transmitter sub-assembly on a front or rear seat.
   3. Close the door, making sure the doors are unlocked.
   4. Touch a door lock sensor and check that the doors do not lock and the key lock-in prevention function buzzer (external) sounds for approximately 5 seconds.
7. Check transmitter battery saving function
   1. Press the unlock button of the electrical key transmitter sub-assembly twice while pressing the lock button and check that the electrical key transmitter sub-assembly LED blinks 4 times and enters transmitter battery saving mode.
   2. Check that the smart key system (for Entry Function) does not operate while in transmitter battery saving mode.

      HINT:

      To cancel transmitter battery saving mode, press a button of the electrical key transmitter sub-assembly.

8. Check the entry cancel function.
   1. Cancel the smart key system and check that all the functions of the smart key system (for Entry Function) no longer operate.

      HINT:

      • Refer to the following procedures to cancel the smart key system (for Entry Function). Refer to CUSTOMIZE PARAMETERS [12/2013 - ] .
      • While the smart key system is canceled, it is possible to lock and unlock the doors with the wireless operation, and the start system can be operated by holding the electrical key transmitter sub-assembly near the power switch.
   2. While the key cancel function (entry cancel function) is on, check that all functions of the smart key system cannot be operated.
9. Check the answer-back function (hazard warning light flashing and buzzer sounding).

   Entry Operation	Wireless Buzzer	Hazard Warning Light
   Entry Door Lock	Sounds once	Flashes once
   Entry Door Unlock	Sounds twice	Flashes twice
   Entry Back Door Lock	Sounds once	Flashes once
   Entry Back Door Unlock	Sounds twice	Flashes twice

HINT:

• With key diagnostic mode, it is possible to check if the electrical key transmitter sub-assembly is operating properly with the selected electrical key antenna and within the selected detection area by the sounding of the wireless buzzer.
• If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

1. Enter the following menus: Body Electrical / Smart Key / Utility / Communication Check (Key Diag Mode).
2. Inspect the appropriate item according to the following table.

   Tester Display	Inspection Item
   [CH1/CH2] Overhead + Driver Side*1	Front door outside handle assembly (electrical key antenna) [for Driver Side]
   [CH1] Overhead + Driver Side*1
   [CH2] Overhead + Driver Side*1
   [CH1/CH2] Overhead + Passenger Side*2	Front door outside handle assembly (electrical key antenna) [for Front Passenger Side]
   [CH1] Overhead + Passenger Side*2
   [CH2] Overhead + Passenger Side*2
   [CH1/CH2] Overhead + Front Room*3	No. 1 indoor electrical key antenna assembly (front floor)
   [CH1] Overhead + Front Room*3
   [CH2] Overhead + Front Room*3
   [CH1/CH2] Overhead + Rear Room*4	No. 2 indoor electrical key antenna assembly (steering column)
   [CH1] Overhead + Rear Room*4
   [CH2] Overhead + Rear Room*4
   [CH1/CH2] Overhead + Back Door*5	Electrical key antenna (outside luggage)
   [CH1] Overhead + Back Door*5
   [CH2] Overhead + Back Door*5
   [CH1/CH2] Overhead + Back Door (inside)*6	No. 3 indoor electrical key antenna assembly (rear floor)
   [CH1] Overhead + Back Door (inside)*6
   [CH2] Overhead + Back Door (inside)*6
   [CH1/CH2] Immobilizer Amp*7	Amplifier (power switch)
   [CH1] Immobilizer Amp*7
   [CH2] Immobilizer Amp*7

   • [CH1]: Channel 1 is set.
   • [CH2]: Channel 2 is set.
   • [CH1/CH2]: Channel 1 and 2 switches automatically at a specific interval*.

     *: If the electrical key transmitter sub-assembly is detected with either channel 1 or 2, the buzzer sounds.

3. Bring the electrical key transmitter sub-assembly near the selected electrical key antenna and check that the wireless door lock buzzer sounds.

   HINT:

   The buzzer sounds in short, repeated beeps for all items except "Overhead + Rear Room"*4. For "Overhead + Rear Room"*4, the buzzer sounds in one long, continuous beep.

   1. *1: Front door outside handle assembly (for Driver Side)
      Fig 10: Hold The Electrical Key Transmitter Sub-Assembly At The Same Height

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Approximately 0.3 m (0.984 ft.)

      HINT:

      • Hold the electrical key transmitter sub-assembly at the same height as the front door outside handle assembly in the position shown in the illustration.
      • *2: Perform the same inspection for the front passenger side.
4. *3: No. 1 indoor electrical key antenna assembly (front floor)
   Fig 11: Inspection Point

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   HINT:

   Place the electrical key transmitter sub-assembly on the front seat cushion of the driver seat or front passenger seat.

5. *4: No. 2 indoor electrical key antenna assembly (steering column)
   Fig 12: Inspection Point

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   HINT:

   Place the electrical key transmitter sub-assembly on the steering column.

6. *5: Electrical key antenna (outside luggage)
   Fig 13: Electrical Key Transmitter Sub-Assembly On The Steering Column

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Approximately 0.7 m (2.30 ft.)

   HINT:

   Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and align it with the center of the rear of the vehicle, as shown in the illustration.

7. *6: No. 3 indoor electrical key antenna (rear floor)
   Fig 14: Inspection Point

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   HINT:

   Place the electrical key transmitter sub-assembly in the luggage compartment. Even if the electrical key transmitter sub-assembly is in the luggage compartment, the buzzer may not sound.

8. *7: Amplifier (power switch)
   Fig 15: Holding Transmitter Near The Power Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   While facing the logo side of the electrical transmitter sub-assembly towards the power switch, hold the transmitter near the power switch.
