System Diagram [12/2013 - ]

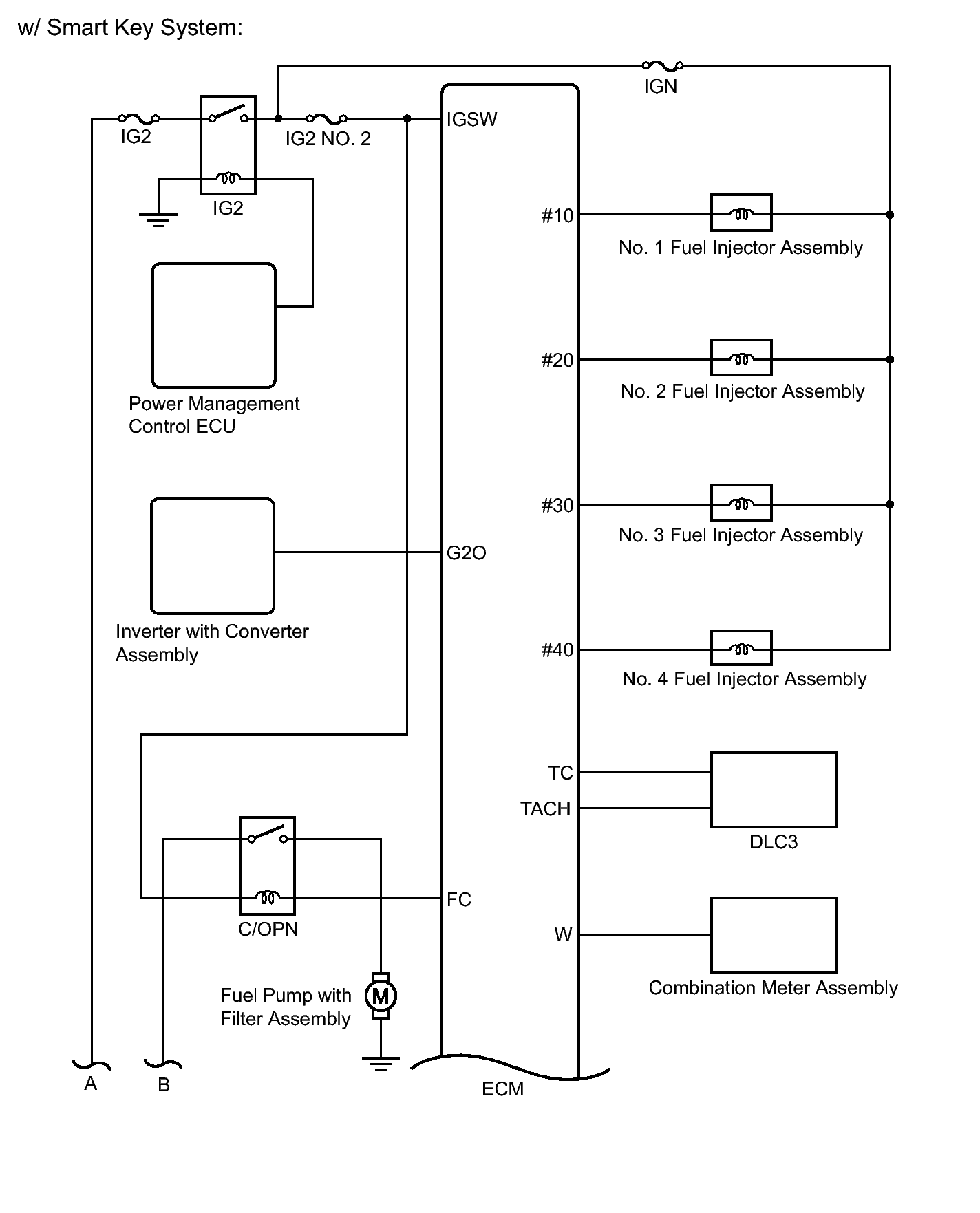

Fig 1: Identifying SFI System Diagram (1 Of 5)
GTY344067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

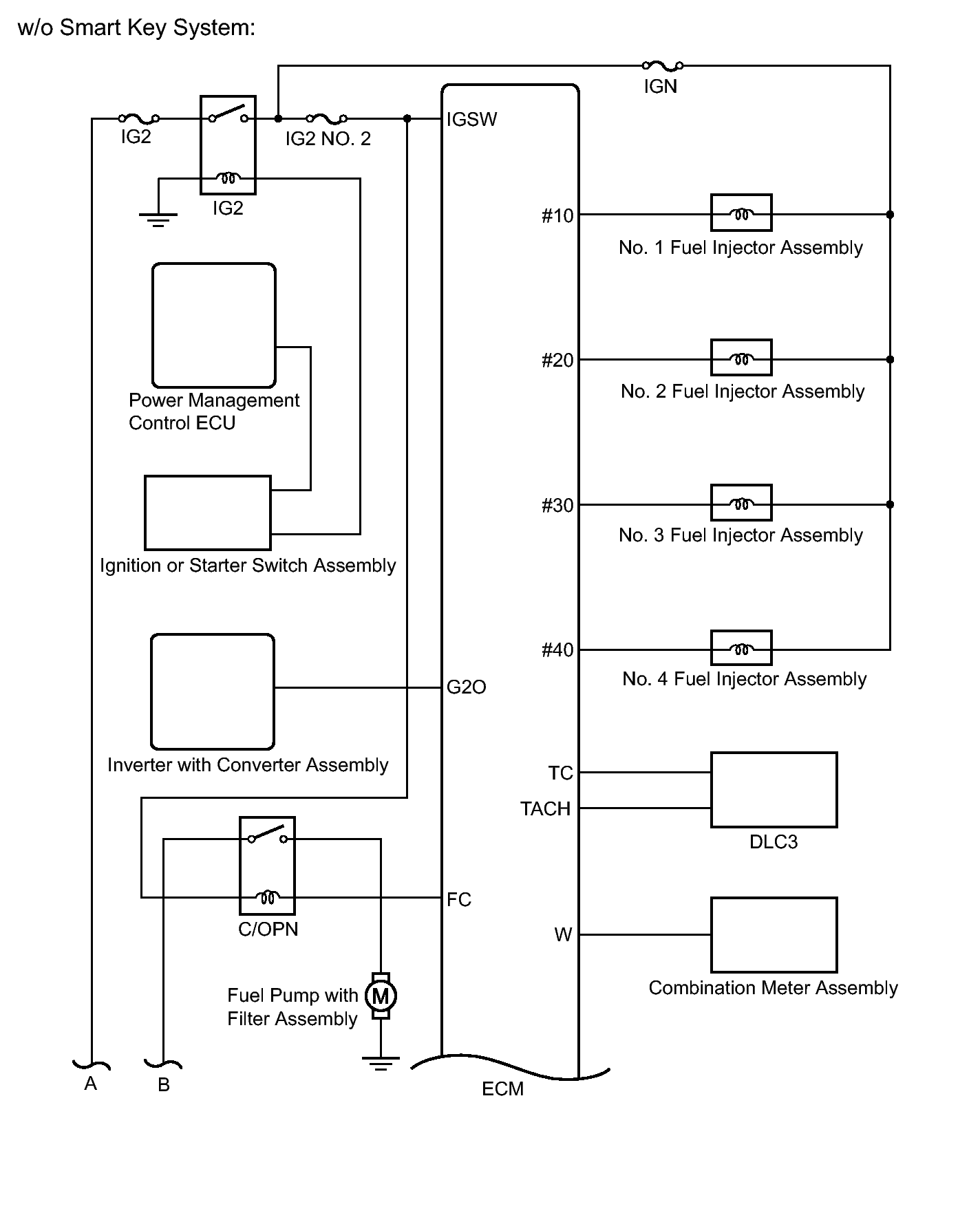

Fig 2: Identifying SFI System Diagram (2 Of 5)
GTY324350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

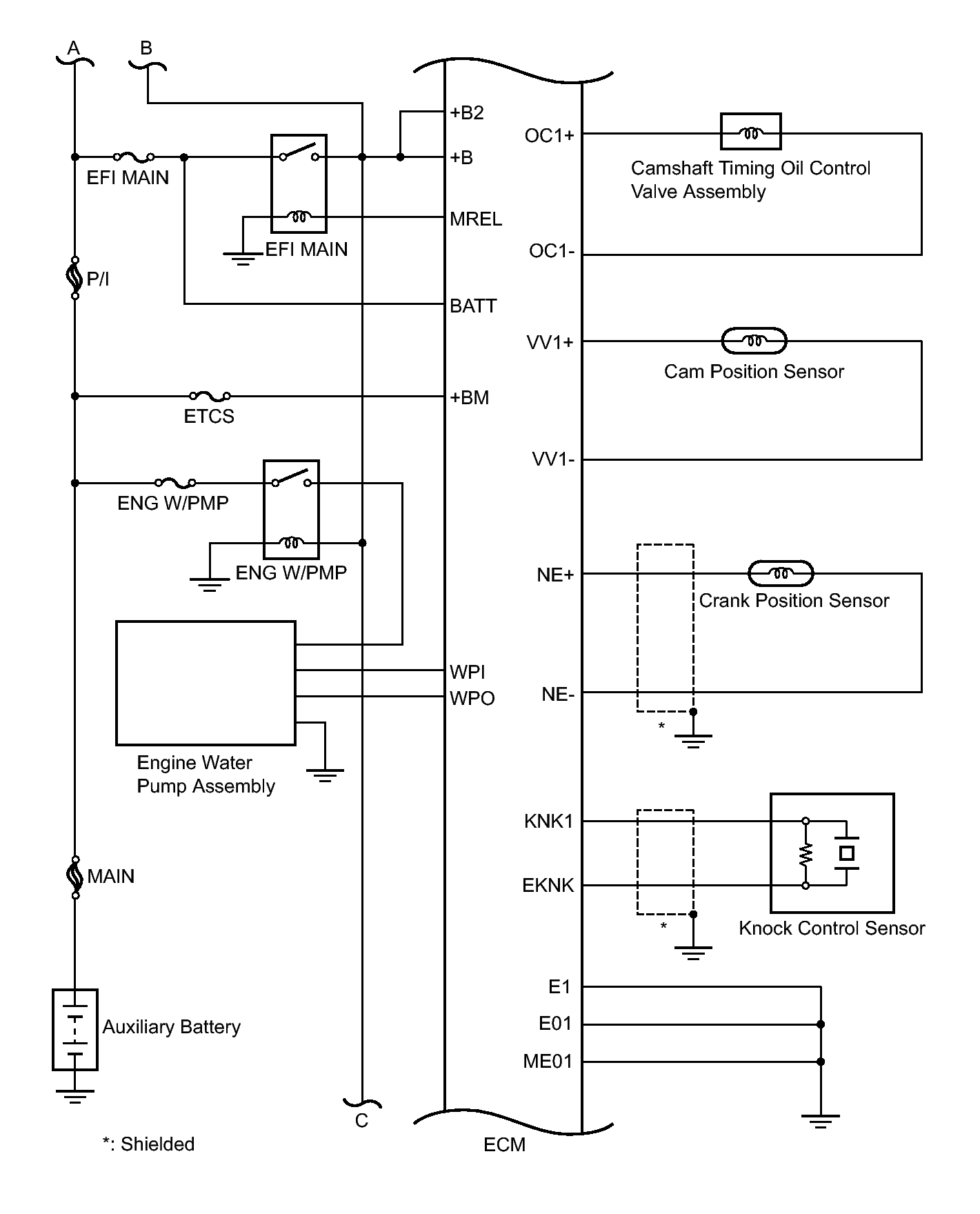

Fig 3: Identifying SFI System Diagram (3 Of 5)
GTY334077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

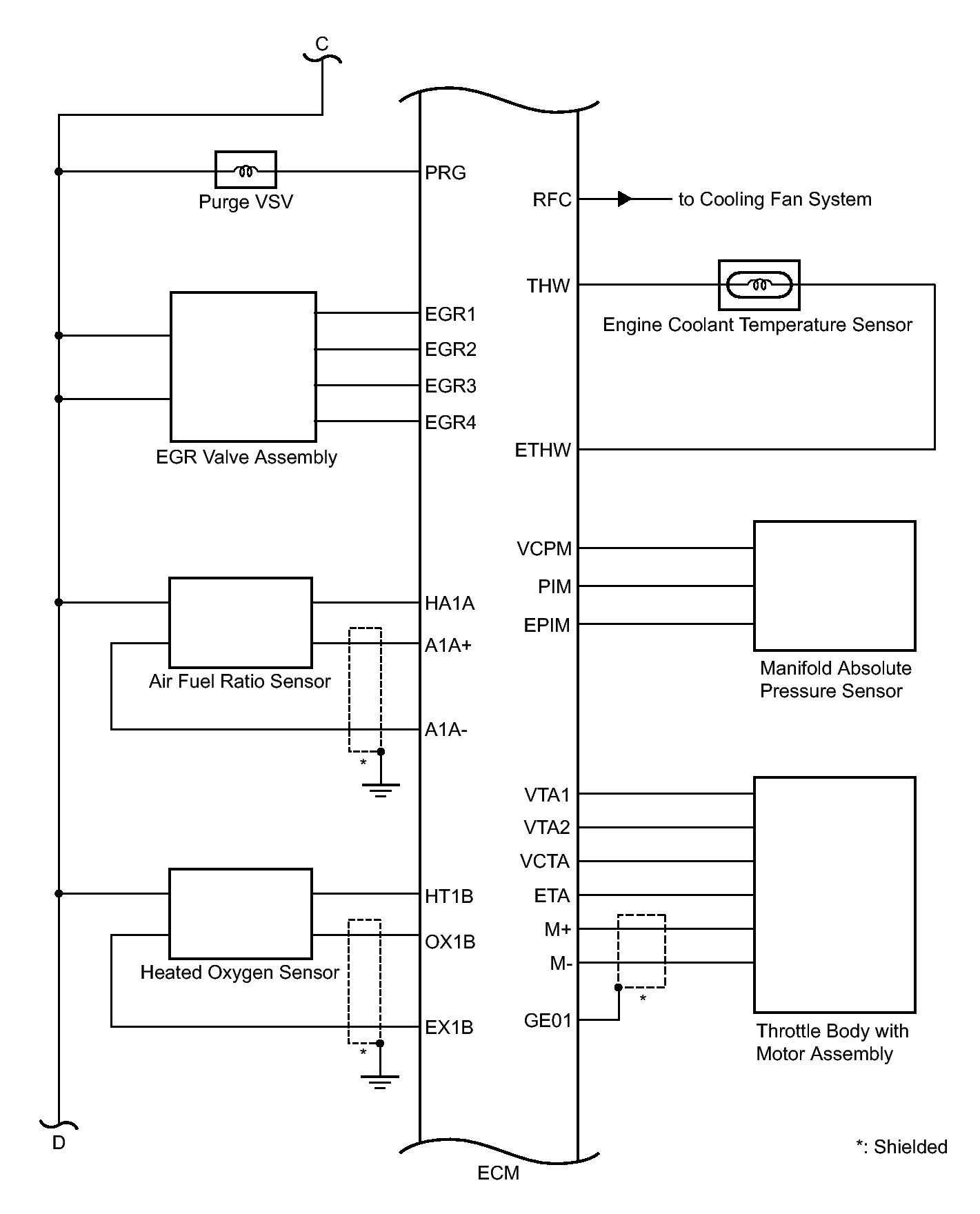

Fig 4: Identifying SFI System Diagram (4 Of 5)
GTY361307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

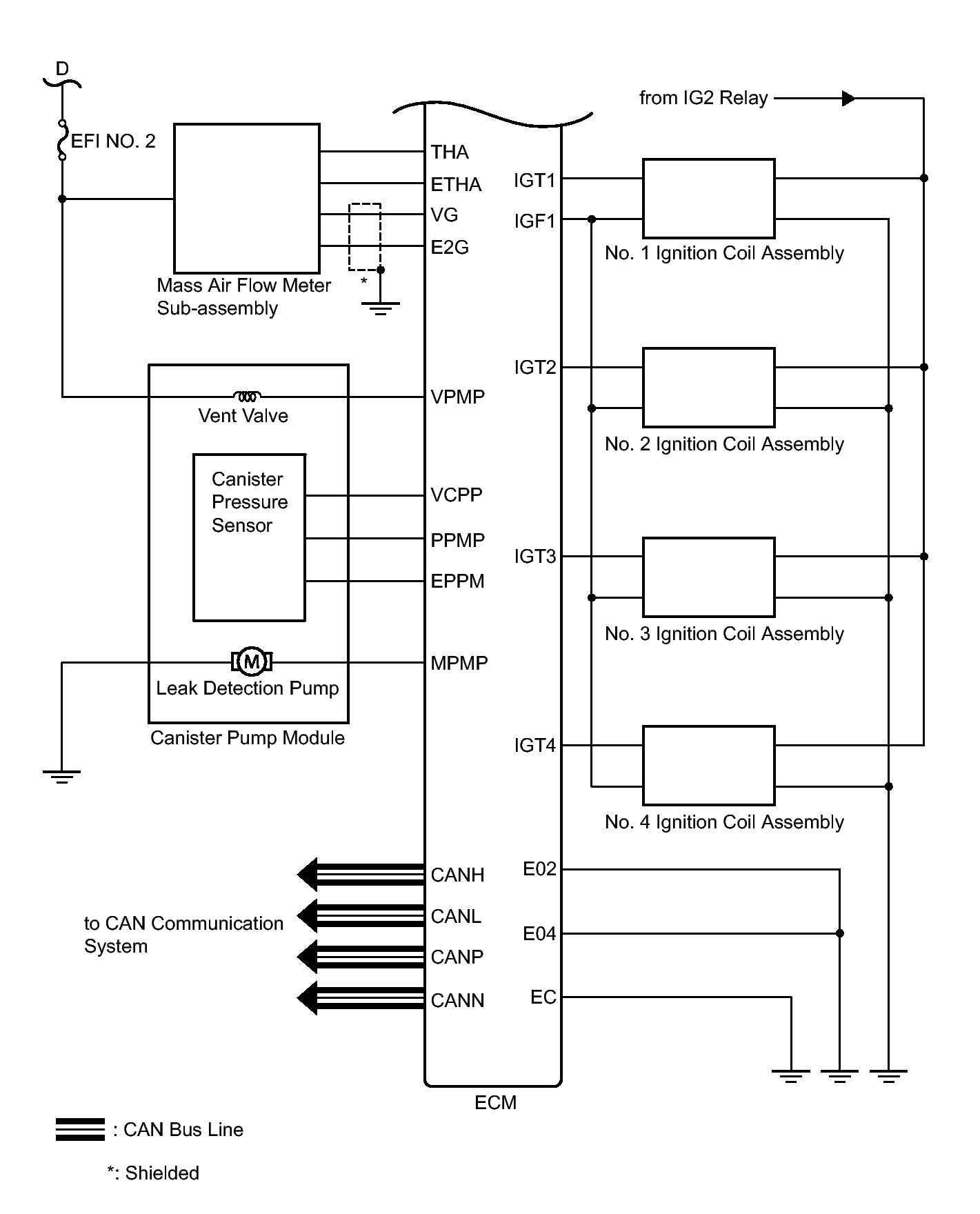

Fig 5: Identifying SFI System Diagram (5 Of 5)
GTY335321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
