System Diagram [10/2013 - ]
WARNING:
This page is about a different variant/trim than selected.

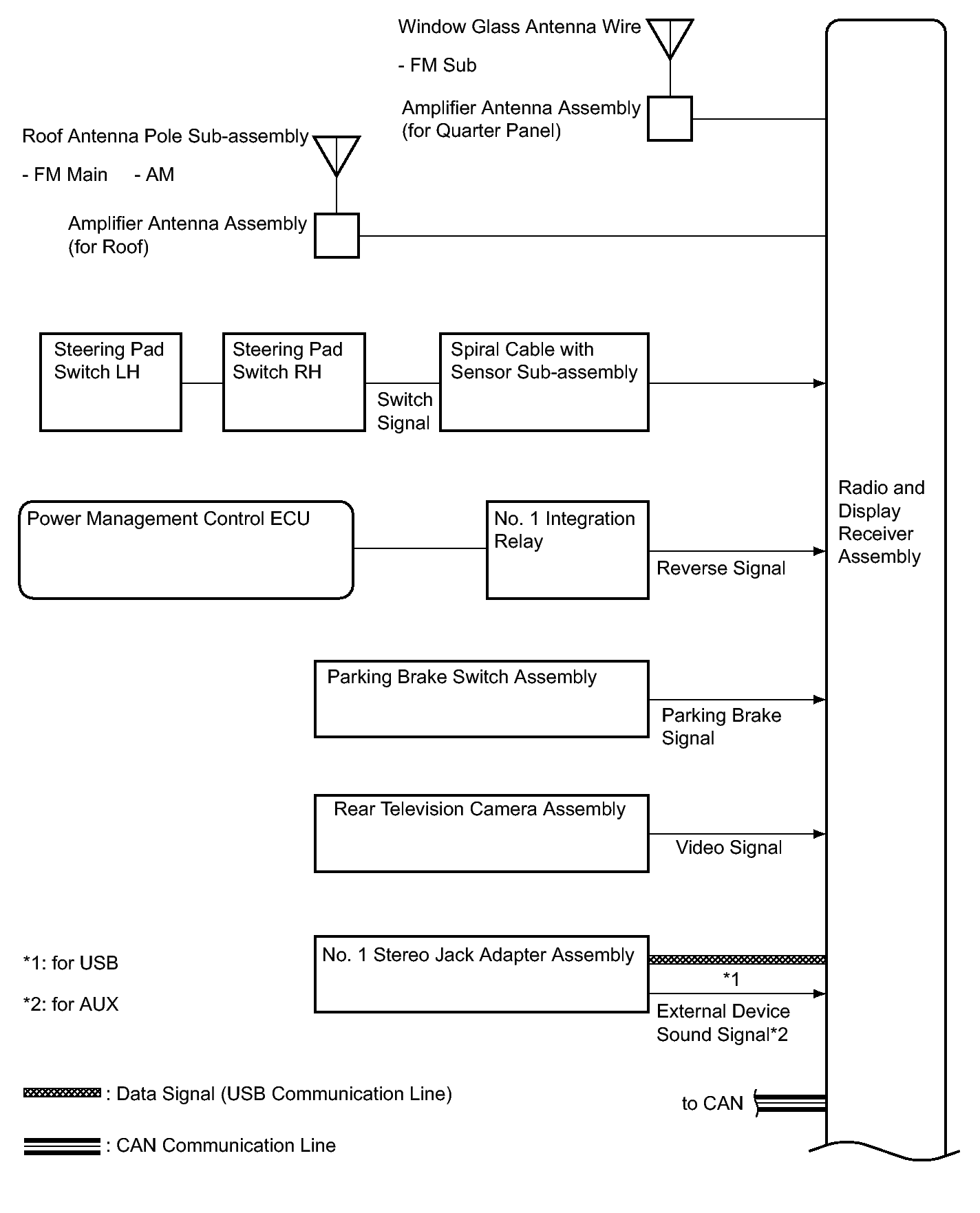

Fig 1: Audio / Visual System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

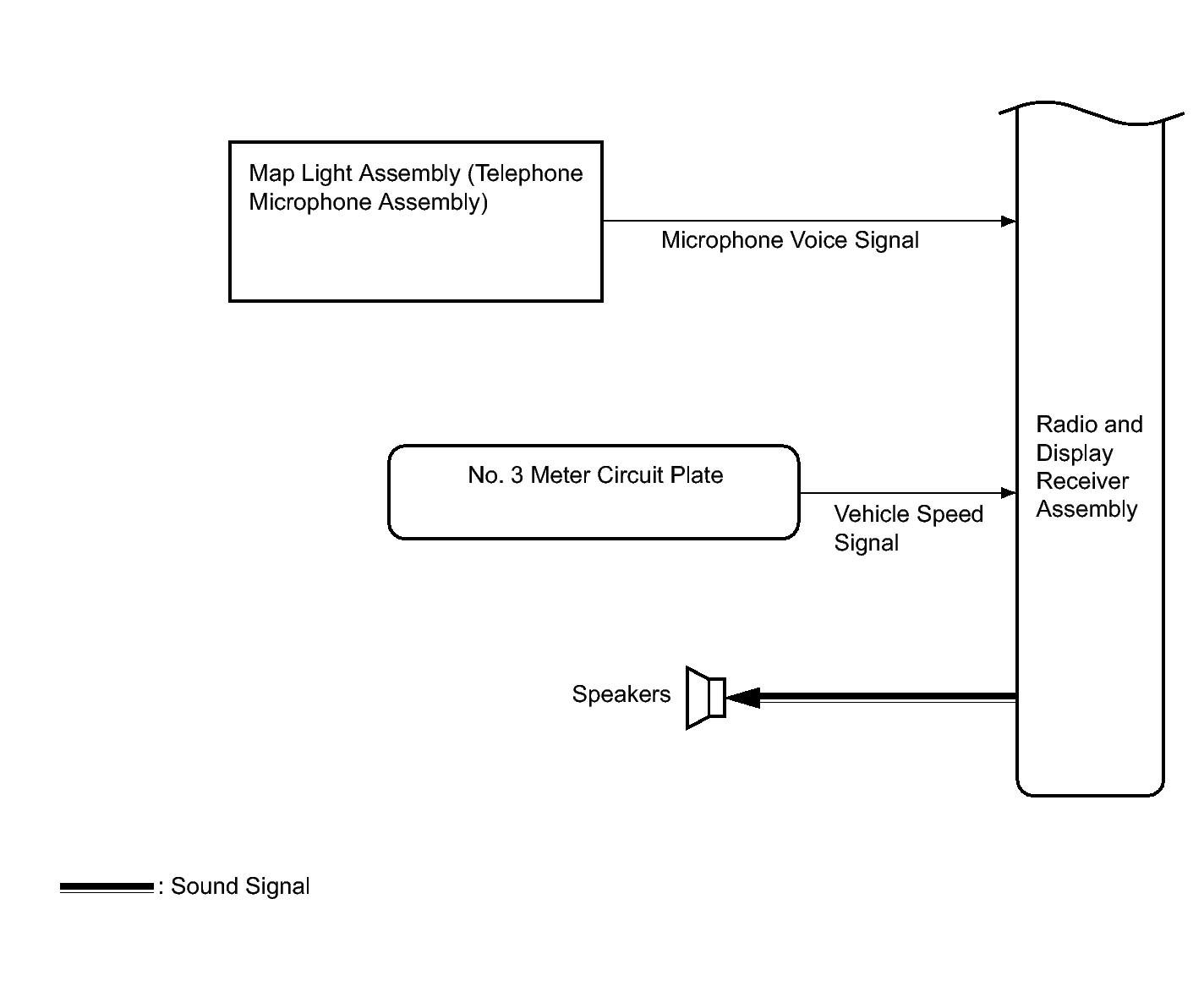

Fig 2: Audio / Visual System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
