Installation [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL DCM (TELEMATICS TRANSCEIVER)
  2. INSTALL NO. 1 TELEPHONE BRACKET
    1. Install the No. 1 telephone bracket with the 2 screws.

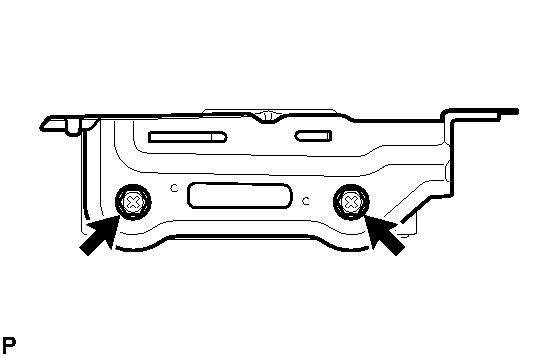

      Fig 1: Identifying No. 3 Telephone Bracket & Screws
      GTY235798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 TELEPHONE BRACKET
    1. Install the No. 2 telephone bracket with the 2 screws.

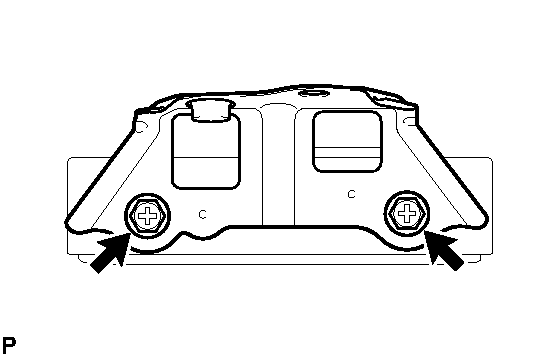

      Fig 2: Identifying No. 2 Telephone Bracket & Screws
      GTY225215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. Install the DCM (telematics transceiver) with bracket with the 3 bolts.

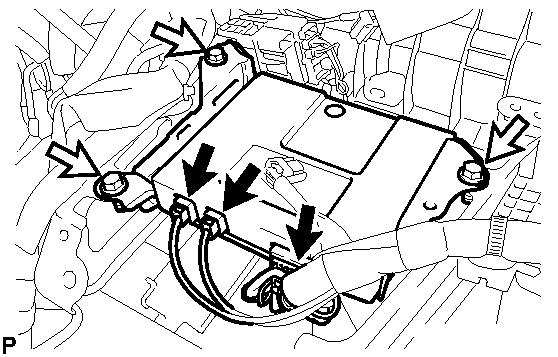

      Fig 3: Identifying DCM (Telematics Transceiver), Bracket, Connectors & Bolts
      GTY235316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 3 connectors.
  5. INSTALL BACK-UP BATTERY WITH BRACKET  See step  3
  6. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)  . Refer to INSTALLATION [10/2013 - ] - Step 5
  7. INSTALL NAVIGATION RECEIVER WITH BRACKET (w/ Navigation System)  . Refer to INSTALLATION [10/2013 - ] - Step 6
  8. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 27
  9. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION [10/2013 - ] - Step 28
  10. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 30
  11. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 31
  12. DCM ACTIVATION
    1. When replacing the DCM (telematics transceiver), perform DCM activation. Refer to DCM ACTIVATION [10/2013 - ] .
