Installation [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

INSTALL BATTERY SMART UNIT
WARNING:
Wear insulated gloves.
1. Install the battery smart unit with the 2 nuts.

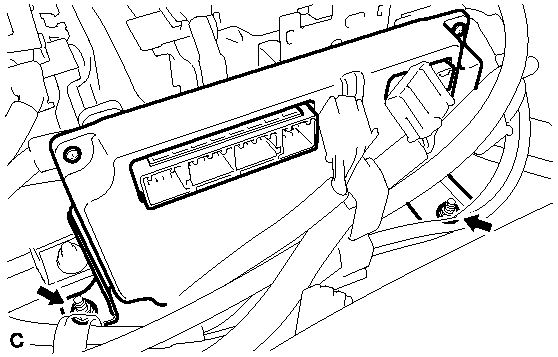

  Fig 1: Identifying Battery Smart Unit & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

  NOTE:
  Check color of the label.

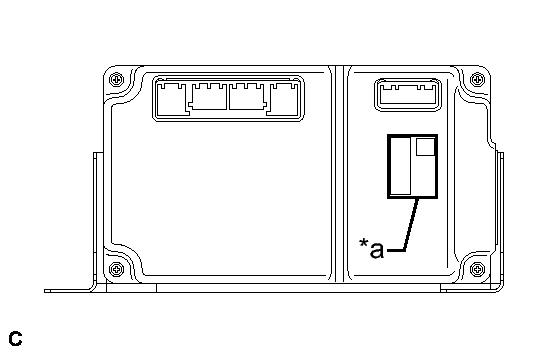

  Fig 2: Identifying Black Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Black Label
2. Be sure to connect the No. 3 hybrid vehicle battery pack cable to the correct terminals.

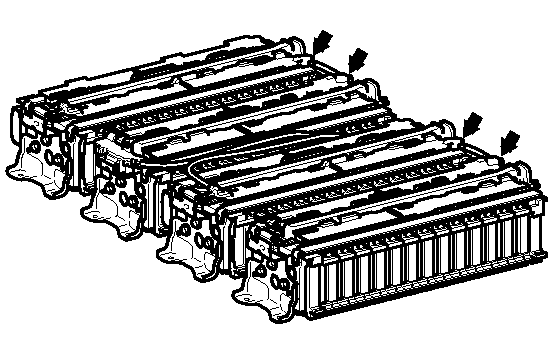

  Fig 3: Identifying Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
  NOTE:
  - The terminal cover should be connected securely.
  - Make sure to connect the No. 3 hybrid vehicle battery pack cable securely. If the power switch is turned on (READY) without the No. 3 hybrid vehicle battery pack cable connected, the inner circuit of the battery smart unit will be damaged due to high voltage supplied through the battery block voltage detection circuit.
3. Connect the 4 connectors to the battery smart unit.
  NOTE:
  Make sure that the connectors are connected securely.
4. Connect the 3 connectors to the battery smart unit.
INSTALL UPPER HYBRID BATTERY COVER SUB-ASSEMBLY
Refer to INSTALLATION [10/2013 - ]
