Installation [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

INSTALL CRUISE CONTROL MAIN SWITCH
1. Connect the connector.

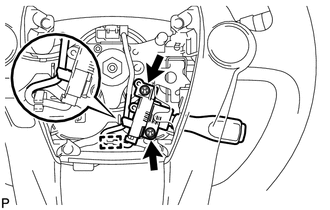

  Fig 1: Identifying Cruise Control Main Switch, Screws, Connector & Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cruise control main switch with the 2 screws as shown in the illustration.
3. Engage the clamp.
INSTALL STEERING PAD
Refer to INSTALLATION [10/2013 - ]
