System Diagram [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

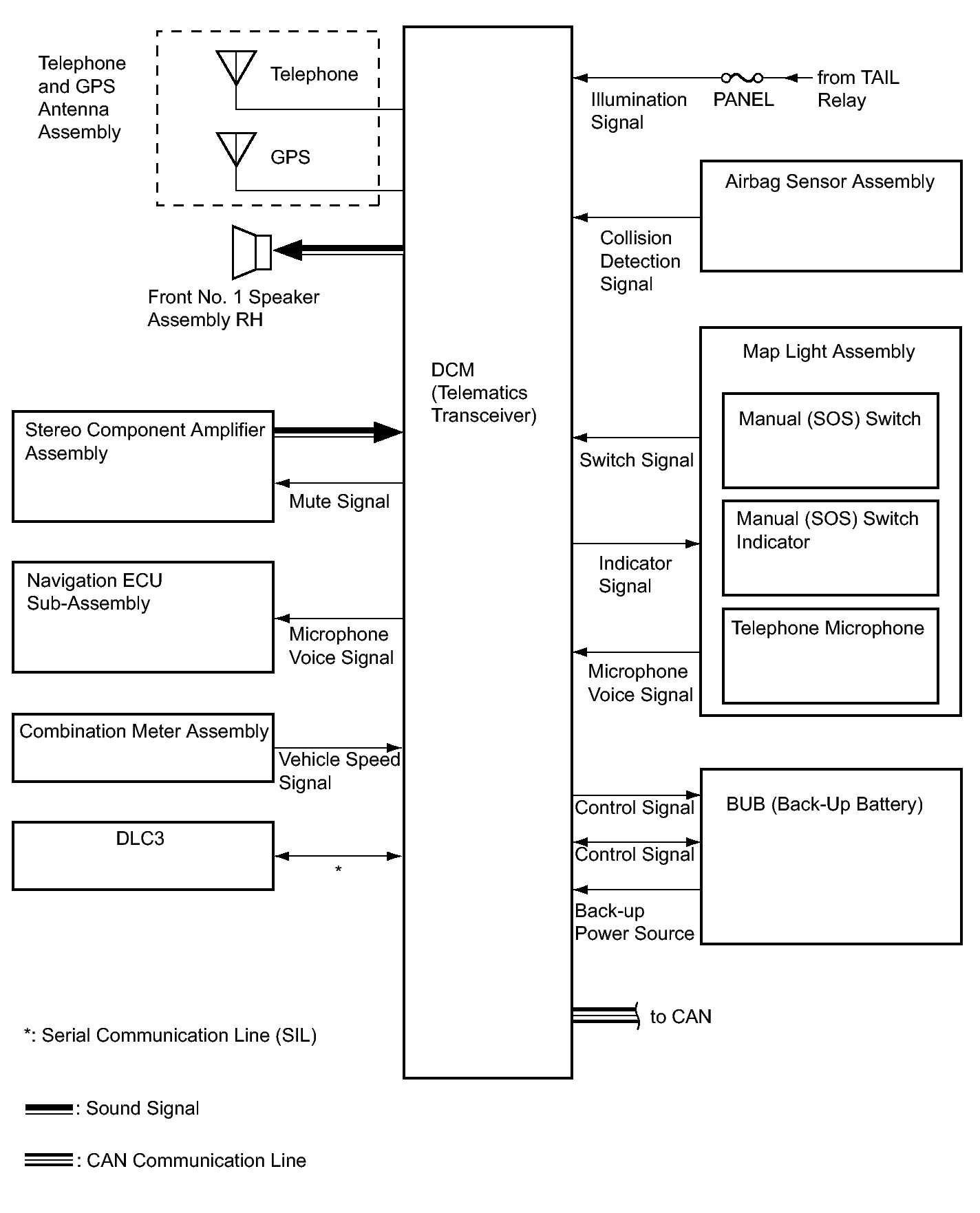

Fig 1: Safety Connect System Diagram
GTY435166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
