Automatic Headlight Beam Level Control System
>>
Parts Location [10/2013 - ]
>>
Illustration
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Parts Location [10/2013 - ]: Illustration
WARNING:
This page is about a different variant/trim than selected.

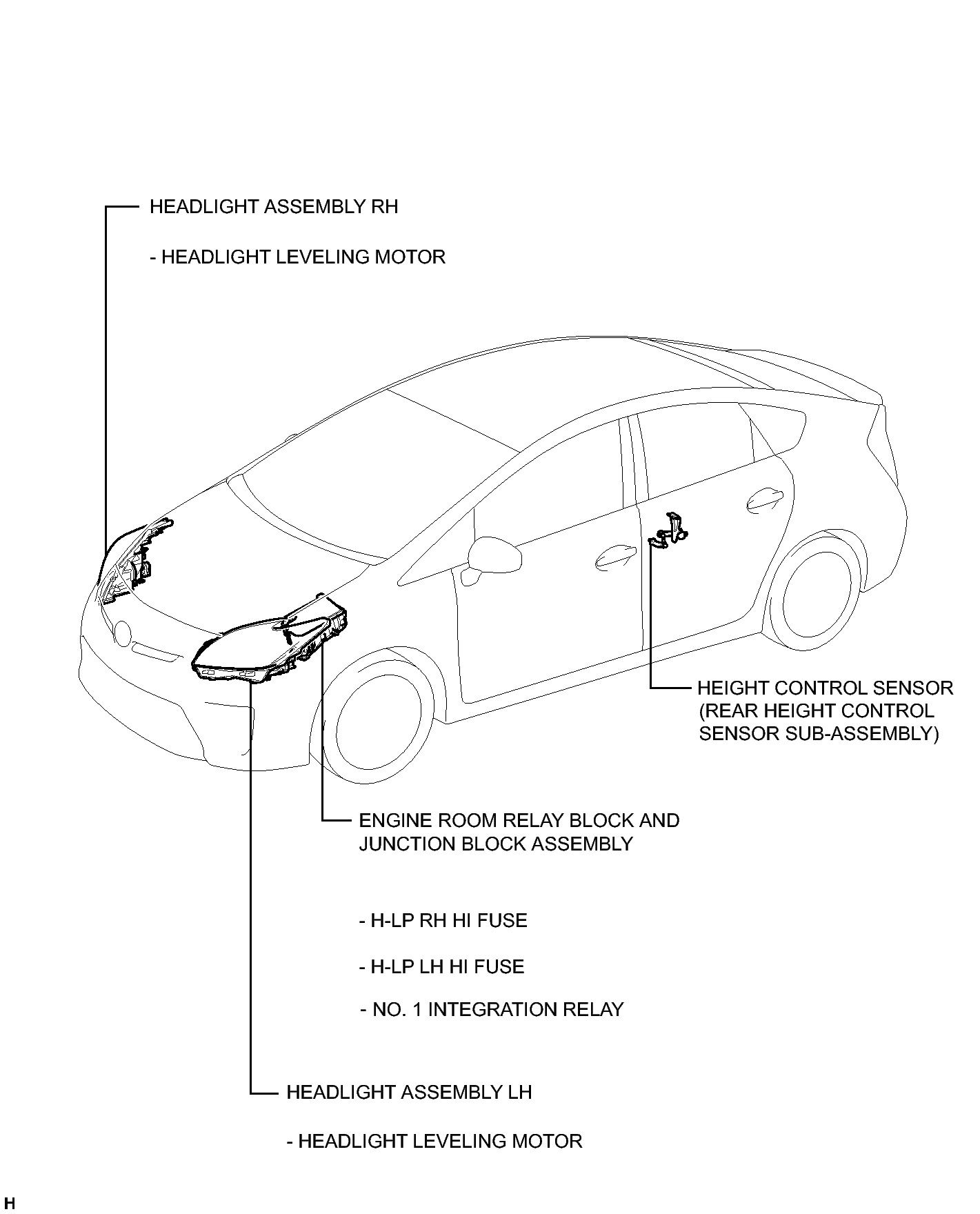

Fig 1: Automatic Headlight Beam Level Control System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

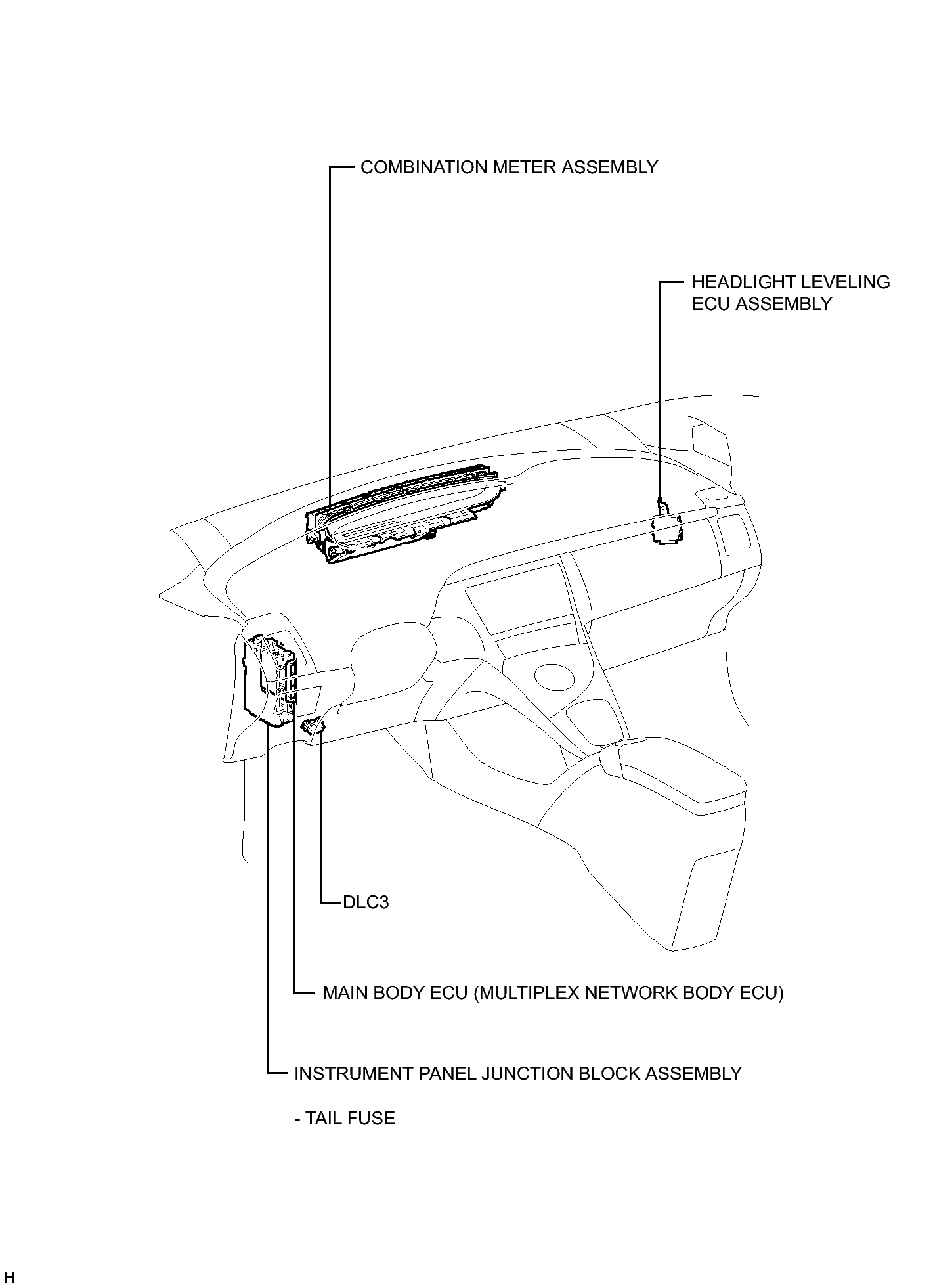

Fig 1: Automatic Headlight Beam Level Control System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
