Installation [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

INSTALL NO. 1 INTEGRATION RELAY
1. Connect the 3 connectors.

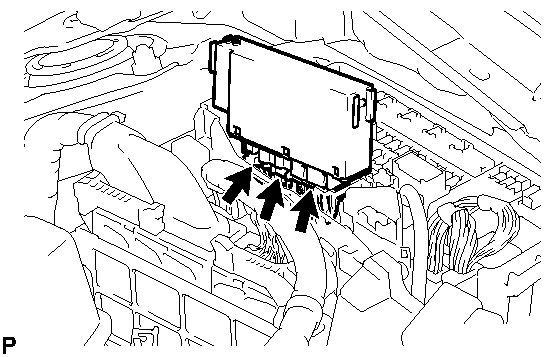

  Fig 1: Locating Integration Relay Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws to install the No. 1 integration relay as shown in the illustration.

  Fig 2: Installing No. 1 Integration Relay & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RELAY BLOCK COVER
1. Engage the 3 claws to install the No. 1 relay block cover.

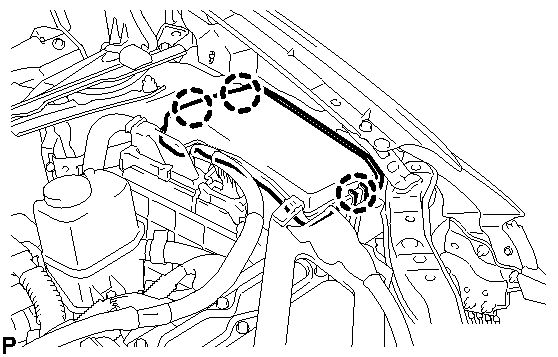

  Fig 3: Locating No. 1 Relay Block Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [10/2013 - ] .
