DTC U0110-159: Lost Communication with Drive Motor Control Module "A"; DTC U0110-656: Lost Communication with Drive Motor Control Module "A"; DTC U0110-657: Lost Communication with Drive Motor Control Module "A" [10/2013 - ]: Wiring Diagram

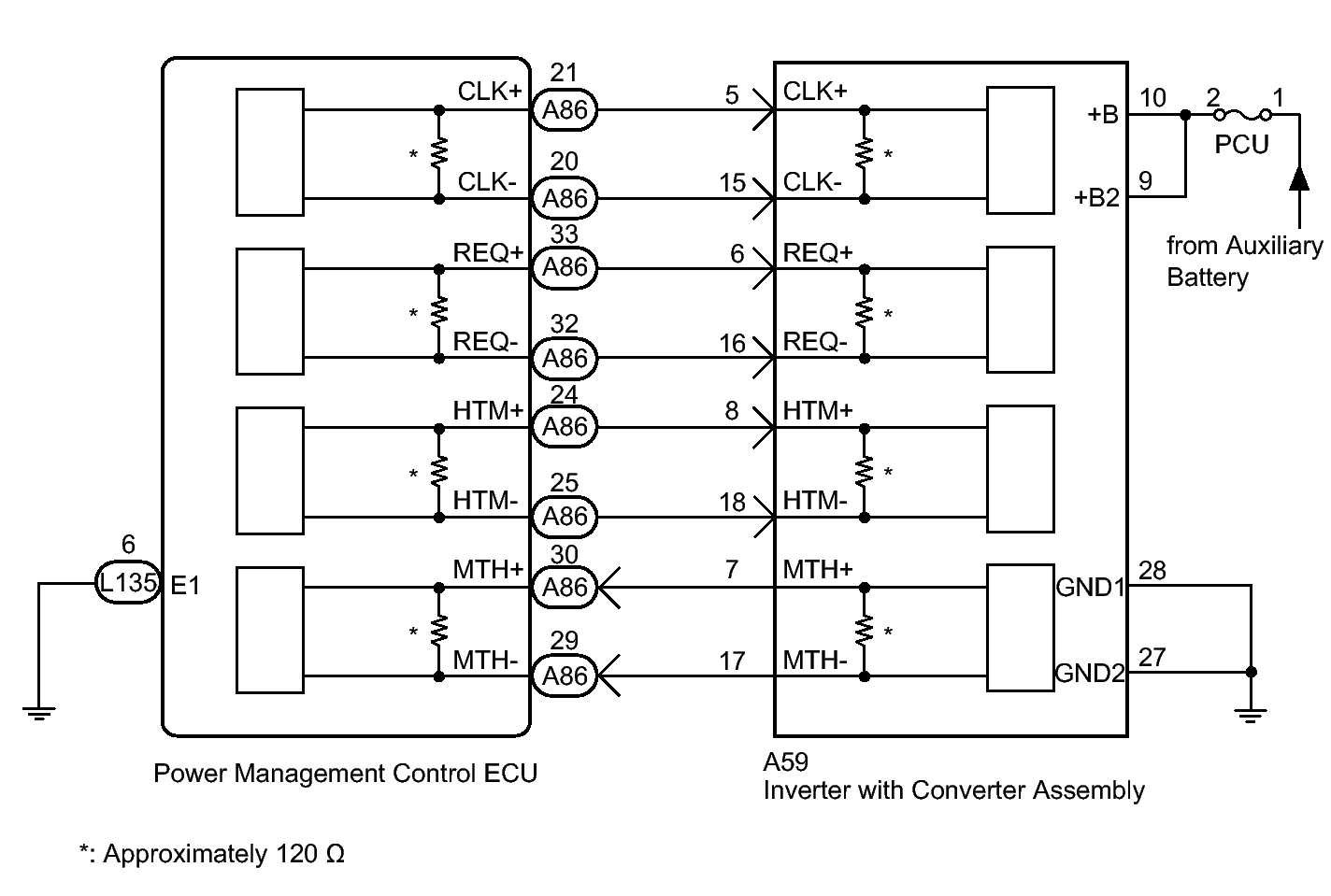

Fig 1: Identifying Drive Motor Control Module Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
