In-Line Connector End View (AL2)

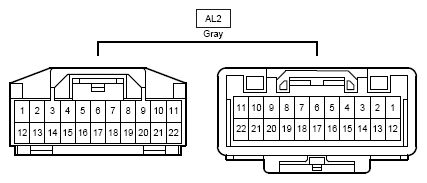

Fig 1: In-Line Connector End View (AL2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
