Installation [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 1 TELEPHONE BRACKET
  2. INSTALL BACK-UP BATTERY
    1. Install the back-up battery to the No. 1 telephone bracket as shown in the illustration.

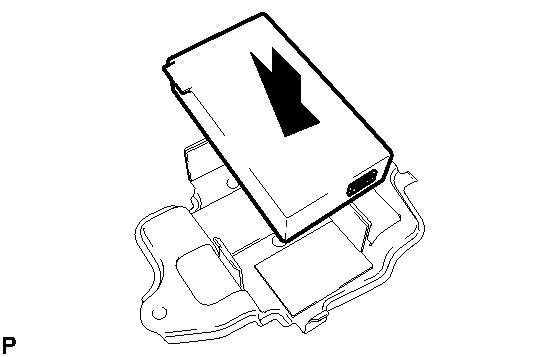

      Fig 1: Installing Back-Up Battery To No. 1 Telephone Bracket
      GTY216376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BACK-UP BATTERY WITH BRACKET
    1. Engage the 2 guides.

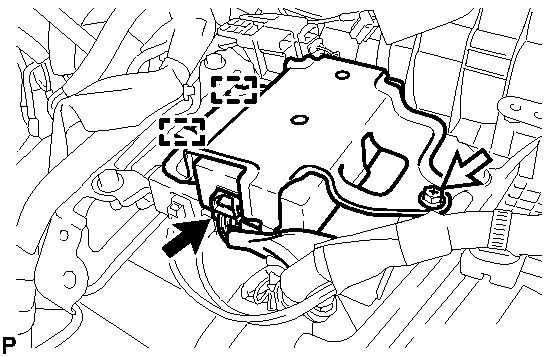

      Fig 2: Locating Back-Up Battery With Bracket, Connector, Bolt & Guides
      GTY225789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the back-up battery with bracket with the bolt.
    3. Connect the connector.
  4. INSTALL RADIO RECEIVER WITH BRACKET (w/o Navigation System)  . Refer to INSTALLATION [10/2013 - ] - Step 10
  5. INSTALL NAVIGATION RECEIVER WITH BRACKET (w/ Navigation System)  . Refer to INSTALLATION [10/2013 - ] - Step 6
  6. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 27
  7. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION [10/2013 - ] - Step 28
  8. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 30
  9. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 31
