SMART KEY SYSTEM (for Start Function)
>>
DTC U0293: Lost Communication with HV ECU [10/2013 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC U0293: Lost Communication with HV ECU [10/2013 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

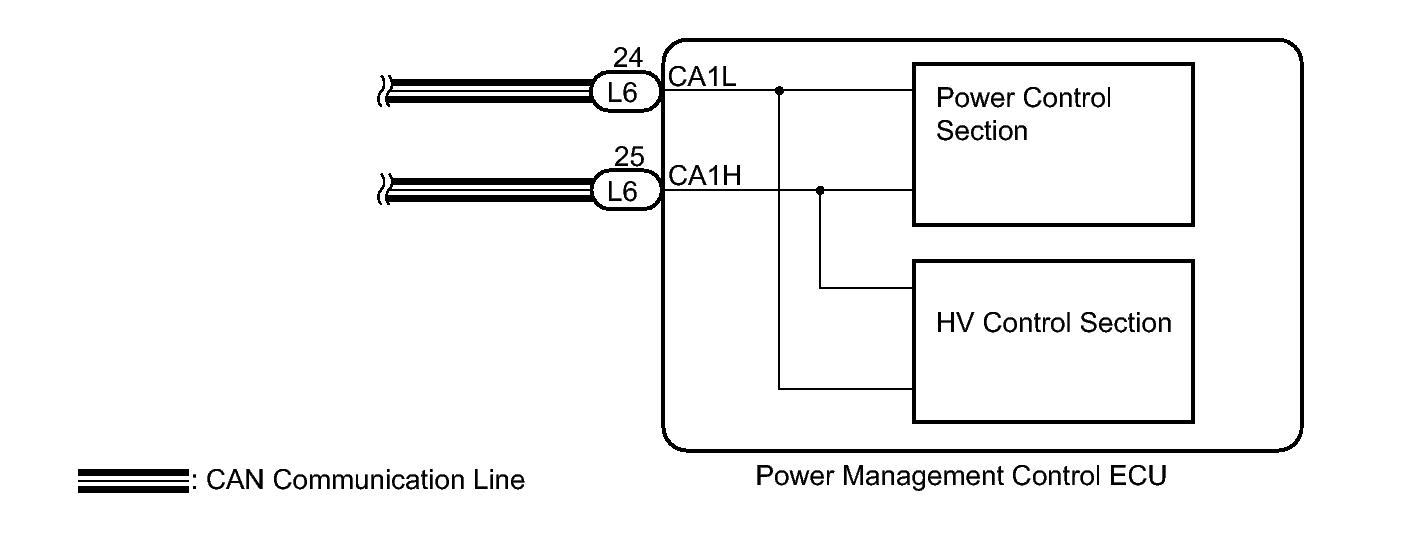

Fig 1: View Of Power Management Control ECU Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
