All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [10/2013 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

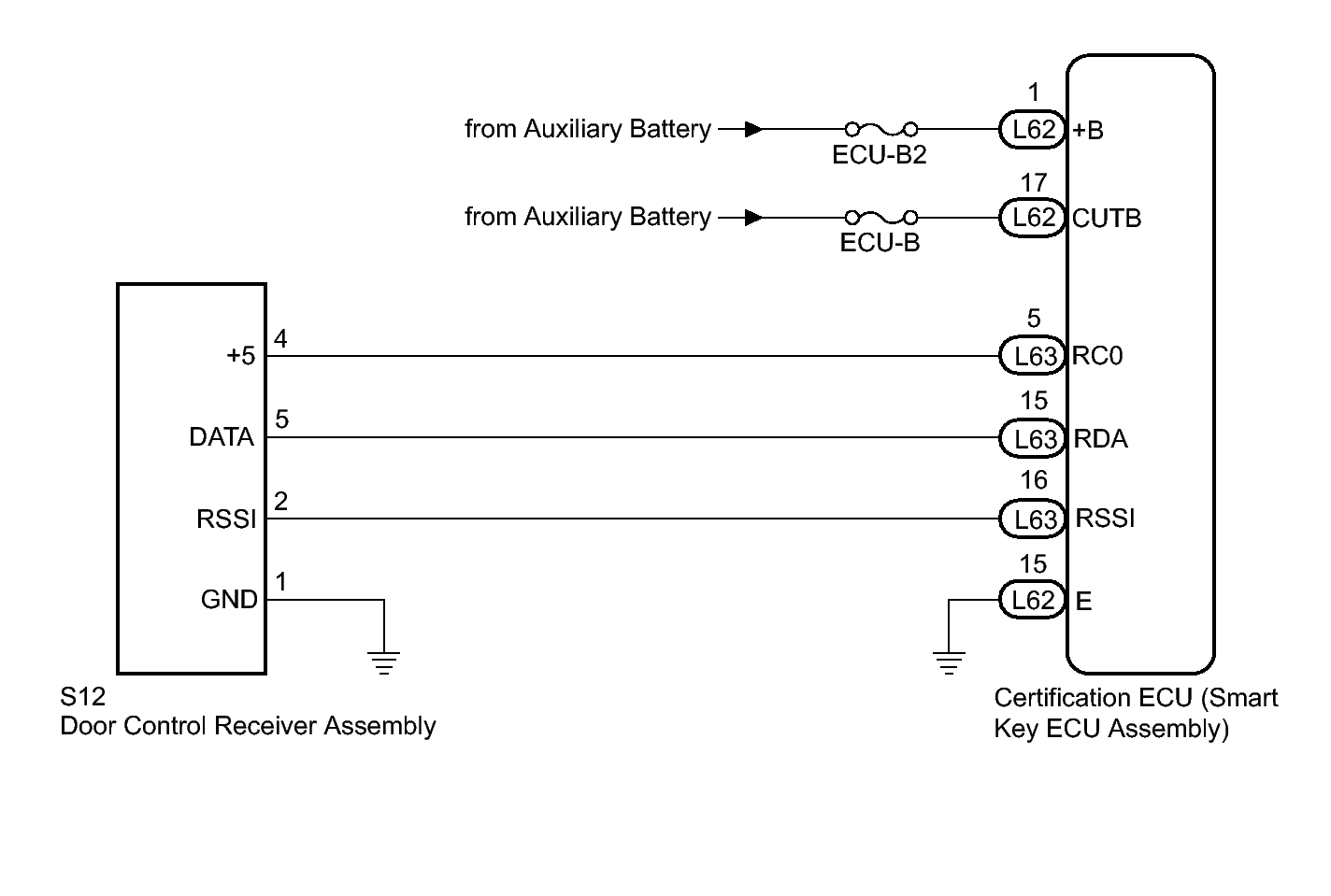

Fig 1: Door Entry Lock/Unlock Wiring Diagram
GTY379370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
