System Diagram [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

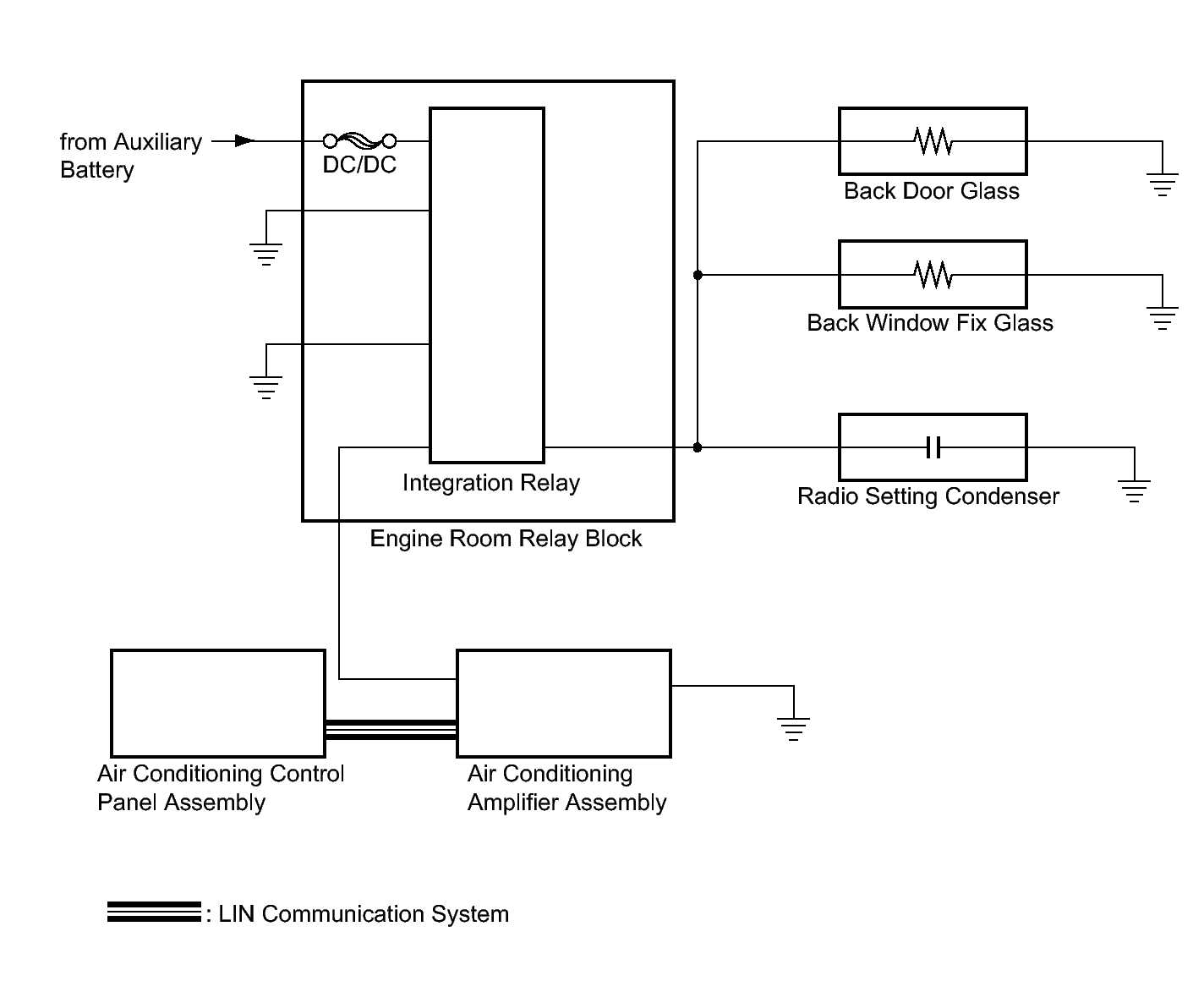

Fig 1: Window Defogger System Wiring Diagram
GTY455534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Air Conditioning Control Panel Assembly Air Conditioning Amplifier Assembly Rear window defogger switch signal LIN
