Mirror Heater does not Operate with Rear Defogger Switch [10/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- PERFORM ACTIVE TEST USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical /Air Conditioner / Active Test.
- Perform an Active Test according to the display on the Techstream.AIR CONDITIONER
Tester Display Test Part Control Range Diagnostic Note Mirror Heater Relay Mirror heater ON / OFF - Result
Result Proceed to Mirror heater operation on both mirrors is not normal A Mirror heater operation on RH side mirror is not normal B Mirror heater operation on LH side mirror is not normal C
B → See step 8
C → See step 9
A: Go to next step
- CHECK DEFOGGER SYSTEM
- Check the rear window defogger operation.
OK
The rear window defogger operated normally.
NG → See step 13
OK: Go to next step
- Check the rear window defogger operation.
- CHECK HARNESS AND CONNECTOR (INTEGRATION RELAY - BODY GROUND)
- Disconnect the integration relay connector.
- Measure the resistance according to the value(s) in the table below
Standard Resistance

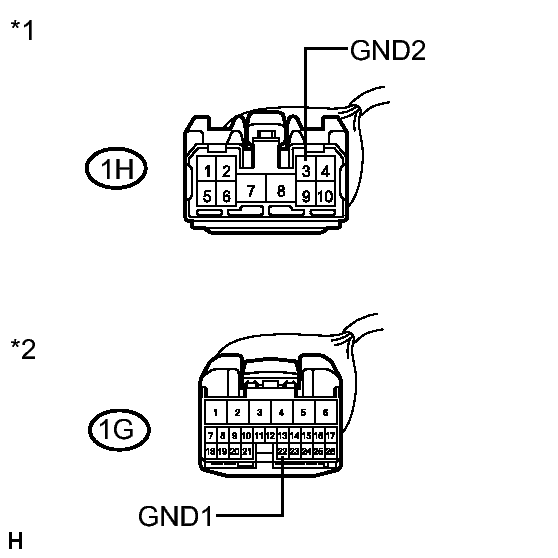

Tester Connection Condition Specified Condition 1H-3 (GND2) - Body ground Always Below 1 Ω 1G-22 (GND1) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Integration Relay)*2 Front view of wire harness connector
(to Integration Relay)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the integration relay connector.
- CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR ASSEMBLY RH - INTEGRATION RELAY)
- Disconnect the integration relay connector.
- Disconnect the outer rear view mirror assembly RH connector.
- Measure the resistance according to the value(s) in the table below

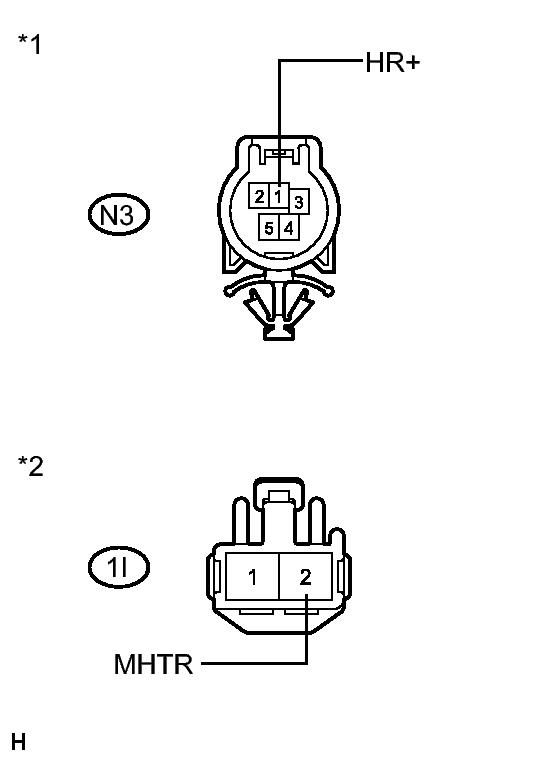

Tester Connection Condition Specified Condition 1I-2 (MHTR) - N3-1 (HR+) Always Below 1 Ω 1I-2 (MHTR) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Outer Rear View Mirror Assembly RH)*2 Front view of wire harness connector
(to Integration Relay)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the integration relay connector.
- CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR ASSEMBLY LH - INTEGRATION RELAY)
- Disconnect the integration relay connector.
- Disconnect the outer rear view mirror assembly LH connector.
- Measure the resistance according to the value(s) in the table below

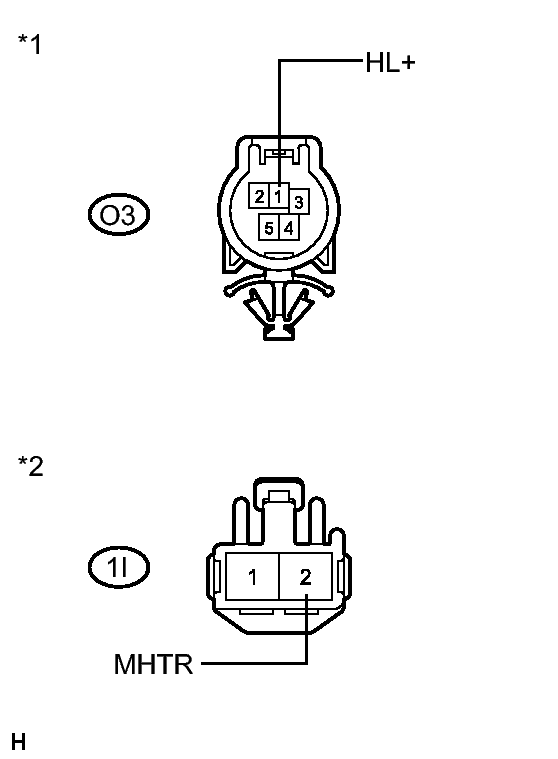

Tester Connection Condition Specified Condition 1I-2 (MHTR) - O3-1 (HL+) Always Below 1 Ω 1I-2 (MHTR) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Outer Rear View Mirror Assembly LH)*2 Front view of wire harness connector
(to Integration Relay)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the integration relay connector.
- REPLACE INTEGRATION NO. 1 RELAY
- Replace the integration relay. Refer to REMOVAL [10/2013 - ] .
OK: Go to next step
- CHECK REAR WINDOW DEFOGGER AND MIRROR HEATER
- Check the mirror heater system.
OK
Mirror heater system is normal.
NG → See step 10
OK → END (INTEGRATION RELAY WAS DEFECTIVE)
- Check the mirror heater system.
- CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH
- Remove the outer rear view mirror assembly RH. Refer to REMOVAL [10/2013 - ]
.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

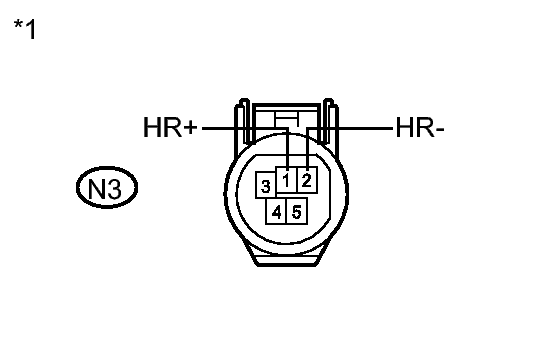

Tester Connection Condition Specified Condition N3-1 (HR+) - N3-2 (HR-) 25°C (77°F) 7.6 to 11.4 Ω TEXT IN ILLUSTRATION*1 Component without harness connected
(Outer Rear View Mirror Assembly RH)
NG → See step 11
OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (INTEGRATION RELAY - OUTER REAR VIEW MIRROR ASSEMBLY RH)
- Remove the outer rear view mirror assembly RH. Refer to REMOVAL [10/2013 - ]
.
- CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH
- Remove the outer rear view mirror assembly LH. Refer to REMOVAL [10/2013 - ]
.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

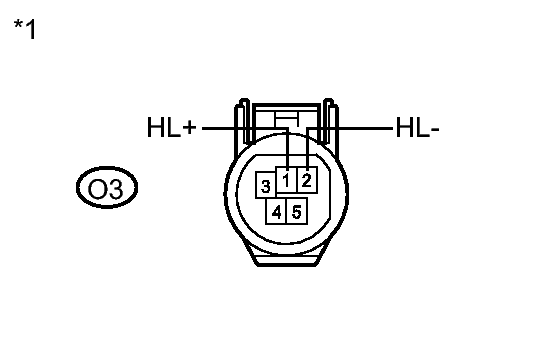

Tester Connection Condition Specified Condition O3-1 (HL+) - O3-2 (HL-) 25°C (77°F) 7.6 to 11.4 Ω TEXT IN ILLUSTRATION*1 Component without harness connected
(Outer Rear View Mirror Assembly LH)
NG → See step 12
OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (INTEGRATION RELAY - OUTER REAR VIEW MIRROR ASSEMBLY LH)
- Remove the outer rear view mirror assembly LH. Refer to REMOVAL [10/2013 - ]
.
- REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to REMOVAL [10/2013 - ]
- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH (FRONT PASSENGER SIDE). Refer to REMOVAL [10/2013 - ]
- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH (DRIVER SIDE). Refer to REMOVAL [10/2013 - ]
- GO TO WINDOW DEFOGGER SYSTEM. Refer to PROBLEM SYMPTOMS TABLE [10/2013 - ]
