Section 17 (Occupant Classification System (Diagnostics - Introduction) (Except Plug-In))
>>
Occupant Classification System
>>
System Diagram [10/2013 - ]
>>
System Diagram [10/2013 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [10/2013 - ]
WARNING:
This page is about a different variant/trim than selected.

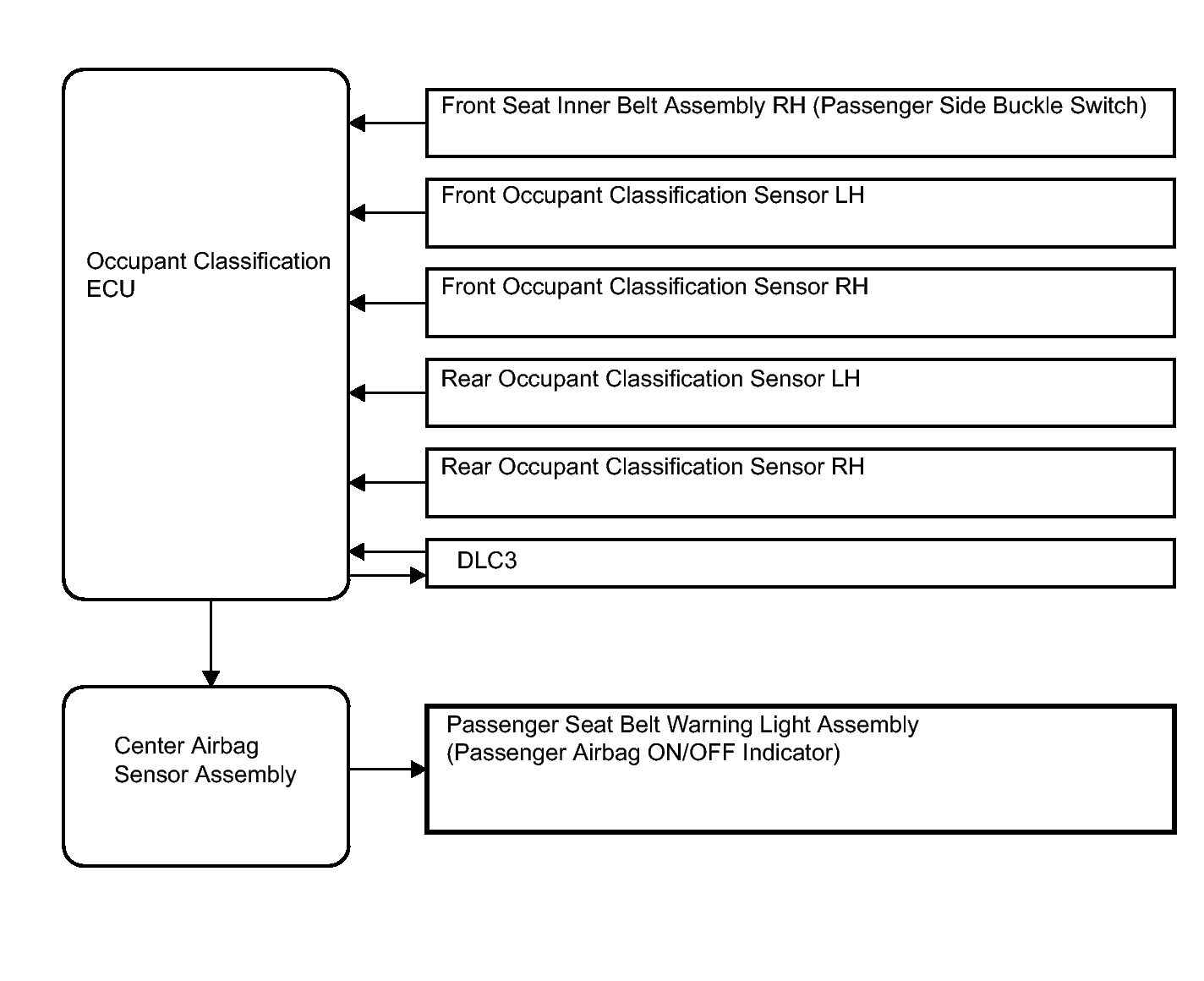

Fig 1: Occupant Classification ECU - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
