Terminals Of Ecu [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

NOTE:

Turn the power switch off before measuring the resistances between CAN bus main wires and between CAN bus branch wires.
Turn the power switch off before inspecting CAN bus wires for a ground short.
After the power switch is turned off, check that the key reminder warning system and light reminder warning system are not operating.
Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the power switch, any other switches or the doors. If any doors need to be opened in order to check connectors, open the doors and leave them open.
This article describes the standard CAN values for all CAN related components.

HINT:

Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.
Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

CAN NO. 1 JUNCTION CONNECTOR

Check the CAN No. 1 junction connector.

Connection diagram

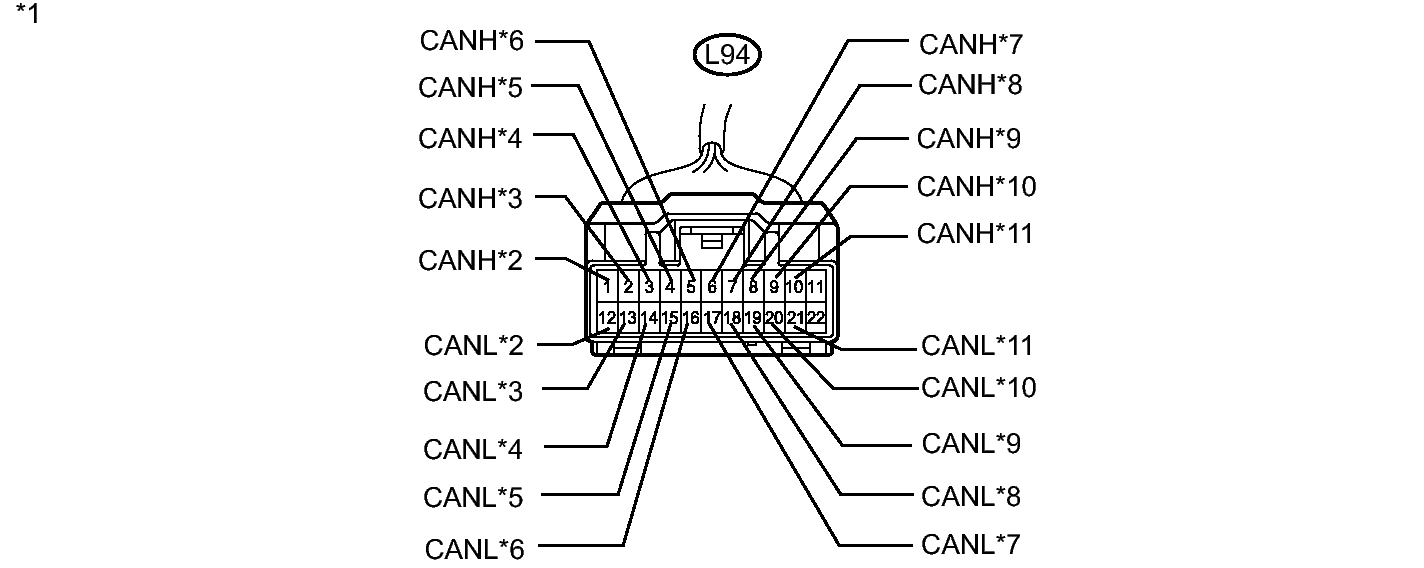

Fig 1: Identifying CAN No. 1 Junction Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to CAN No. 1 Junction Connector)	*2	to Combination Meter
*3	to Steering Angle Sensor	*4	to Main Body ECU
*5	to Power Steering ECU	*6	to DLC3
*7	to Navigation ECU Sub-assembly12 to Radio and Display Receiver Assembly*2	*8	to CAN No. 2 Junction Connector
*9	to Yaw Rate Sensor	*10	to Certification ECU
*11	to Skid Control ECU	-	-

*1: for Navigation receiver type

*2: for Radio and display type

Check the connection diagram of the components which are connected to the CAN No. 1 junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
L94-1 (CANH)	P	Combination meter
L94-12 (CANL)	W	Combination meter
L94-2 (CANH)	L	Steering angle sensor
L94-13 (CANL)	W	Steering angle sensor
L94-3 (CANH)	BR	Main body ECU
L94-14 (CANL)	W	Main body ECU
L94-4 (CANH)	R	Power steering ECU
L94-15 (CANL)	W	Power steering ECU
L94-5 (CANH)	W	DLC3
L94-16 (CANL)	Y	DLC3
L94-6 (CANH)	G	Navigation ECU Sub-assembly12 Radio and display receiver assembly*2
L94-17 (CANL)	W
L94-7 (CANH)	V	CAN No. 2 junction connector
L94-18 (CANL)	W	CAN No. 2 junction connector
L94-8 (CANH)	Y	Yaw rate sensor
L94-19 (CANL)	L	Yaw rate sensor
L94-9 (CANH)	BE	Certification ECU
L94-20 (CANL)	P	Certification ECU
L94-10 (CANH)	LG	Skid Control ECU
L94-21 (CANL)	L	Skid Control ECU

*1: for Navigation receiver type

*2: for Radio and display type

CAN NO. 2 JUNCTION CONNECTOR

Check the CAN No. 2 junction connector.

Connection diagram

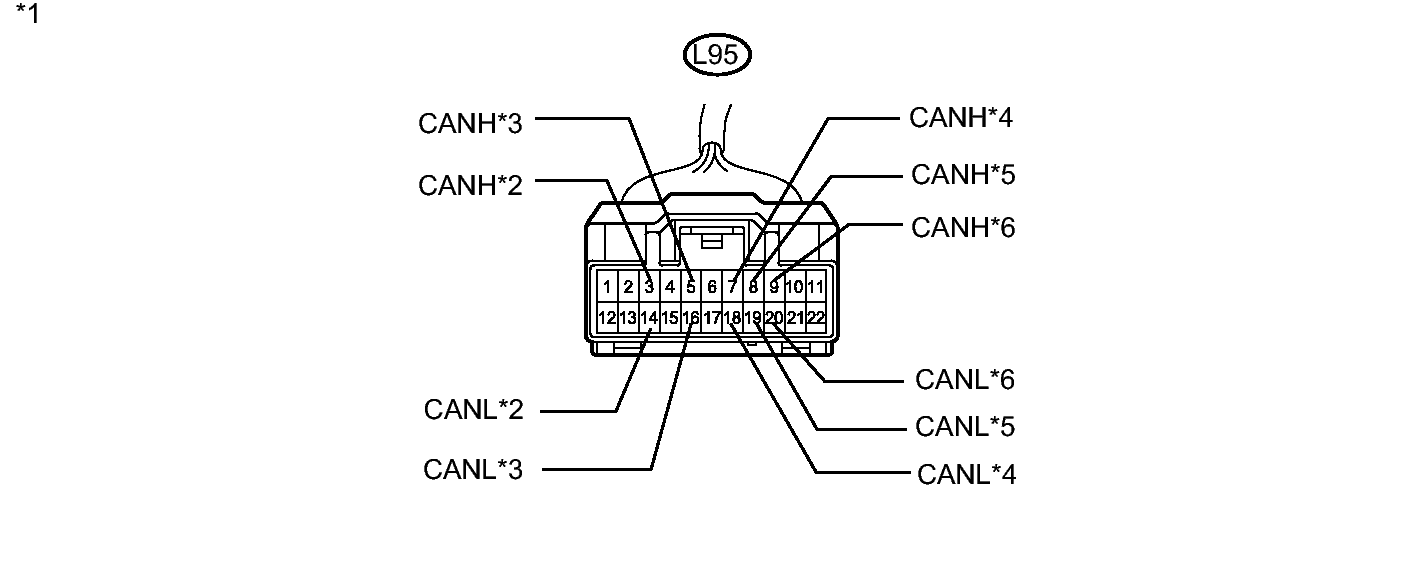

Fig 2: Identifying CAN No. 2 Junction Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to CAN No. 2 Junction Connector)	*2	to CAN No. 1 Junction Connector
*3	to Center Airbag Sensor Assembly	*4	to Transmission Control ECU
*5	to Power Management Control ECU	*6	to ECM

Check the connection diagram of the components which are connected to the CAN No. 2 junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
L95-3 (CANH)	V	CAN No. 1 junction connector
L95-14 (CANL)	W	CAN No. 1 junction connector
L95-5 (CANH)	R	Center airbag sensor assembly
L95-16 (CANL)	G	Center airbag sensor assembly
L95-7 (CANH)	Y	Transmission control ECU
L95-18 (CANL)	BR	Transmission control ECU
L95-8 (CANH)	B	Power management control ECU
L95-19 (CANL)	W	Power management control ECU
L95-9 (CANH)	P	ECM
L95-20 (CANL)	V	ECM

CAN NO. 3 JUNCTION CONNECTOR

Check the CAN No. 3 junction connector.

Connection diagram

Fig 3: CAN No. 3 Junction Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	CAN No. 3 Junction Connector	*2	Junction Connector B Side
*3	Junction Connector A Side	*4	Earth Terminal
*5	Front view of wire harness connector (to CAN No. 3 Junction Connector)	-	-

Check the connection diagram of the components which are connected to the CAN No. 3 junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
L97-1 (CANH)	P	Power management control ECU
L97-2 (CANL)	V	Power management control ECU
L98-1 (CANH)	LG	Seat belt control ECU
L98-2 (CANL)	L	Seat belt control ECU
L99-1 (CANH)	B	Driving support ECU
L99-2 (CANL)	W	Driving support ECU

CAN NO. 4 JUNCTION CONNECTOR

Check the CAN No. 4 junction connector.

Connection diagram

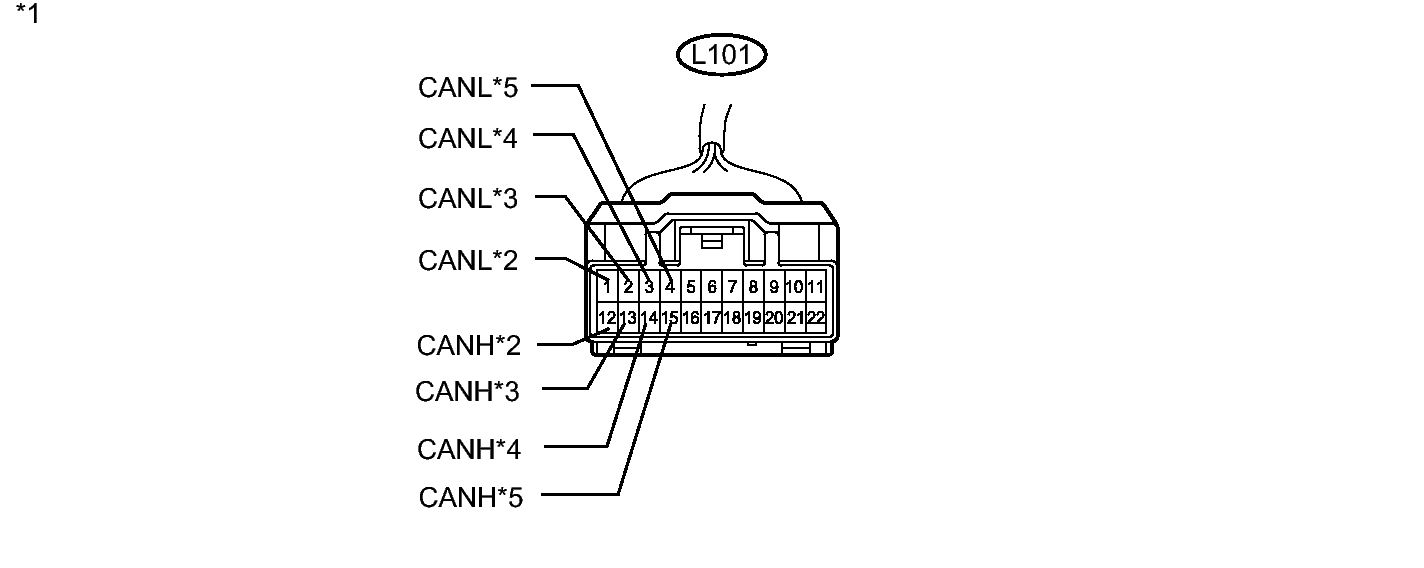

Fig 4: Identifying CAN No. 4 Junction Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to CAN No. 4 Junction Connector)	*2	to Power Management Control ECU
*3	to Air Conditioning Amplifier	*4	to Skid Control ECU
*5	to ECM	-	-

Check the connection diagram of the components which are connected to the CAN No. 4 junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
L101-12 (CANH)	LG	Power management control ECU
L101-1 (CANL)	L	Power management control ECU
L101-13 (CANH)	Y	Air conditioning amplifier
L101-2 (CANL)	BR	Air conditioning amplifier
L101-14 (CANH)	P	Skid control ECU
L101-3 (CANL)	V	Skid control ECU
L101-15 (CANH)	B	ECM
L101-4 (CANL)	W	ECM

CAN NO. 5 JUNCTION CONNECTOR

Check the CAN No. 5 junction connector.

Connection diagram

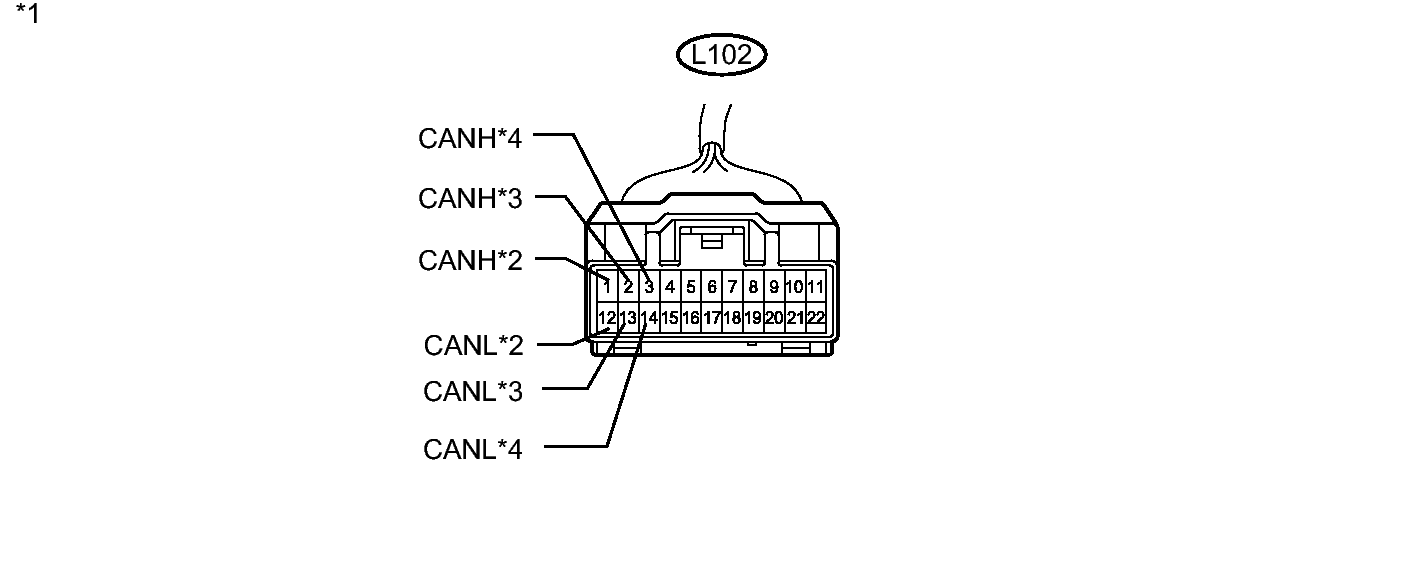

Fig 5: Identifying CAN No. 5 Junction Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to CAN No. 5 Junction Connector)	*2	to Millimeter Wave Radar Sensor
*3	to Lane Recognition Camera Sensor	*4	to Driving Support ECU

Check the connection diagram of the components which are connected to the CAN No. 5 junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
L102-1 (CANH)	LG	Millimeter wave radar sensor
L102-12 (CANL)	P	Millimeter wave radar sensor
L102-2 (CANH)	B	Lane recognition camera sensor
L102-13 (CANL)	W	Lane recognition camera sensor
L102-3 (CANH)	Y	Driving support ECU
L102-14 (CANL)	L	Driving support ECU

DLC3

Measure the resistance according to the value(s) in the table below.

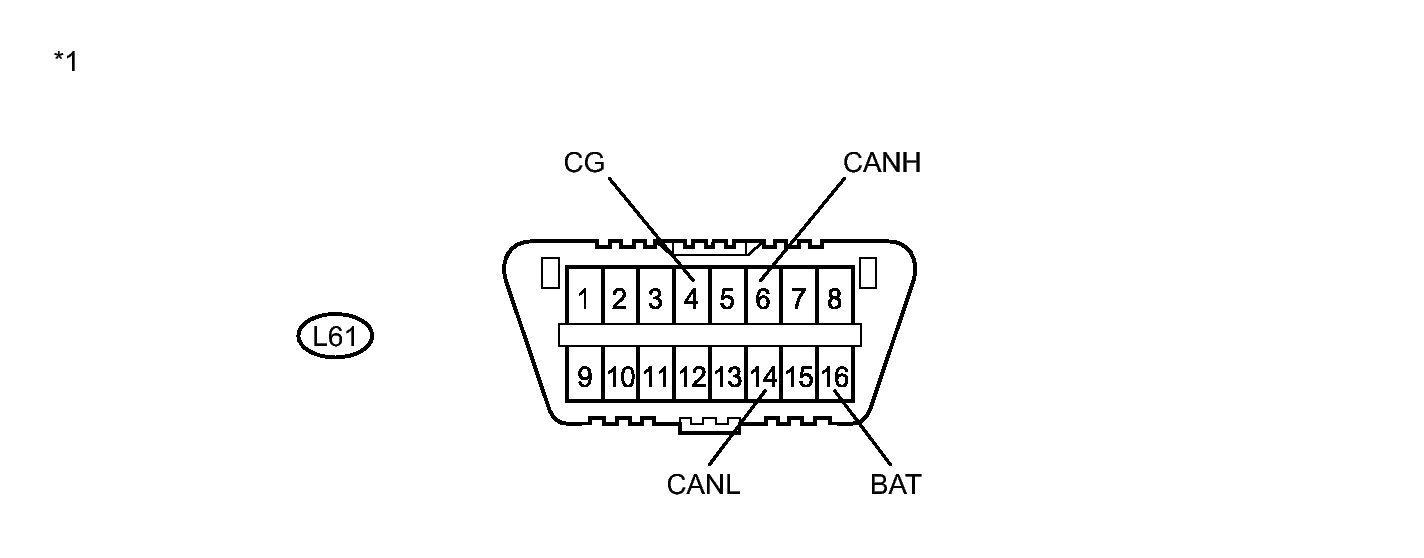

Fig 6: Identifying L61 DLC Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L61-6 (CANH) - L61-14 (CANL)	W - Y	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L61-6 (CANH) - L61-4 (CG)	W - G	HIGH-level CAN bus line - Chassis ground	Power switch off	200 Ω or higher
L61-14 (CANL) - L61-4 (CG)	Y - G	LOW-level CAN bus line - Chassis ground	Power switch off	200 Ω or higher
L61-6 (CANH) - L61-16 (BAT)	W - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L61-14 (CANL) - L61-16 (BAT)	Y - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

TEXT IN ILLUSTRATION

DLC3

ECM

Disconnect the ECM connectors.

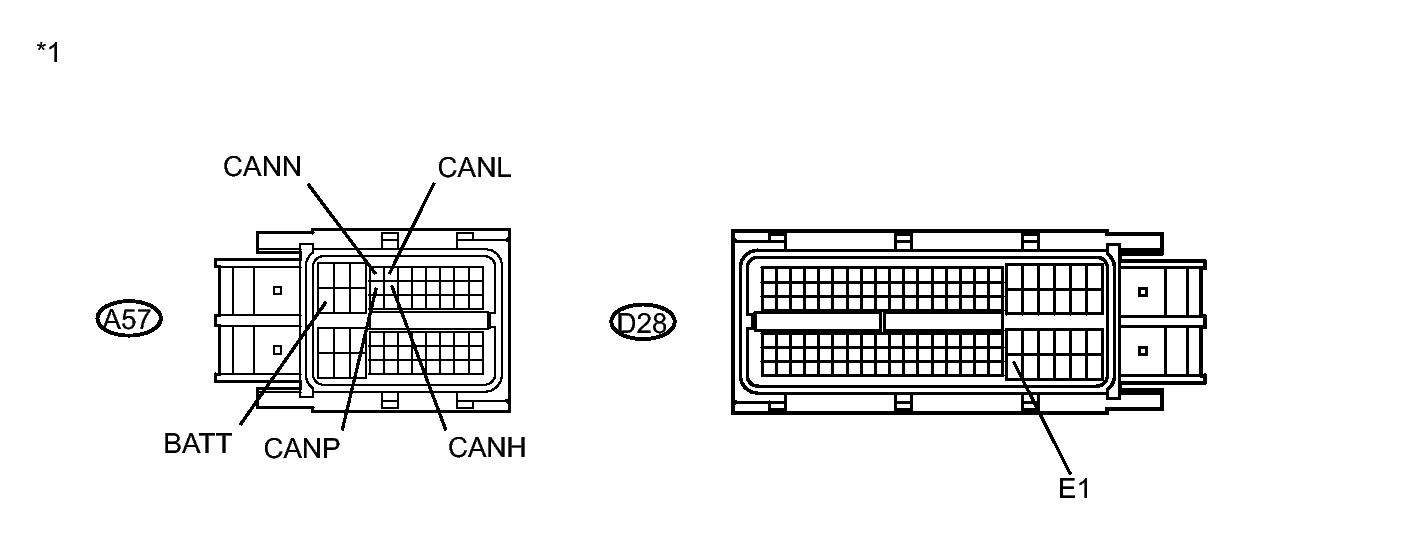

Fig 7: View Of Wire Harness Connector To ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to ECM)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR CAN NO. 1 BUS MAIN WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
A57-13 (CANH) - A57-5 (CANL)	P - V	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	108 to 132 Ω
A57-13 (CANH) - D28-104 (E1)	P - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
A57-5 (CANL) - D28-104 (E1)	V - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
A57-13 (CANH) - A57-20 (BATT)	P - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A57-5 (CANL) - A57-20 (BATT)	V - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR POWER MANAGEMENT BUS MAIN WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
A57-12 (CANP) - A57-4 (CANN)	B - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	108 to 132 Ω
A57-12 (CANP) - D28-104 (E1)	B - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
A57-4 (CANN) - D28-104 (E1)	W - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
A57-12 (CANP) - A57-20 (BATT)	B - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A57-4 (CANN) - A57-20 (BATT)	W - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

COMBINATION METER

Disconnect the combination meter connector.

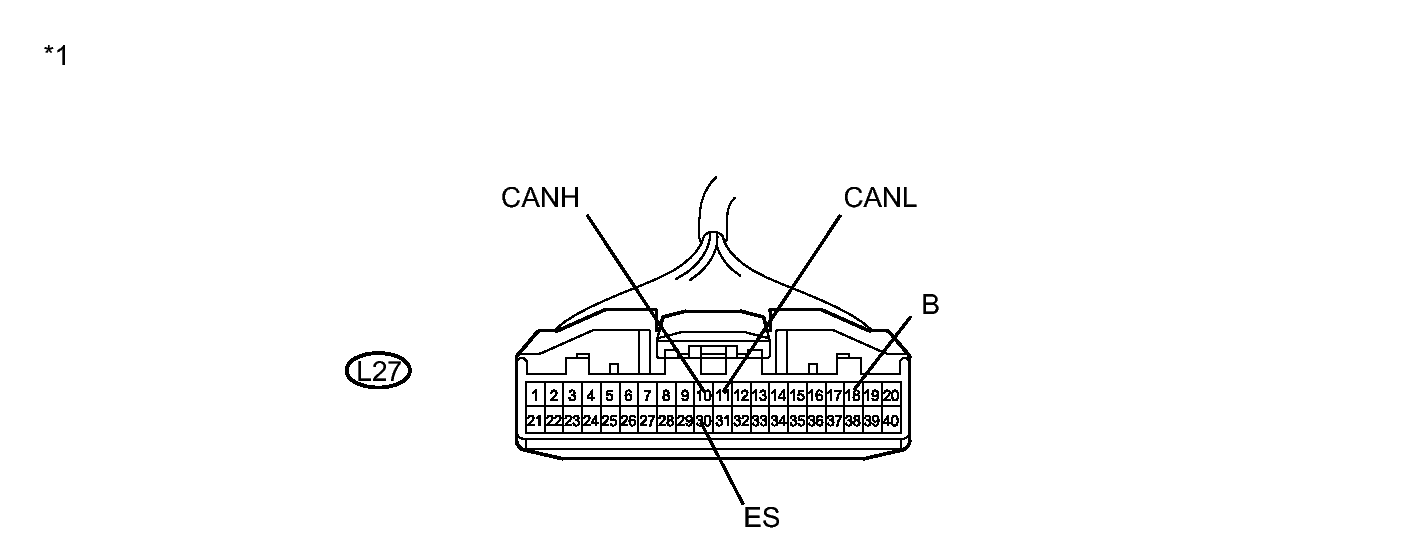

Fig 8: View Of Wire Harness Connector To Combination Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Combination Meter)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L27-10 (CANH) - L27-11 (CANL)	P - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	108 to 132 Ω
L27-10 (CANH) - L27-30 (ES)	P - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L27-11 (CANL) - L27-30 (ES)	W - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L27-10 (CANH) - L27-18 (B)	P - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L27-11 (CANL) - L27-18 (B)	W - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

POWER MANAGEMENT CONTROL ECU

Fig 9: Wire Harness Connector To Power Management Control ECU Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAN No. 1 Bus Branch Wire

Disconnect the power management control ECU connector.

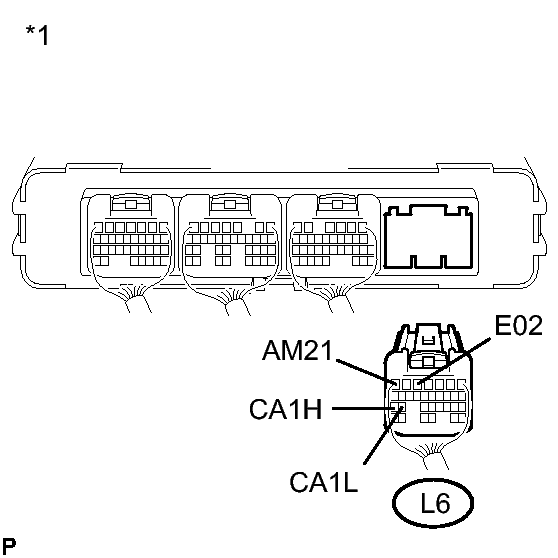

Fig 10: View Of Wire Harness Connector To Power Management Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Rear view of wire harness connector (to Power Management Control ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR CAN NO. 1 BUS BRANCH WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L6-25 (CA1H) - L6-24 (CA1L)	B - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L6-25 (CA1H) - L6-5 (E02)	B - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L6-24 (CA1L) - L6-5 (E02)	W - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L6-25 (CA1H) - L6-7 (AM21)	B - W	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L6-24 (CA1L) - L6-7 (AM21)	W - W	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CAN No. 2 Bus Main Wire

Disconnect the power management control ECU connector.

Fig 11: View Of Wire Harness Connector To Power Management Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Rear view of wire harness connector (to Power Management Control ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR CAN NO. 2 BUS MAIN WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L5-34 (CA2H) - L5-35 (CA2L)	P - V	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	108 to 132 Ω
L5-34 (CA2H) - L5-6 (E1)	P - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L5-35 (CA2L) - L5-6 (E1)	V - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L5-34 (CA2H) - L5-1 (AM22)	P - W	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L5-35 (CA2L) - L5-1 (AM22)	V - W	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Power Management Bus Main Wire

Disconnect the power management control ECU connector.

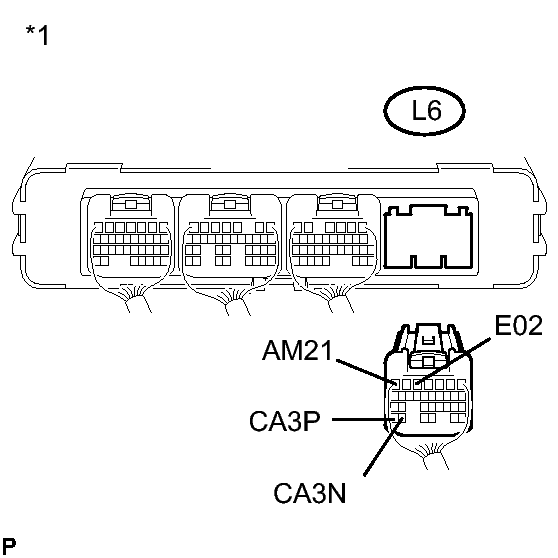

Fig 12: View Of Wire Harness Connector To Power Management Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Rear view of wire harness connector (to Power Management Control ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR POWER MANAGEMENT BUS MAIN WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L6-31 (CA3P) -L6-30 (CA3N)	LG - L	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	108 to 132 Ω
L6-31 (CA3P) - L6-5 (E02)	LG - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L6-30 (CA3N) - L6-5 (E02)	L - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L6-31 (CA3P) - L6-7 (AM21)	LG - W	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L6-30 (CA3N) - L6-7 (AM21)	L - W	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

MAIN BODY ECU

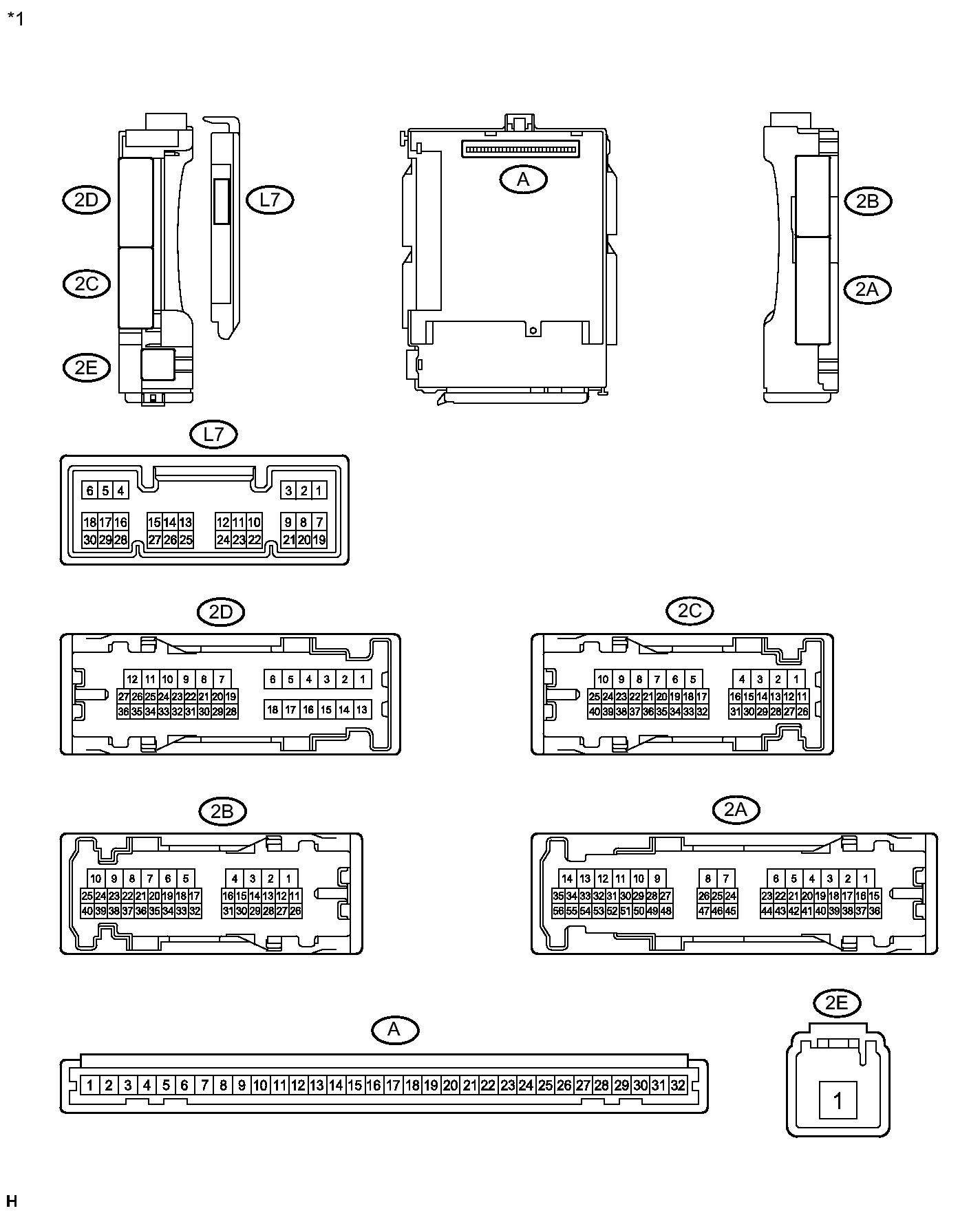

Fig 13: Identifying Instrument Panel Junction Block & Main Body ECU Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Instrument Panel Junction Block and Main Body ECU (except Korea, w/o LED Headlight System and w/o Remote Air Conditioning System)

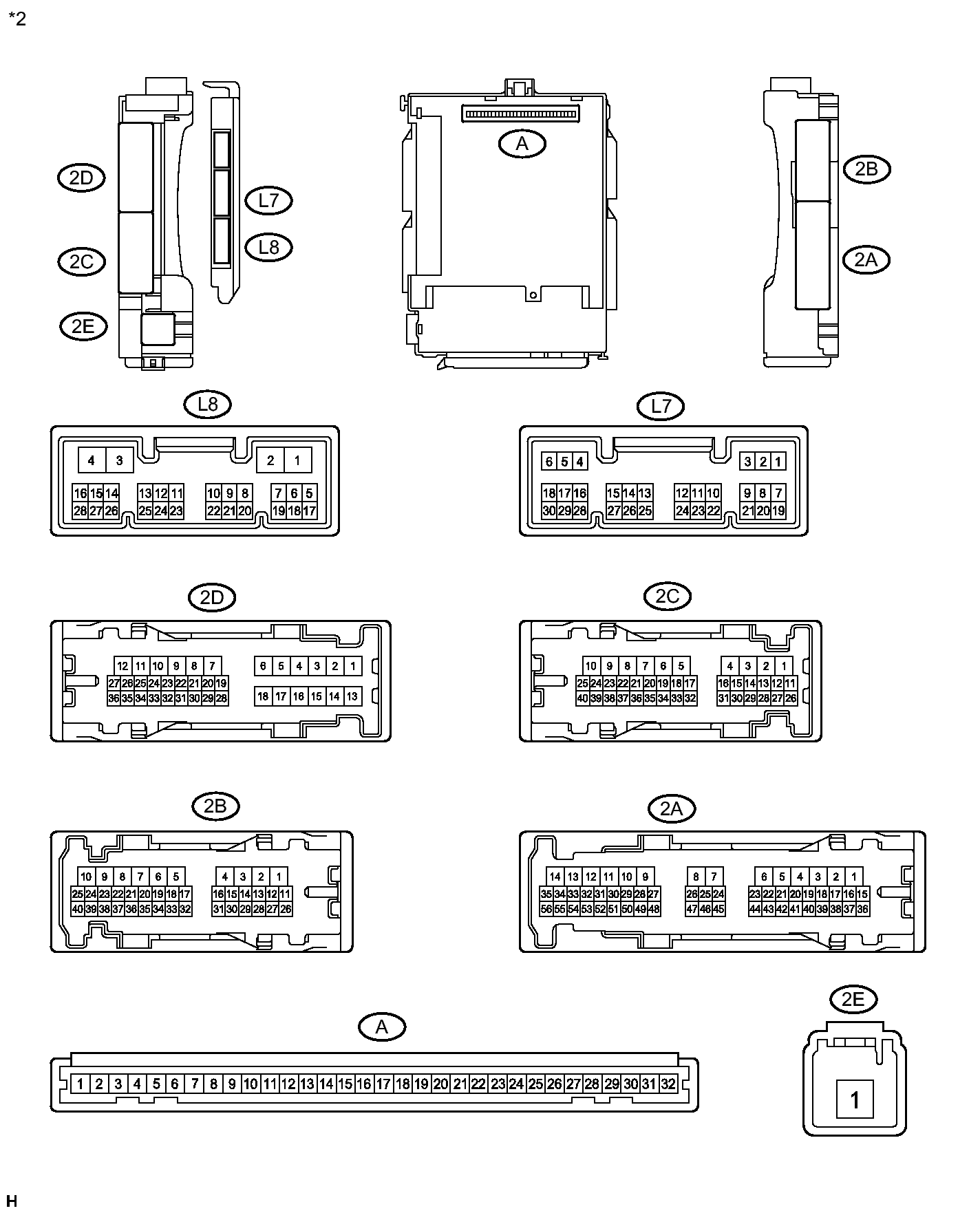

Fig 14: Identifying Instrument Panel Junction Block & Main Body ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*2	Instrument Panel Junction Block and Main Body ECU (for Korea, w/ LED Headlight System or w/ Remote Air Conditioning System)

Disconnect the main body ECU connector.

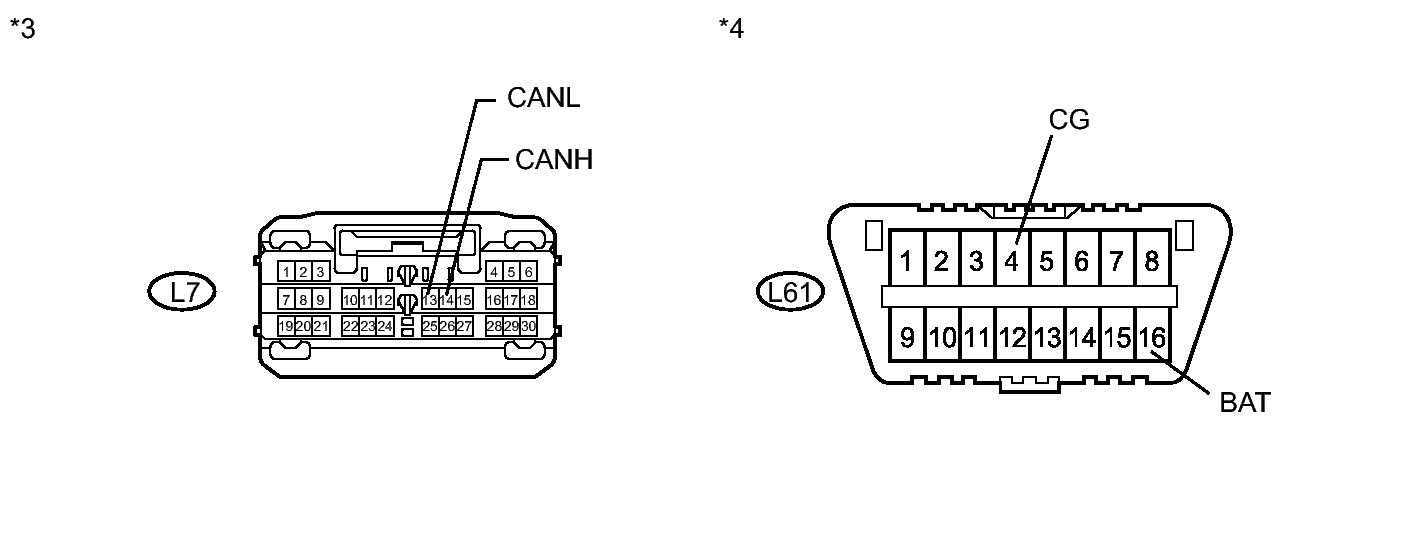

Fig 15: Wire Harness Connector To Main Body ECU Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Front view of wire harness connector
(to Main Body ECU)

DLC3

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L7-14 (CANH) - L7-13 (CANL)	BR - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L7-14 (CANH) - L61-4 (CG)	BR - G	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L7-13 (CANL) - L61-4 (CG)	W - G	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L7-14 (CANH) - L61-16 (BAT)	BR - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L7-13 (CANL) - L61-16 (BAT)	W - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER)

Disconnect the skid control ECU (brake booster with master cylinder) connector.

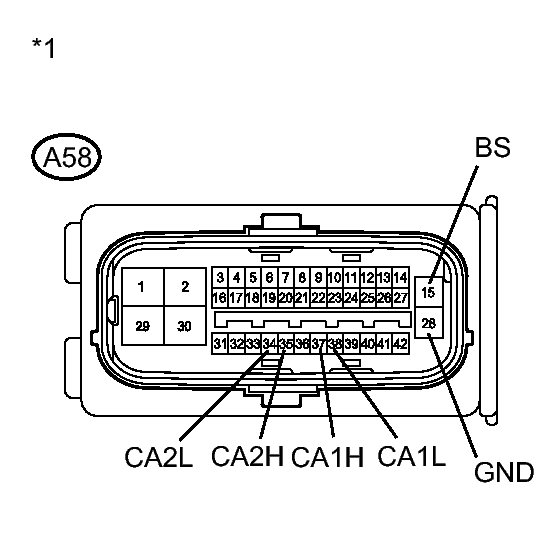

Fig 16: View Of Wire Harness Connector To Skid Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Skid Control ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR CAN NO. 1 BUS BRANCH WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
A58-37 (CA1H) - A58-38 (CA1L)	LG - L	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
A58-37 (CA1H) - A58-28 (GND)	LG - W	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
A58-38 (CA1L) - A58-28 (GND)	L - W	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
A58-37 (CA1H) - A58-15 (BS)	LG - B	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A58-38 (CA1L) - A58-15 (BS)	L - B	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR POWER MANAGEMENT BUS BRANCH WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
A58-35 (CA2H) - A58-34 (CA2L)	P - V	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
A58-35 (CA2H) - A58-28 (GND)	P - W	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
A58-34 (CA2L) - A58-28 (GND)	V - W	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
A58-35 (CA2H) - A58-15 (BS)	P - B	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A58-34 (CA2L) - A58-15 (BS)	V - B	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

STEERING ANGLE SENSOR

Disconnect the steering angle sensor connector.

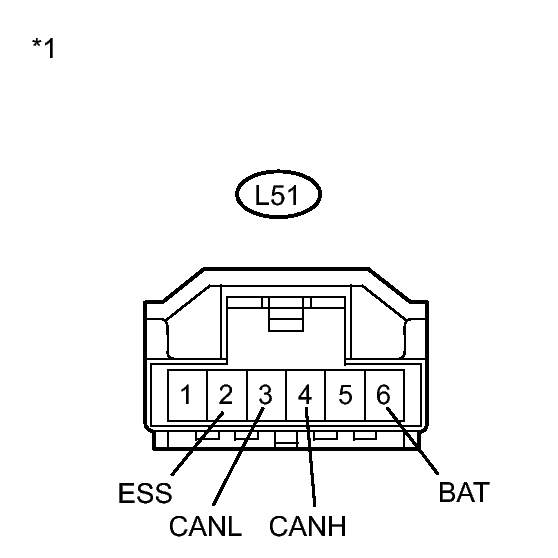

Fig 17: View Of Wire Harness Connector To Steering Angle Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Steering Angle Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L51-4 (CANH) - L51-3 (CANL)	L - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L51-4 (CANH) - L51-2 (ESS)	L - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L51-3 (CANL) - L51-2 (ESS)	W - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L51-4 (CANH) - L51-6 (BAT)	L - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L51-3 (CANL) - L51-6 (BAT)	W - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

YAW RATE SENSOR

Disconnect the yaw rate sensor connector.

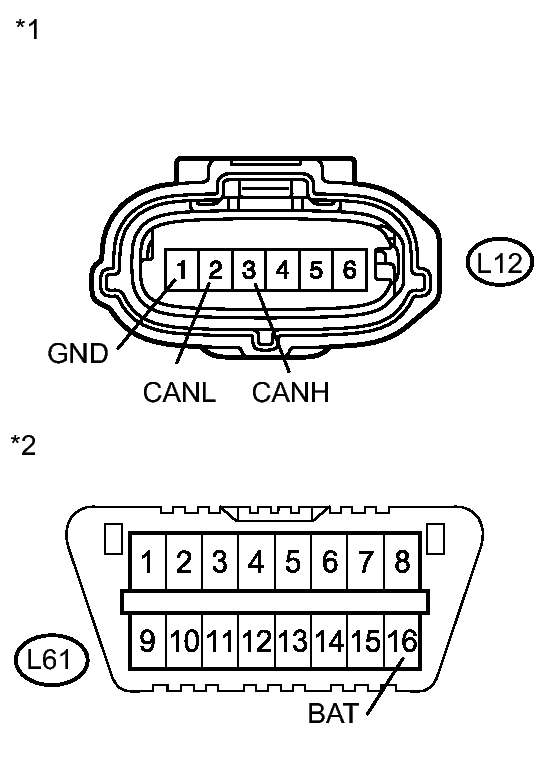

Fig 18: View Of Wire Harness Connector To Yaw Rate Sensor & DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Yaw Rate Sensor)
*2	DLC3

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L12-3 (CANH) - L12-2 (CANL)	Y - L	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L12-3 (CANH) - L12-1 (GND)	Y - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L12-2 (CANL) - L12-1 (GND)	L - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L12-3 (CANH) - L61-16 (BAT)	Y - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L12-2 (CANL) - L61-16 (BAT)	L - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

POWER STEERING ECU

Disconnect the power steering ECU connectors.

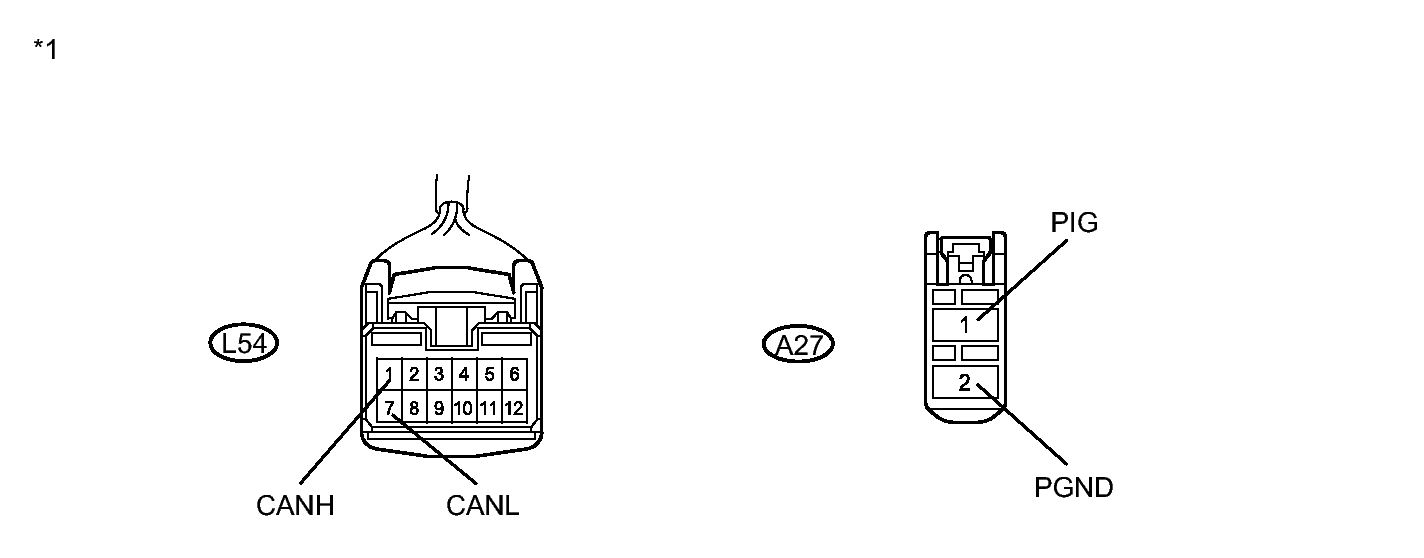

Fig 19: Wire Harness Connector To Power Steering ECU Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Power Steering ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L54-1 (CANH) - L54-7 (CANL)	R - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L54-1 (CANH) - A27-2 (PGND)	R - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L54-7 (CANL) - A27-2 (PGND)	W - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L54-1 (CANH) - A27-1 (PIG)	R - W	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L54-7 (CANL) - A27-1 (PIG)	W - W	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CENTER AIRBAG SENSOR ASSEMBLY

Disconnect the center airbag sensor assembly connector.

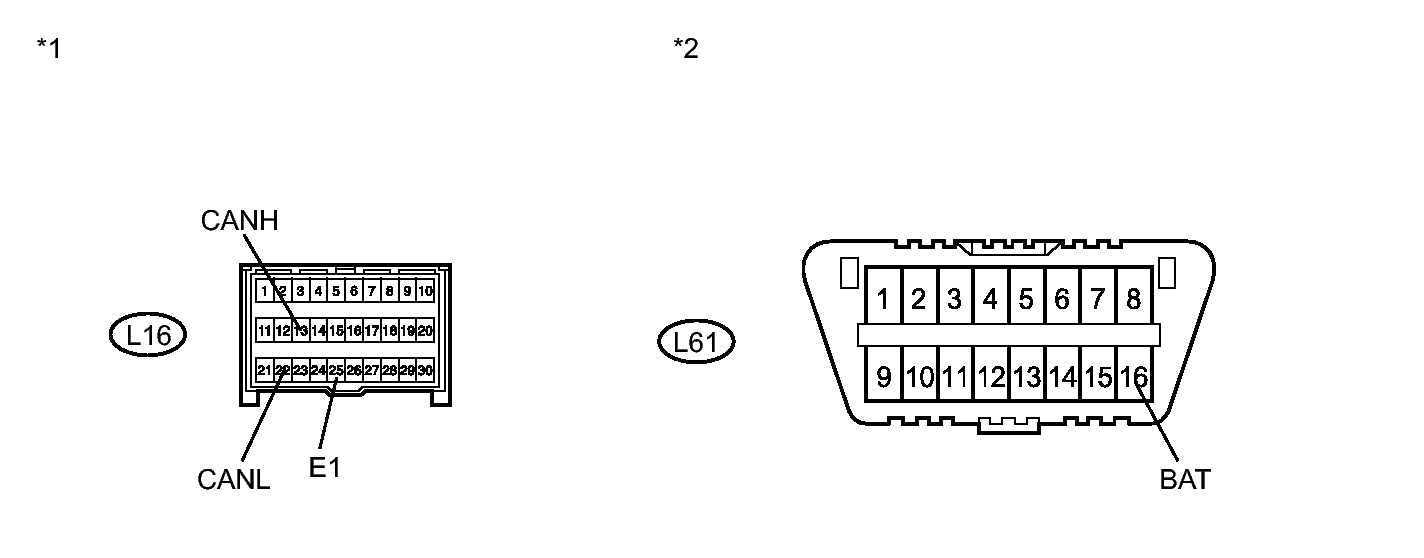

Fig 20: View Of Wire Harness Connector To Center Airbag Sensor Assembly & DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Front view of wire harness connector
(to Center Airbag Sensor Assembly)

DLC3

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L16-13 (CANH) - L16-22 (CANL)	R - G	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L16-13 (CANH) - L16-25 (E1)	R - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L16-22 (CANL) - L16-25 (E1)	G - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L16-13 (CANH) - L61-16 (BAT)	R - R	CAN communication line H - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L16-22 (CANL) - L61-16 (BAT)	G - R	CAN communication line L - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CERTIFICATION ECU (SMART KEY ECU)

Disconnect the certification ECU connector.

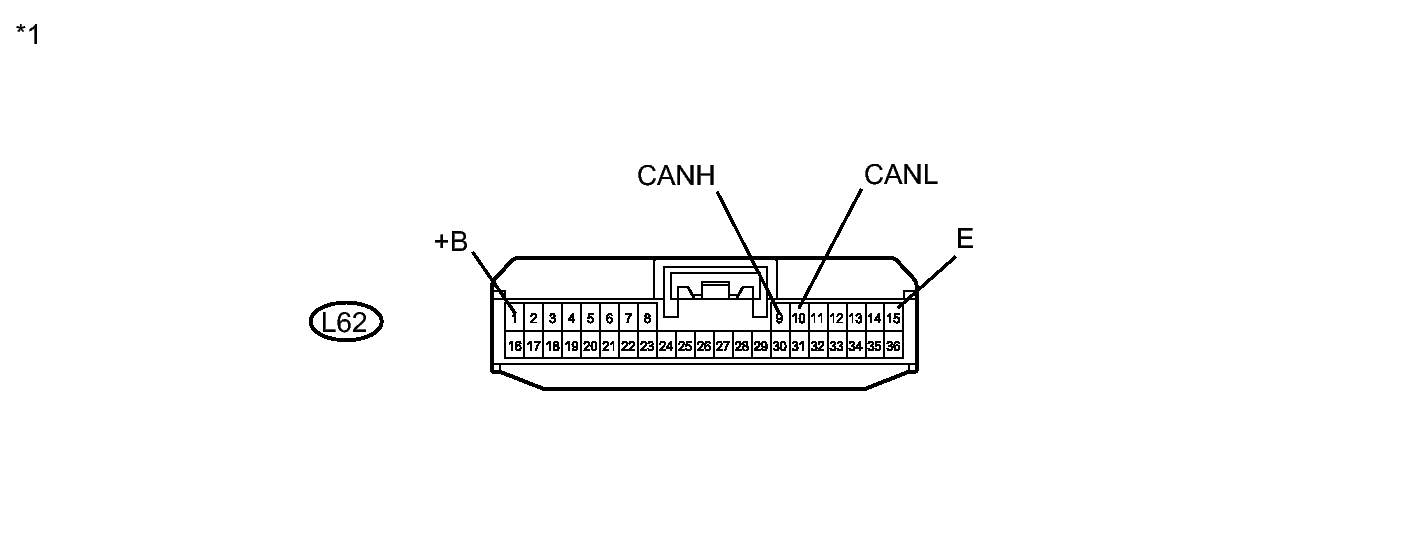

Fig 21: View Of Wire Harness Connector To Certification ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Certification ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L62-9 (CANH) - L62-10 (CANL)	BE - P	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L62-9 (CANH) - L62-15 (E)	BE - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L62-10 (CANL) - L62-15 (E)	P - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L62-9 (CANH) - L62-1 (+B)	BE - B	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L62-10 (CANL) - L62-1 (+B)	P - B	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

TRANSMISSION CONTROL ECU

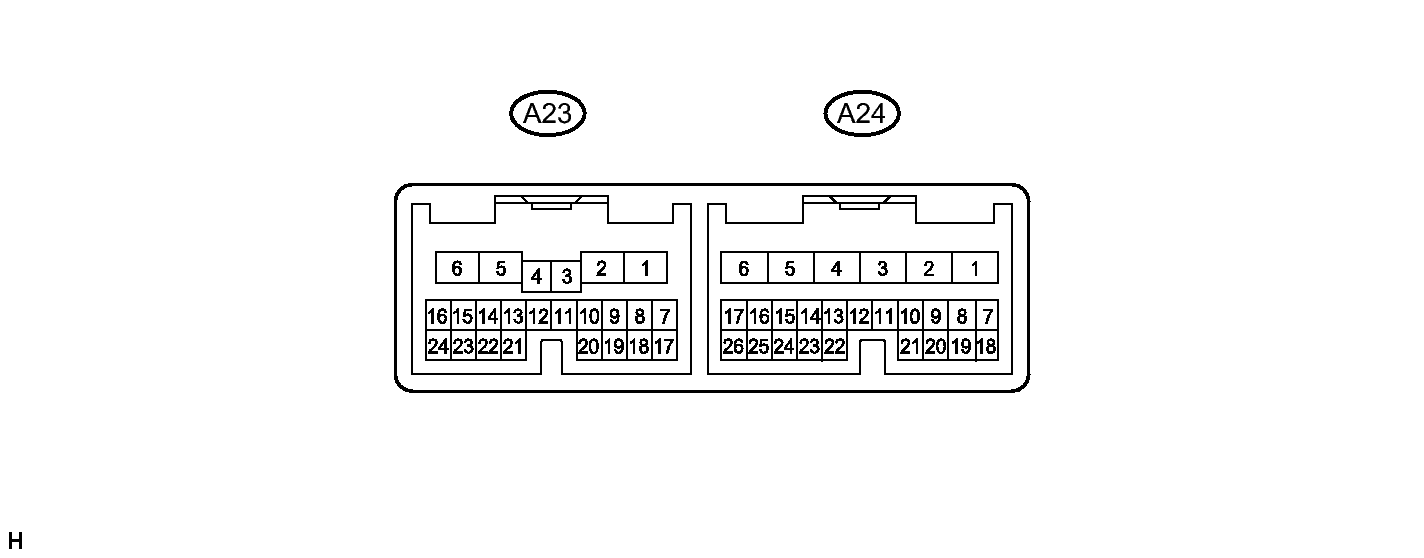

Fig 22: View Of Wire Harness Connector To Transmission Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the transmission control ECU connectors.

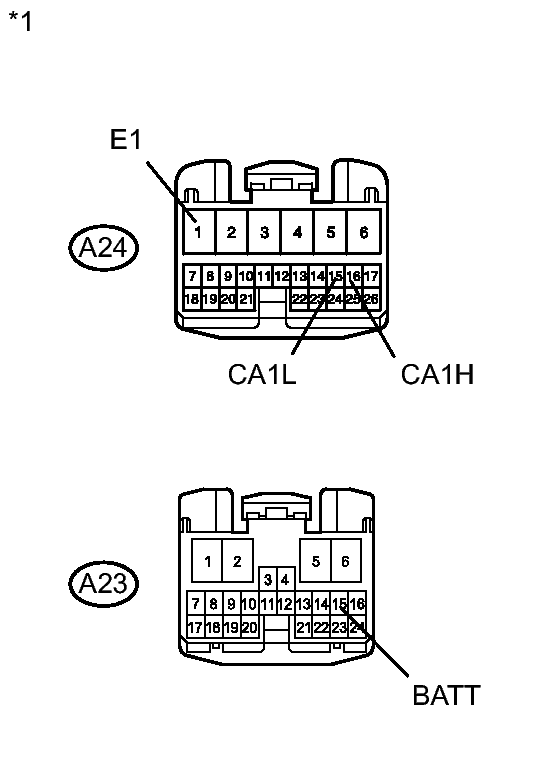

Fig 23: View Of Wire Harness Connector To Transmission Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Transmission Control ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
A24-16 (CA1H) - A24-15 (CA1L)	Y - BR	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
A24-16 (CA1H) - A24-1 (E1)	Y - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
A24-15 (CA1L) - A24-1 (E1)	BR - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
A24-16 (CA1H) - A23-15 (BATT)	Y - SB	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A24-15 (CA1L) - A23-15 (BATT)	BR - SB	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)

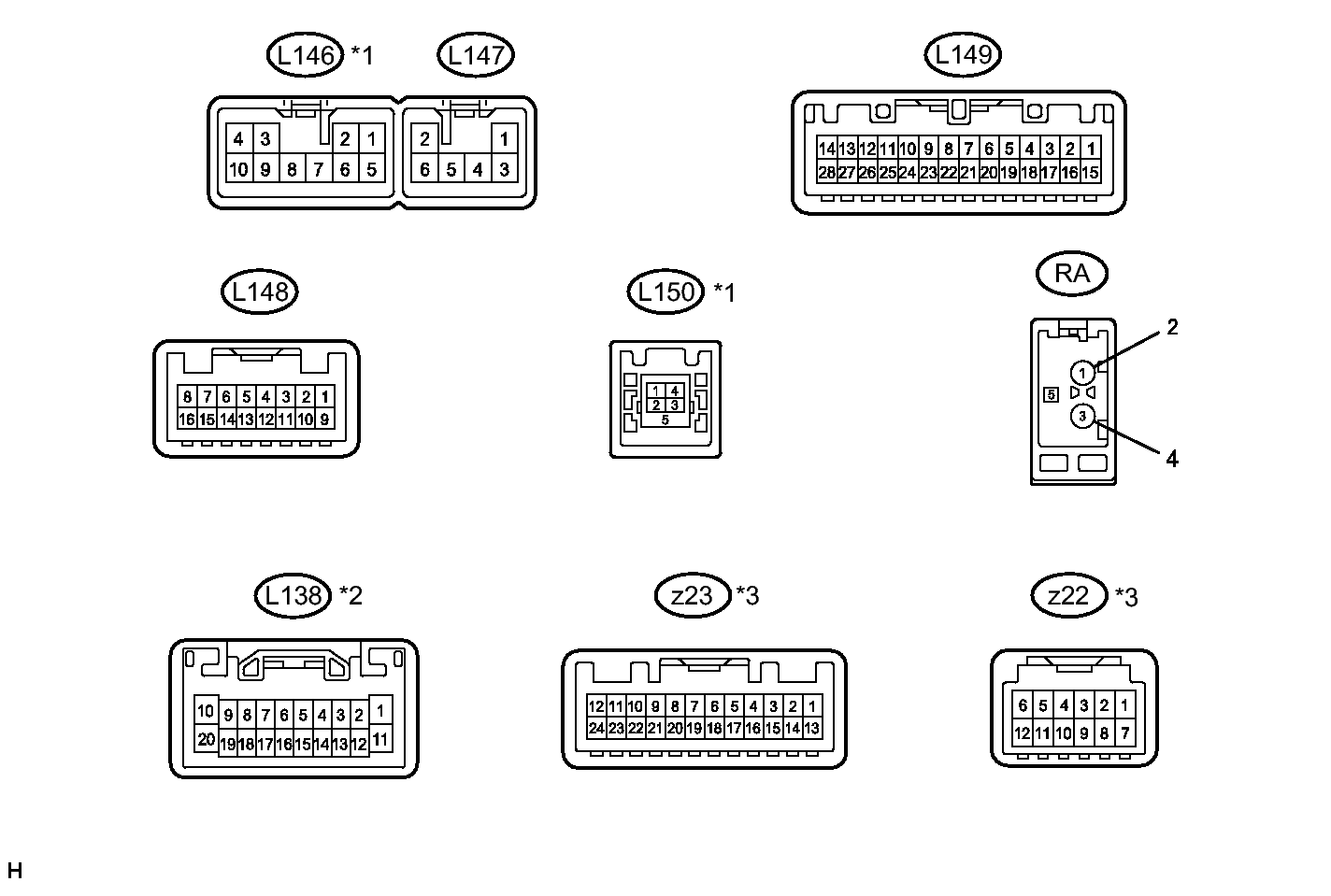

Fig 24: Identifying Radio And Display Receiver Assembly ECU Connector End Views

TEXT IN ILLUSTRATION

*1	for 6 Speakers	*2	for 8 Speakers
*3	w/ Navigation System	-	-

Disconnect the radio and display receiver assembly connectors.

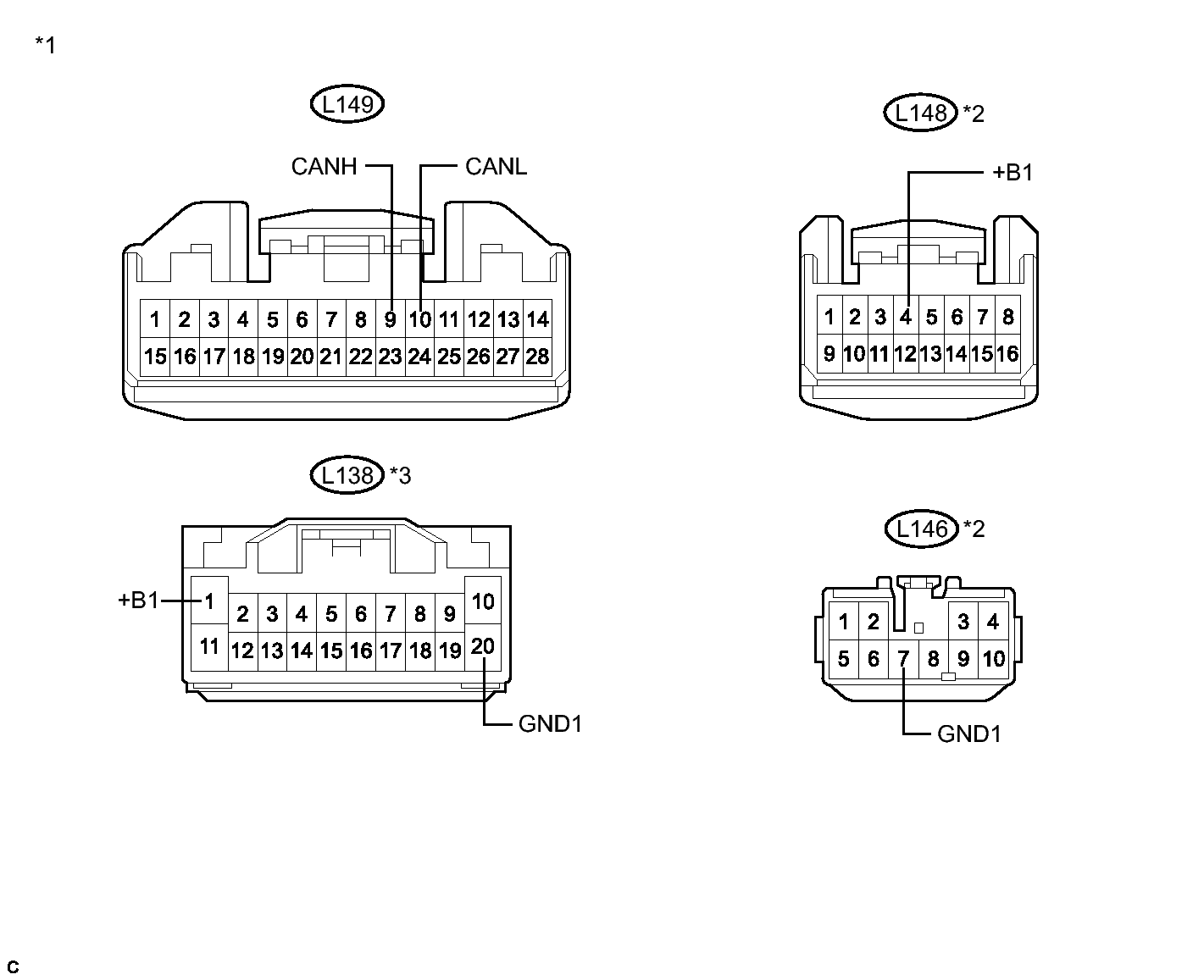

Fig 25: Radio And Display Receiver Assembly Connectors

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Radio and Display Receiver Assembly)	*2	for 6 Speakers
*3	for 8 Speakers	-	-

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L149-9 (CANH) - L149-10 (CANL)1 L149-9 (CANH) - L149-10 (CANL)2	G - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L149-9 (CANH) - L146-7 (GND1)1 L149-9 (CANH) - L138-20 (GND1)2	G - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L149-10 (CANL) - L146-7 (GND1)1 L149-10 (CANL) - L138-20 (GND1)2	W - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L149-9 (CANH) - L148-4 (+B1)1 L149-9 (CANH) - L138-1 (+B1)2	G - SB	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L149-10 (CANL) - L148-4 (+B1)1 L149-10 (CANL) - L138-1 (+B1)2	W - SB	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

*1: for 6 Speakers
*2: for 8 Speakers

NAVIGATION ECU SUB-ASSEMBLY (for Navigation Receiver Type)

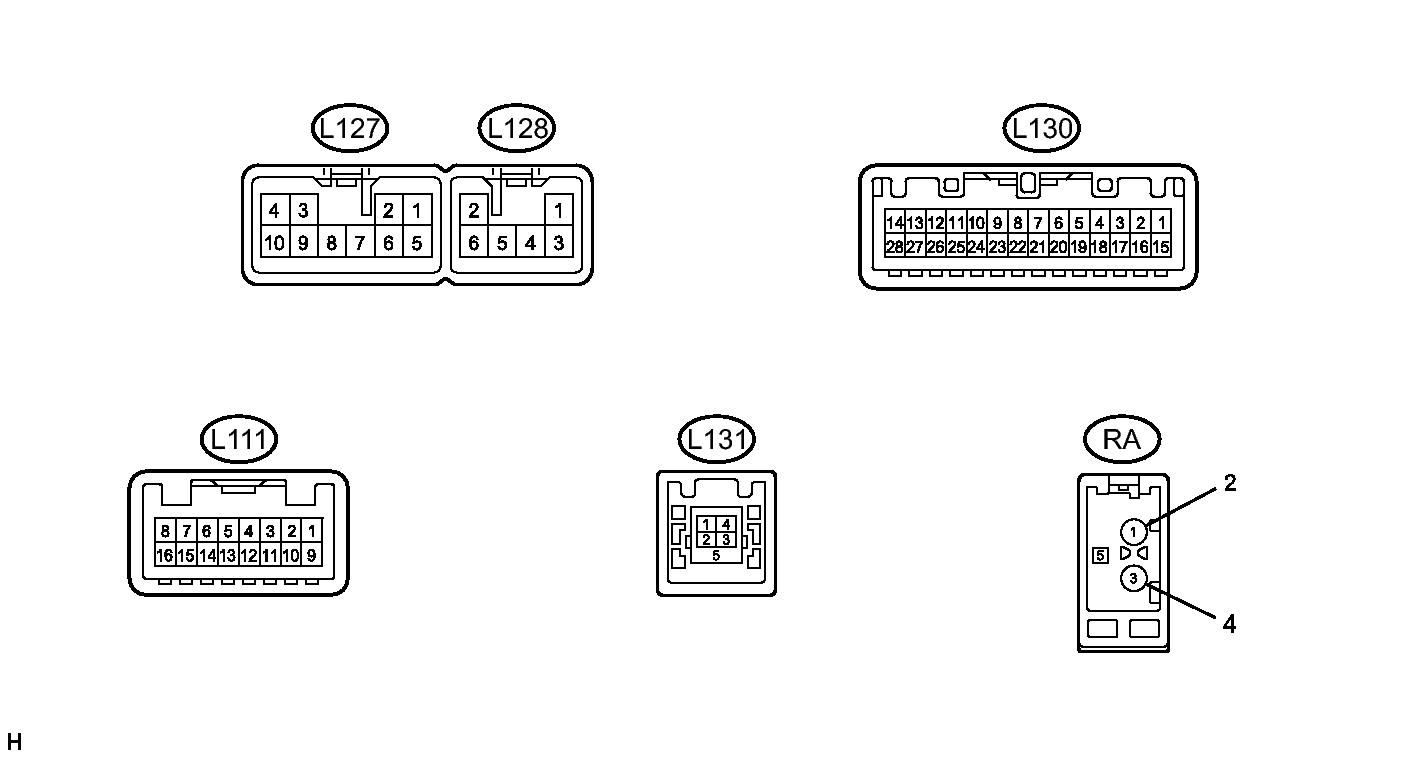

Fig 26: Navigation ECU Sub-Assembly (For Radio and Display Type) Connector Terminal Identification

Disconnect the navigation ECU sub-assembly connectors.

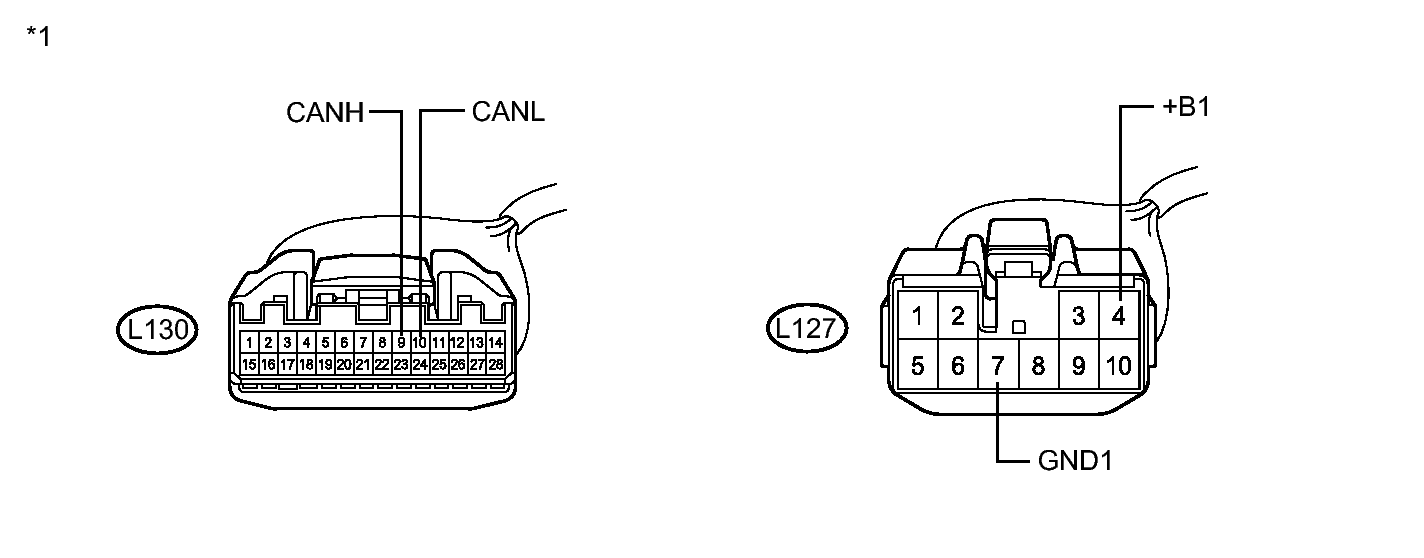

Fig 27: View Of Wire Harness Connector To Navigation ECU

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Navigation ECU Sub-assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L130-9 (CANH) - L130-10 (CANL)	G - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L130-9 (CANH) - L127-7 (GND1)	G - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L130-10 (CANL) - L127-7 (GND1)	W - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L130-9 (CANH) - L127-4 (+B1)	G - SB	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L130-10 (CANL) - L127-4 (+B1)	W - SB	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

NAVIGATION ECU SUB-ASSEMBLY (for Radio and Display Type)

Fig 28: Navigation ECU Sub-Assembly (For Radio and Display Type) Connector Terminal Identification

Disconnect the navigation ECU sub-assembly connectors.

Fig 29: View Of Wire Harness Connector To Navigation ECU

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Navigation ECU Sub-assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L130-9 (CANH) - L130-10 (CANL)	G - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L130-9 (CANH) - L127-7 (GND1)	G - BR	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L130-10 (CANL) - L127-7 (GND1)	W - BR	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L130-9 (CANH) - L127-4 (+B1)	G - SB	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L130-10 (CANL) - L127-4 (+B1)	W - SB	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

AIR CONDITIONING AMPLIFIER

Disconnect the air conditioning amplifier connector.

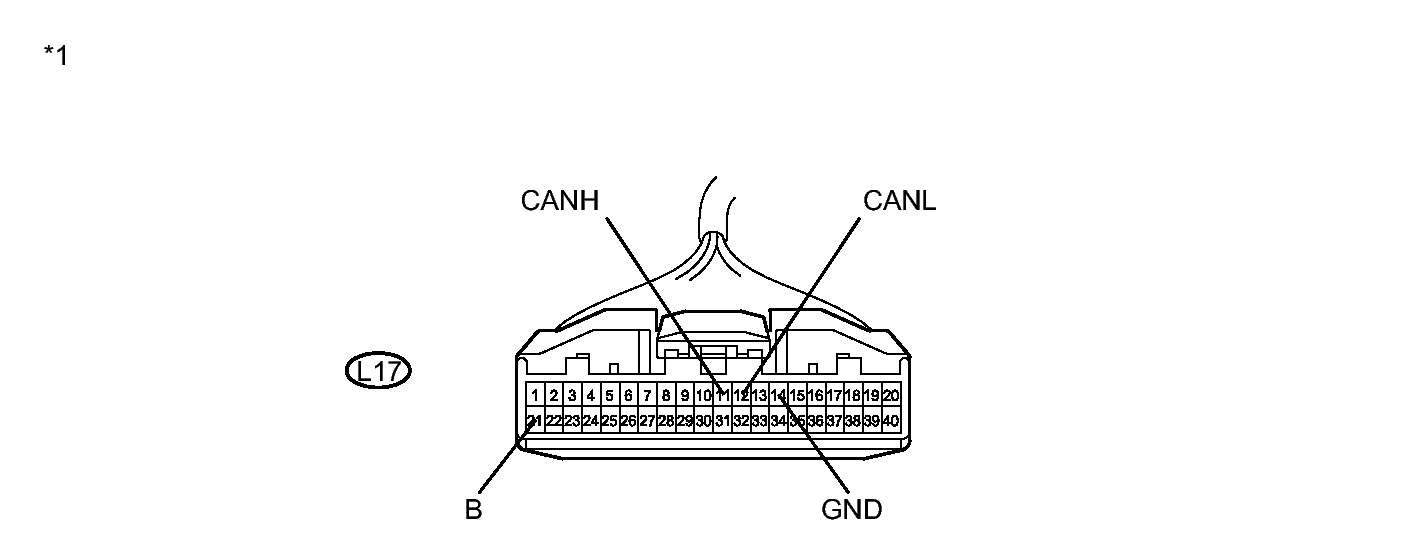

Fig 30: View Of Wire Harness Connector To Air Conditioning Amplifier

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Air Conditioning Amplifier)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L17-11 (CANH) - L17-12 (CANL)	Y - BR	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L17-11 (CANH) - L17-14 (GND)	Y - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L17-12 (CANL) - L17-14 (GND)	BR - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L17-11 (CANH) - L17-21 (B)	Y - Y	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L17-12 (CANL) - L17-21 (B)	BR - Y	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

SEAT BELT CONTROL ECU (w/ Pre-collision System)

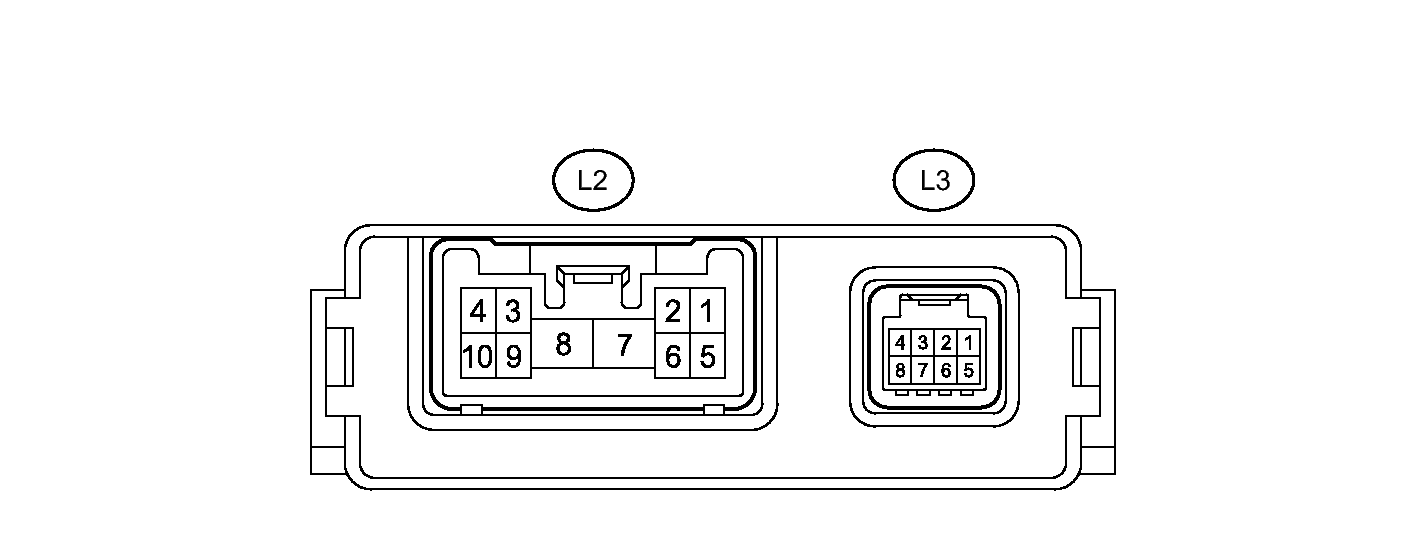

Fig 31: Identifying Seat Belt Control ECU (w/ Pre-collision System) Connector Terminals

Disconnect the seat belt control ECU connectors.

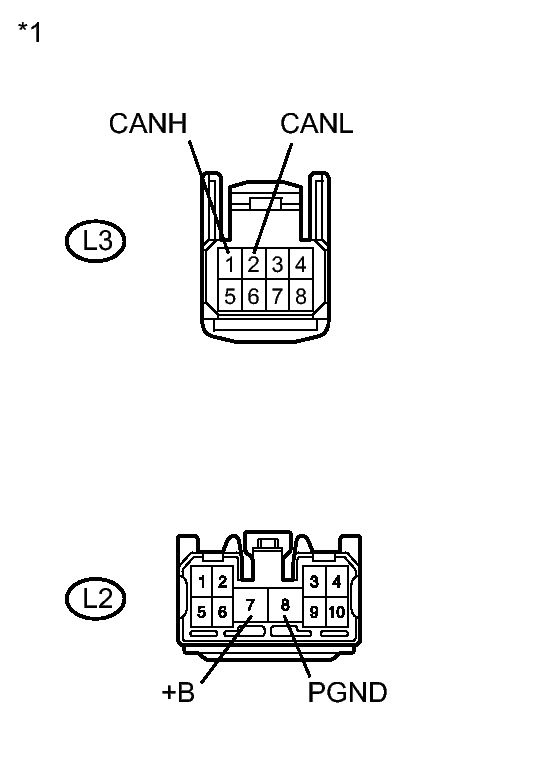

Fig 32: View Of Wire Harness Connector To Seat Belt Control ECU

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Seat Belt Control ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L3-1 (CANH) - L3-2 (CANL)	LG - L	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L3-1 (CANH) - L2-8 (PGND)	LG - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L3-2 (CANL) - L2-8 (PGND)	L - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L3-1 (CANH) - L2-7 (+B)	LG - B	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L3-2 (CANL) - L2-7 (+B)	L - B	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

DRIVING SUPPORT ECU (w/ Dynamic Radar Cruise Control System)

Fig 33: View Of Wire Harness Connector To Driving Support ECU

Disconnect the driving support ECU connector.

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Driving Support ECU)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

CAN NO. 2 BUS BRANCH WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L60-39 (CA2H) - L60-17 (CA2L)	B - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
L60-39 (CA2H) - L60-25 (GND)	B - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L60-17 (CA2L) - L60-25 (GND)	W - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L60-39 (CA2H) - L60-30 (B)	B - B	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L60-17 (CA2L) - L60-30 (B)	W - B	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Standard Resistance

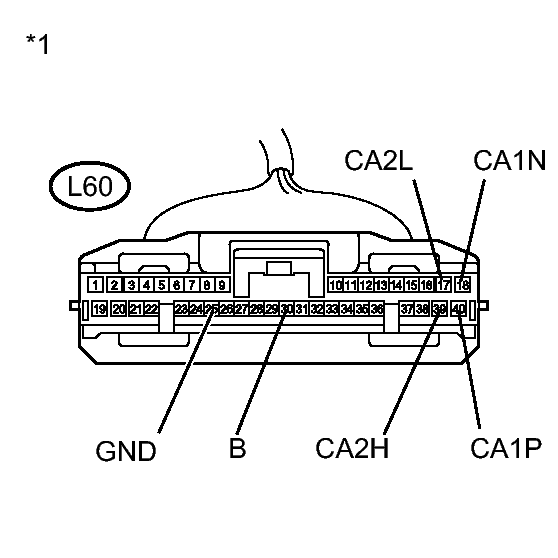

PARKING ASSIST BUS MAIN WIRE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
L60-40 (CA1P) - L60-18 (CA1N)	Y - L	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	108 to 132 Ω
L60-40 (CA1P) - L60-25 (GND)	Y - W-B	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
L60-18 (CA1N) - L60-25 (GND)	L - W-B	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
L60-40 (CA1P) - L60-30 (B)	Y - B	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
L60-18 (CA1N) - L60-30 (B)	L - B	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

MILLIMETER WAVE RADAR SENSOR (w/ Dynamic Radar Cruise Control System)

Disconnect the millimeter wave radar sensor connector.

Fig 34: View Of Wire Harness Connector To Millimeter Wave Radar Sensor & DLC3

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Millimeter Wave Radar Sensor)
*2	DLC3

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
A2-4 (CA1P) - A2-3 (CA1N)	LG - P	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	108 to 132 Ω
A2-4 (CA1P)- L61-4 (CG)	LG - G	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
A2-3 (CA1N) - L61-4 (CG)	P - G	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
A2-4 (CA1P) - L61-16 (BAT)	LG - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A2-3 (CA1N) - L61-16 (BAT)	P - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

LANE RECOGNITION CAMERA SENSOR (w/ Lane-keeping Assist System)

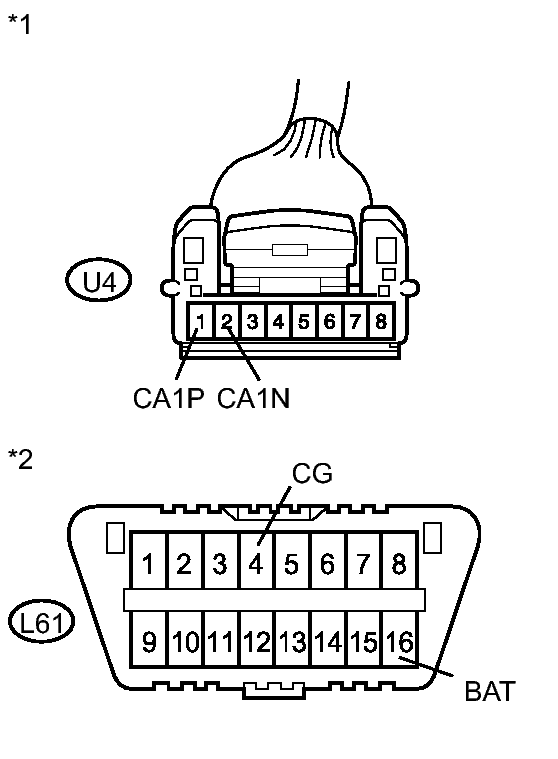

Fig 35: View Of Wire Harness Connector To Lane Recognition Camera Sensor & DLC3

Disconnect the lane recognition camera sensor connector.

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Lane Recognition Camera Sensor)
*2	DLC3

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
U4-1 (CA1P) - U4-2 (CA1N)	B - W	HIGH-level CAN bus line - LOW-level CAN bus line	Power switch off	54 to 69 Ω
U4-1 (CA1P)- L61-4 (CG)	B - G	HIGH-level CAN bus line - Ground	Power switch off	200 Ω or higher
U4-2 (CA1N) - L61-4 (CG)	W - G	LOW-level CAN bus line - Ground	Power switch off	200 Ω or higher
U4-1 (CA1P) - L61-16 (BAT)	B - R	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
U4-2 (CA1N) - L61-16 (BAT)	W - R	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
