Installation [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

INSTALL HYBRID BATTERY JUNCTION BLOCK
WARNING:
Be sure to wear insulated gloves.
1. Install the hybrid battery junction block with the 3 nuts.

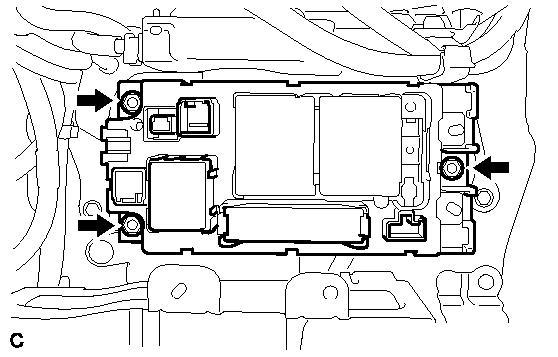

  Fig 1: Identifying Nuts On Junction Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Connect the 2 connectors to the hybrid battery junction block.

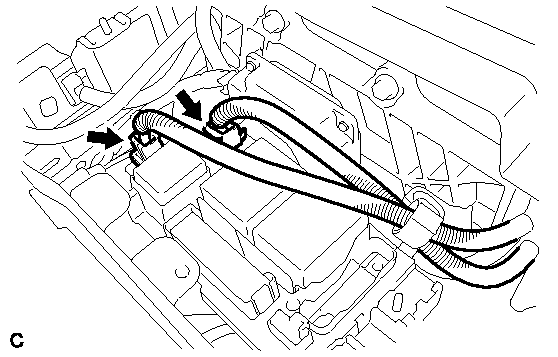

  Fig 2: Identifying Hybrid Battery Junction Block Connectors (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  The connectors should be connected securely.
3. Connect the 2 connectors to the hybrid battery junction block.

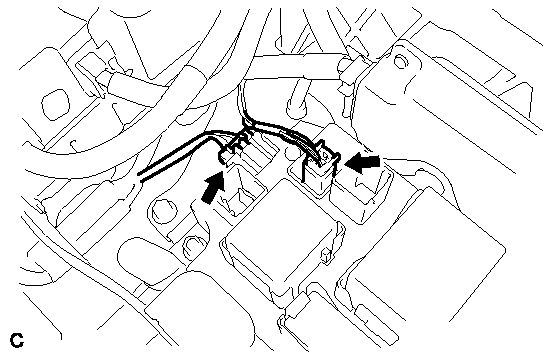

  Fig 3: Identifying Hybrid Battery Junction Block Connectors (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FRAME WIRE See step 10
CHECK HIGH VOLTAGE CABLE CONNECTION See step 11
INSTALL UPPER HYBRID BATTERY COVER SUB-ASSEMBLY
HINT:

Refer to INSTALLATION [10/2013 - ] .
