Components [10/2013 - ]: Illustration
WARNING:
This page is about a different variant/trim than selected.

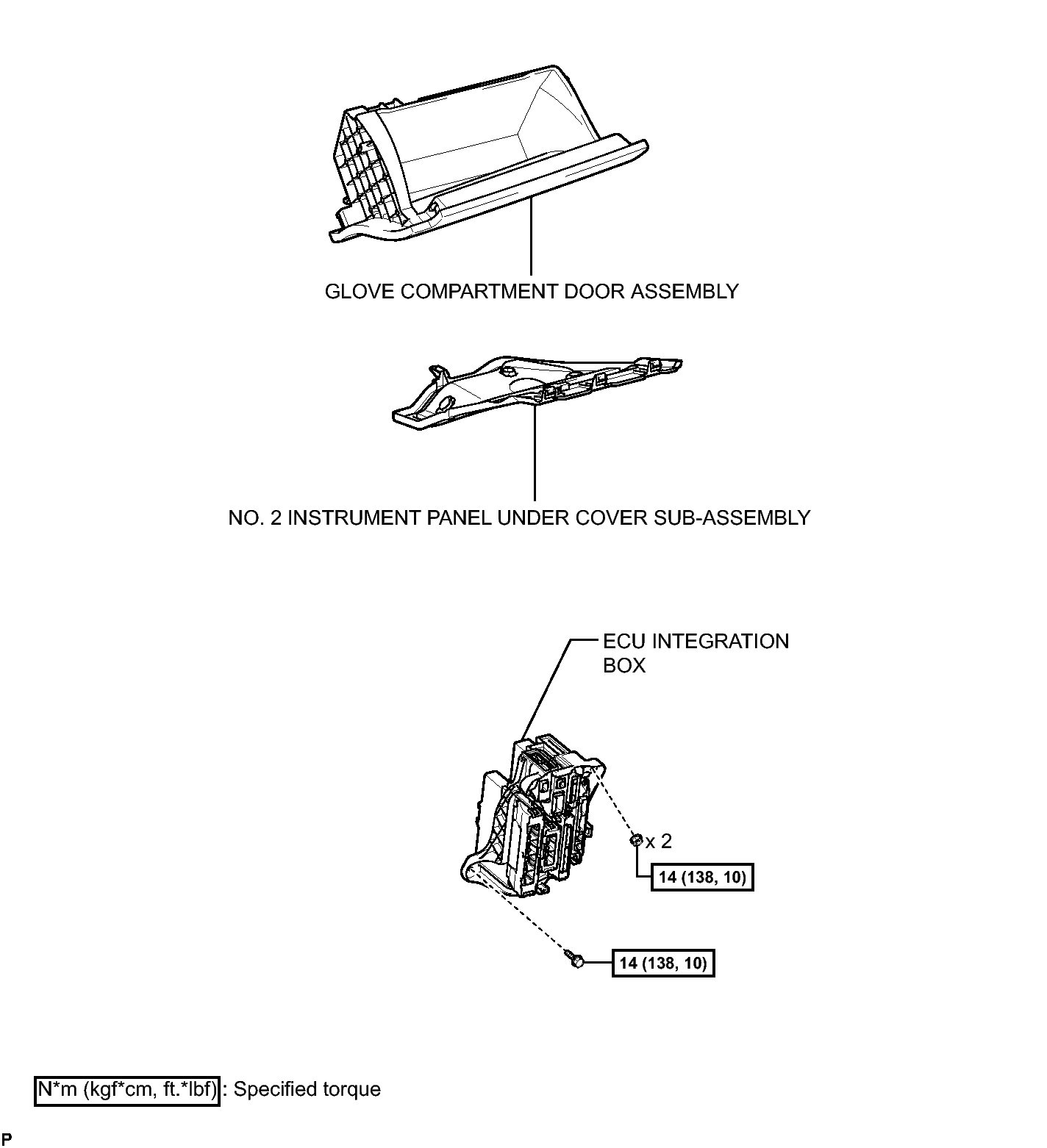

Fig 1: Identifying Power Management Control ECU Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Power Management Control ECU Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
