Components [10/2013 - ]: Illustration
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Identifying Rear Door Lock Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

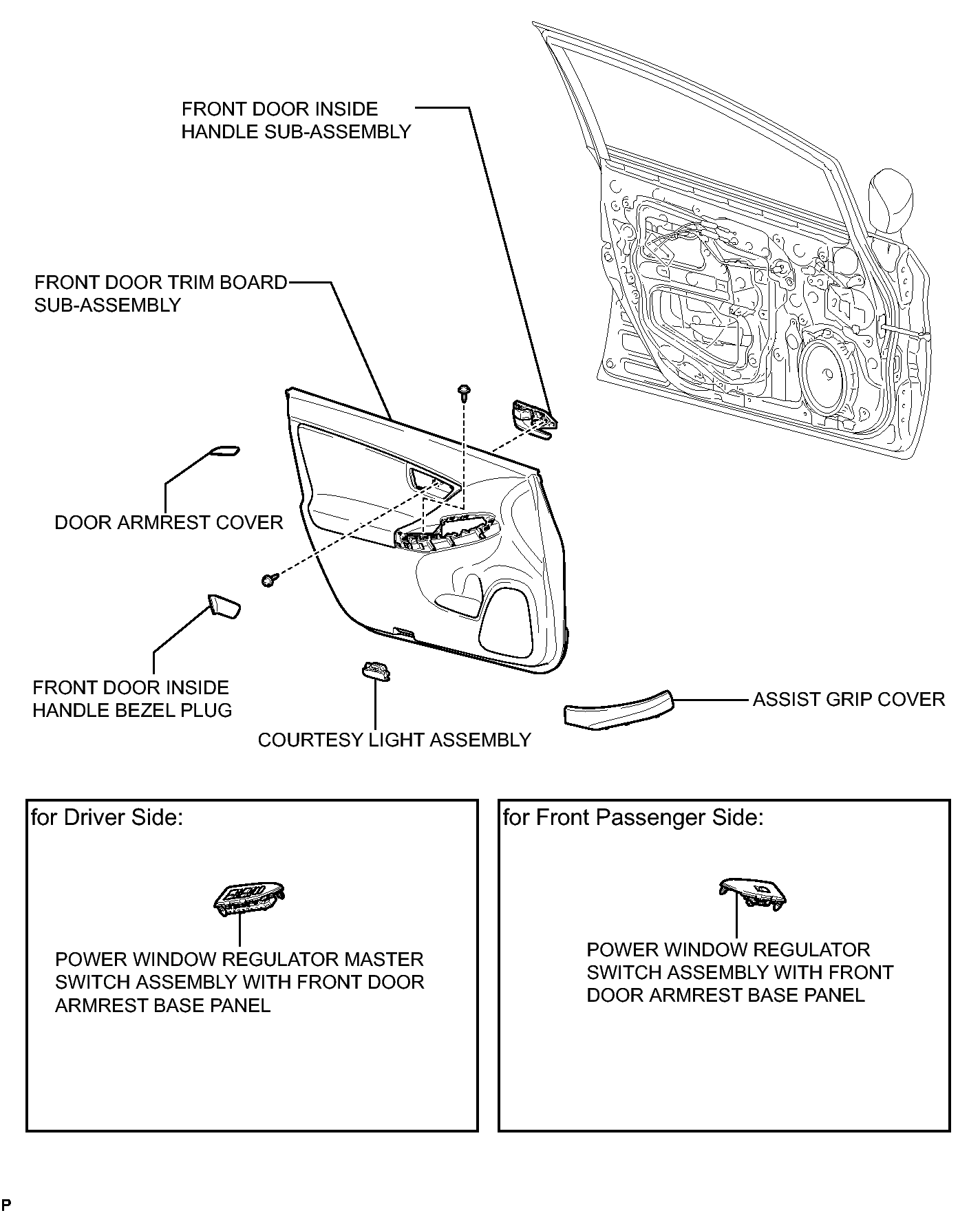

Fig 1: Identifying Power Window Regulator Motor Replacement Components (Front Door) (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

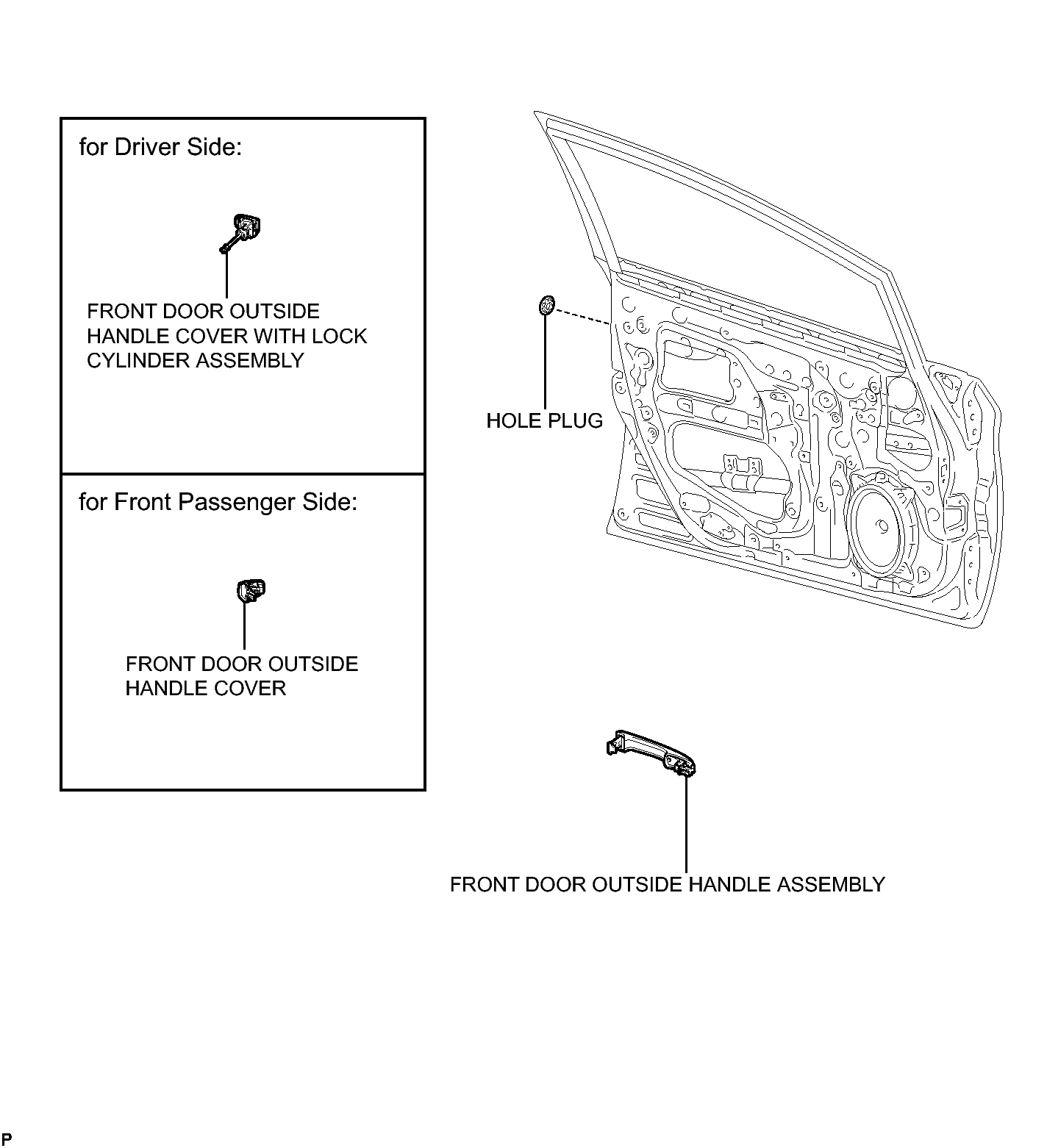

Fig 1: Identifying Front Door Lock Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Entry Lock And Unlock Switch Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
