System Description [10/2013 - ]

1. The dynamic radar cruise control system has two cruise control modes: constant speed control mode and vehicle-to-vehicle distance control mode.
   • Vehicle-to-vehicle distance control mode is always selected when starting the dynamic radar cruise control system.
   • Operation of constant speed control mode is the same as that for a conventional cruise control system.
2. This system maintains the vehicle at the speed that the driver has set, as long as there are no vehicles ahead. Then, the system maintains the vehicle distance that has been set by the driver. If the system detects a vehicle driving at a slower speed ahead while the driver is driving at a constant speed, it closes the throttle valve to decelerate. If further deceleration is required, the system controls the brake actuator in order to apply the brakes. Thereafter, if there are no vehicles ahead within the set vehicle-to-vehicle distance because either the vehicle ahead or the driver has changed lanes, the system accelerates slowly to reach the set vehicle speed and resumes driving at the constant speed.
3. Constant speed control mode is designed to maintain a constant cruising speed. The vehicle-to-vehicle distance control mode is designed to control cruising at a constant speed function, deceleration cruising function, follow-up cruising function, and acceleration cruising function.
4. The millimeter wave radar sensor and the driving support ECU control the system while the vehicle-to-vehicle distance control mode is operating, and send signals to each actuator and ECU.
5. In vehicle-to-vehicle distance control mode, the dynamic radar cruise control system receives signals from the yaw rate sensor and the steering angle sensor. Based on these signals, the system then estimates curve radius and compensates for information on the preceding vehicle while turning. It can also compensate using brake control when approaching another vehicle.
6. This system judges the presence of a vehicle in front and the distance to it based on the signals from the radar sensor while vehicle-to-vehicle distance control mode is in operating. Using this information, the system informs the driver of any danger with the warning buzzer, performs brake control, and turns on the stop light when approaching the vehicle in front.
7. The following illustration shows a control example under the following conditions: own vehicle speed is 100 km/h (62 mph) and the speed of the vehicle in front is 80 km/h (50 mph). Setting of the vehicle distance can be changed to 3 distances by operating the distance control switch (distance control switch): long (approximately 50 m (165 ft.)), middle (approximately 40 m (132 ft.)), and short (approximately 25 m (82 ft.)) when the vehicle speed is approximately 80 km/h (50 mph).

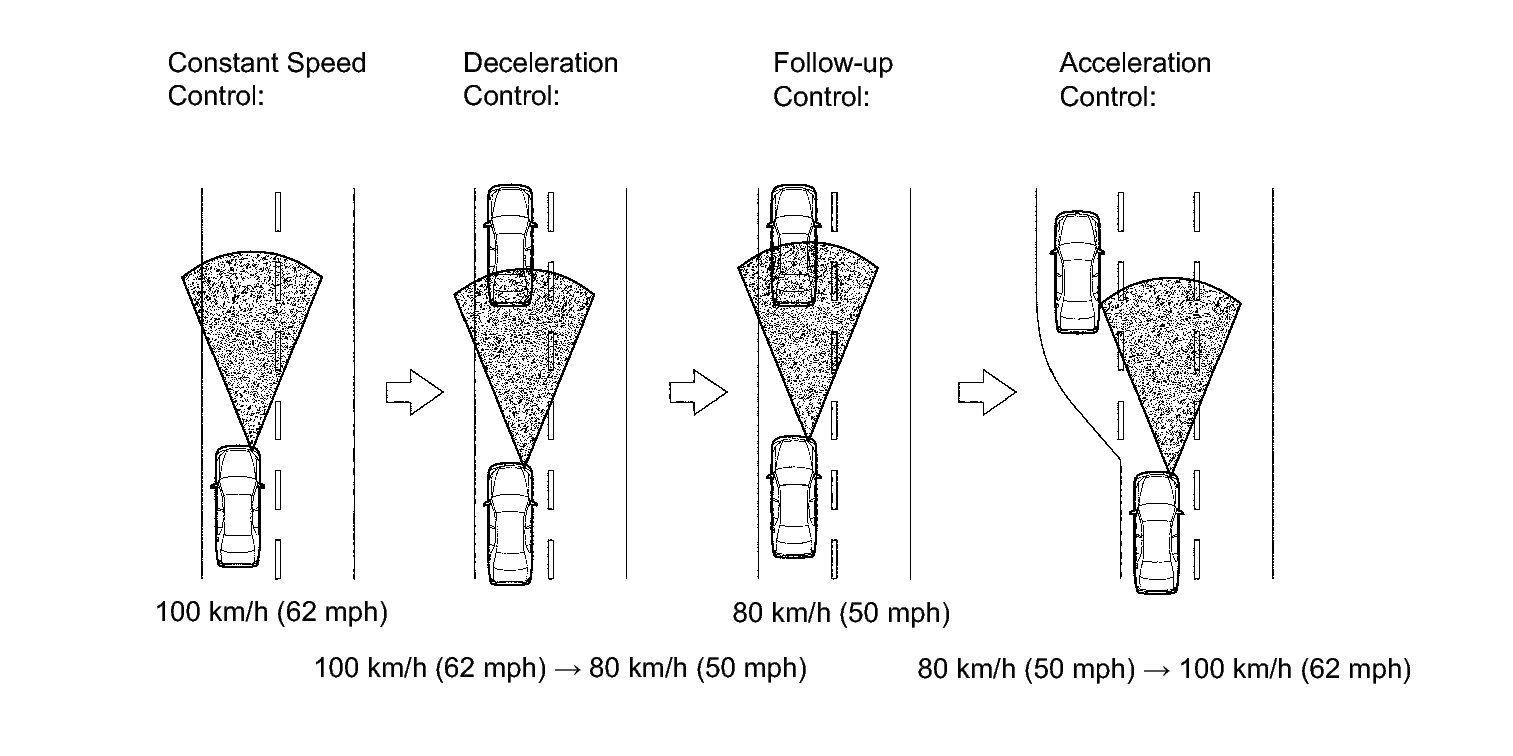

   Fig 1: View Of Vehicle-To-Vehicle Distance Control Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Vehicle distance increases and decreases in accordance with vehicle speed.
   • Controlling condition is indicated on the multi-information display in the combination meter.

1. Low speed limit

   The lowest possible limit of the speed setting range is set at approximately 50km/h (30 mph). The cruise control system cannot be set when the driving vehicle speed is below the low speed limit. Cruise control operation will be automatically canceled when the vehicle speed decreases below the low speed limit of approximately 40 km/h (25 mph) while the cruise control is operating.

2. High speed limit (constant speed control mode)

   The highest possible limit of the speed setting range is set at approximately 200 km/h (125 mph). The cruise control system will be set at the high speed limit when the cruise control is set and the vehicle speed is over the high speed limit. Also, + RES cannot be used to increase speed over the high speed limit.

3. High speed limit (vehicle-to-vehicle distance control mode)

   The highest possible limit of the speed setting range is set at approximately 170 km/h (105 mph).

The cruise control main switch operates 8 functions: SET, - (COAST), TAP-DOWN, RES (RESUME), + (ACCEL), TAP-UP, CANCEL, and MODE. The SET, TAP-DOWN, and - (COAST) functions, and the RES (RESUME), TAP-UP, and + (ACCEL) functions are operated with the same switch. The cruise control main switch is an automatic return type switch which turns on only while operating it in the direction of each arrow and turns off after releasing it. The dynamic radar cruise control system has two cruise control modes: the constant speed control mode and vehicle-to-vehicle distance control mode.

• The vehicle-to-vehicle distance control mode is always selected when starting up the dynamic radar cruise control system (cruise main indicator light and "RADAR READY" indicator comes on).

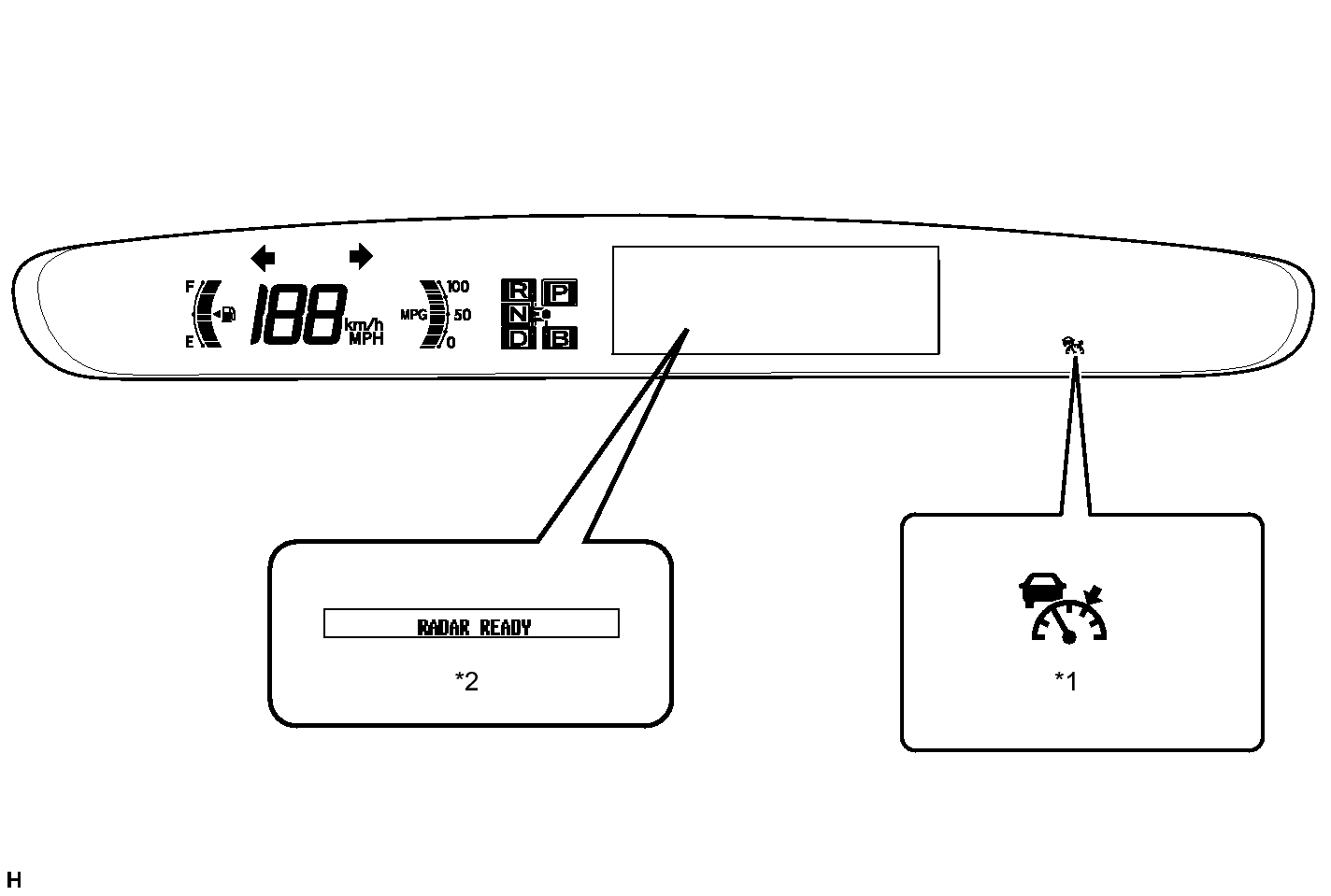

  Fig 2: Identifying Cruise Main Indicator Light & "RADAR READY" Indicator

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION



  *1

  Cruise Main Indicator Light (Vehicle-to-vehicle distance control mode)

  *2

  "RADAR READY" Indicator

• Operation of the constant speed control mode is the same as that for a conventional cruise control system.

1. MODE CONTROL

   Pushing the switch to MODE for more than 1 second while driving with the cruise control main switch ON-OFF button on ("RADAR READY" is on) switches the mode to constant speed control mode.

2. SET CONTROL (Constant speed control mode)

   The vehicle speed is stored and constant speed control is maintained when pushing the switch to - SET while driving with the vehicle speed within the set speed range (between the low and high speed limits) after pushing the cruise control main switch ON-OFF button on, and entering constant speed control mode (cruise main indicator light and "SET" indicator comes on).

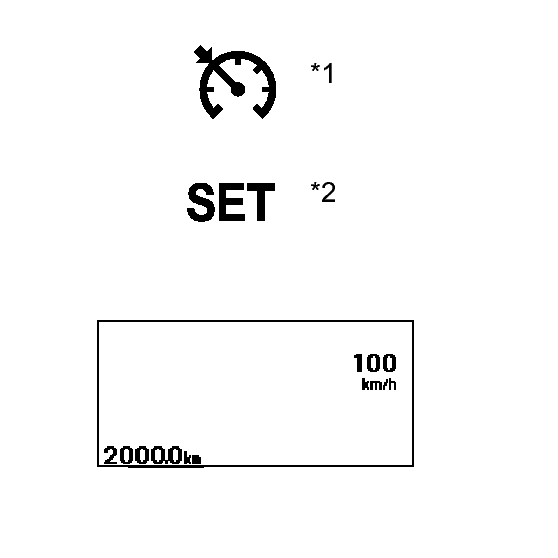

   TEXT IN ILLUSTRATION



   *1	Cruise Main Indicator Light (Constant speed control mode)
   *2	"SET" Indicator

   Fig 3: View Of Cruise Main Indicator Light & "SET" Indicator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. SET CONTROL (Vehicle-to-vehicle distance control mode)

   The vehicle speed is stored and vehicle-to-vehicle distance control is maintained when pushing the switch to - SET while driving with the cruise control main switch on ("RADAR READY" is on), and vehicle speed is within the set speed range (between the low and high speed limits) (cruise main indicator light and "SET" indicator comes on).

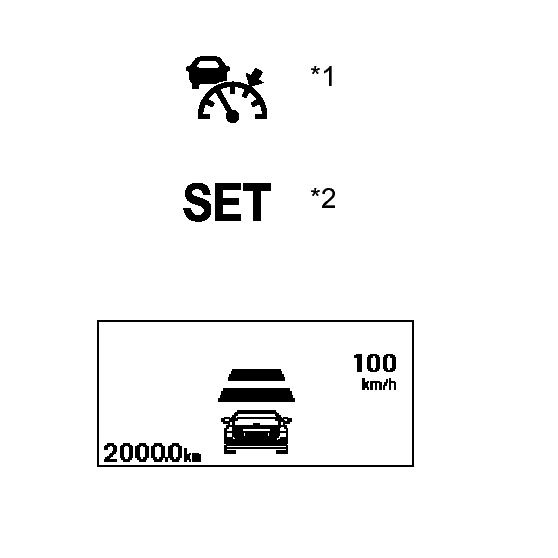

   TEXT IN ILLUSTRATION



   *1	Cruise Main Indicator Light (Vehicle-to-vehicle distance control mode)
   *2	"SET" Indicator

   Fig 4: View Of Cruise Main Indicator Light & "SET" Indicator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. - (COAST) CONTROL (Constant speed control mode)

   The power management control ECU decreases the cruise control demand speed and controls the engine and motor driving force to decelerate the vehicle when - SET on the cruise control main switch is pressed and held while the cruise control system is operating. When the cruise control main switch is released from - SET, vehicle speed is stored and constant speed control is maintained.

5. - (COAST) CONTROL (Vehicle-to-vehicle distance control mode)

   When the cruise control main switch is held to - SET while the cruise control system is operating, the stored vehicle speed decreases by approximately 5 km/h (5 mph) per second.

6. TAP-DOWN - (CONTROL) (Constant speed control mode)

   When tapping down the cruise control main switch to - SET (for approximately 0.6 seconds or less) while the constant speed control mode is operating, the stored vehicle speed decreases each time by approximately 1.6 km/h (1 mph). When the cruise control main switch is released from - SET and the difference between the driving and stored vehicle speeds is more than approximately 5 km/h (3 mph), the driving vehicle speed is stored and constant speed control is maintained.

7. TAP-DOWN CONTROL (Vehicle-to-vehicle distance control mode)

   When tapping down the cruise control main switch to - SET (for approximately 0.6 seconds or less) while the vehicle-to-vehicle distance control mode is operating, the stored vehicle speed decreases each time by approximately 1.6 km/h (1 mph).

8. + (ACCEL) CONTROL (Constant speed control mode)

   The power management control ECU increases the cruise control demand speed and controls the engine and motor driving force to accelerate the vehicle when + RES on the cruise control main switch is pressed and held while the cruise control system is operating.

   When the cruise control main switch is released from + RES, vehicle speed is stored and constant speed control is maintained.

9. + (ACCEL) CONTROL (Vehicle-to-vehicle distance control mode)

   When + RES on the cruise control main switch is pressed and held while vehicle-to-vehicle distance control mode is operating, the stored vehicle speed increases by approximately 5 km/h (5 mph) per second. Pushing the cruise control main switch to + RES while following the vehicle in front with the vehicle-to-vehicle distance control mode does not increase the actual vehicle speed, but changes only the set vehicle speed.

10. TAP-UP CONTROL (Constant speed control mode)

    When tapping up the cruise control main switch to + RES (approximately 0.6 seconds or less) while the constant speed control mode is operating, the stored vehicle speed increases each time by approximately 1.6 km/h (1 mph). However, when the difference between the driving and the stored vehicle speeds is more than 5 km/h (3 mph), the stored vehicle speed will not be changed.

11. TAP-UP CONTROL (Vehicle-to-vehicle distance control mode)

    When tapping up the cruise control main switch to + RES (for approximately 0.6 seconds or less) while vehicle-to-vehicle distance control mode is operating, the stored vehicle speed increases each time by approximately 1.6 km/h (1 mph).

12. MANUAL CANCEL CONTROL

    Performing any of the following cancels the cruise control system while it is operating (the stored vehicle speed in the driving support ECU is maintained).

    • Depressing the brake pedal
    • Moving the shift lever from D to any other posision
    • Pushing the cruise control main switch to CANCEL
    • Turning the cruise control main switch off (the stored vehicle speed in the driving support ECU is not maintained)
13. RES (RESUME) CONTROL

    If the cruise control operation was canceled by the stop light switch, CANCEL switch, or shift lever operation, and if driving speed is within the set speed range, pushing the cruise control main switch to + RES restores the vehicle speed memorized at the time of cancellation, and maintains constant speed control. In constant speed control mode, once the vehicle speed drops below the low speed limit, RESUME operation is possible after accelerating past the low speed limit and pushing the cruise control main switch to + RES.

The driving support ECU determines the distance to the vehicle in front, relative speed, target decreasing speed, and deceleration rate. Based on this data, the ECU transmits a brake demand signal to the brake booster with master cylinder (skid control ECU) via the driving support ECU.

This system has an automatic cancellation function (fail-safe). Refer to FAIL-SAFE CHART [10/2013 - ] .
