Removal [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

REMOVE THROTTLE BODY ASSEMBLY
Refer to REMOVAL [10/2013 - ]
REMOVE EGR PIPE ASSEMBLY . Refer to REMOVAL [10/2013 - ] - Step 9
REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR . Refer to REMOVAL [10/2013 - ] - Step 5
REMOVE PURGE VSV . Refer to REMOVAL [10/2013 - ] - Step 5
REMOVE INTAKE MANIFOLD
1. Disconnect the 3 connectors and 2 wire harness clamps.

  Fig 1: Identifying Intake Manifold, Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the engine oil level dipstick.
3. Disconnect the wire harness clamp, and then remove the 2 bolts and engine oil level dipstick guide sub-assembly.

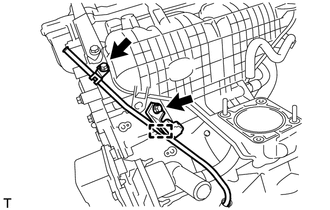

  Fig 2: Identifying Engine Oil Level Dipstick Guide Bolts & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the O-ring from the engine oil level dipstick guide sub-assembly.
5. Disconnect the fuel vapor feed hose and ventilation hose.

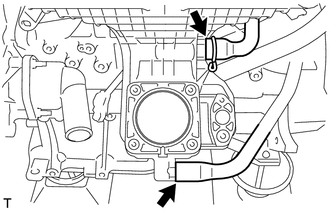

  Fig 3: Identifying Fuel Vapor Feed Hose & Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts, 2 nuts and intake manifold.

  Fig 4: Identifying Intake Manifold & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the No. 1 intake manifold to head gasket.
8. w/ Stud Bolt:
  1. Using an E6 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.

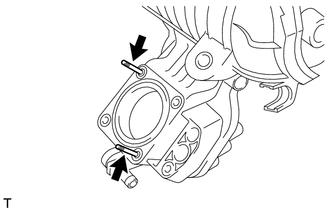

    Fig 5: Identifying Stud Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If a stud bolt is deformed or the threads are damaged, replace the stud bolt.
